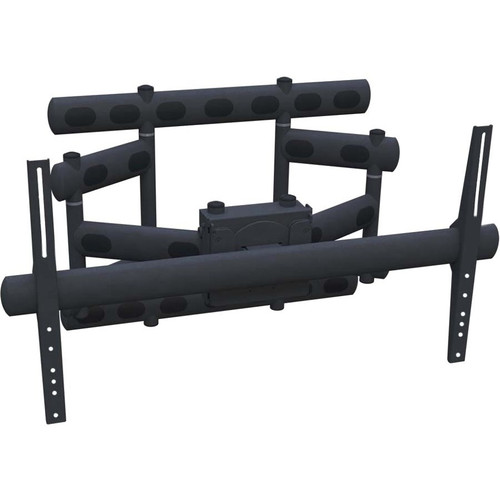

Premier Mounts AM500-U Articulating Mega Wall Mount for TV/Monitor - Black - 70" Screen Support - 500 lb Load Capacity
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This wall mount features a comprehensive VESA mounting pattern compatibility that accommodates 300x200mm through 900x600mm configurations. The articulating design allows for tilt, swivel, and extension adjustments to optimize viewing angles and workspace ergonomics.
Built with industrial-grade materials, the AM500-U maintains structural integrity under maximum load conditions. The mounting hardware includes reinforced brackets and secure fastening systems designed for both concrete and stud wall installations.
This section brings together practical product details such as Device Supported, Number of Displays Supported, Maximum Load Capacity, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The AM500-U combines exceptional load capacity with precise articulation control, making it suitable for demanding display installations where both security and flexibility are required.
Enhanced Stability
Engineered to support 500-pound displays without sagging or vibration, ensuring long-term reliability in high-traffic environments.
- Reinforced steel construction
- Distributed weight management
- Secure locking mechanisms
Flexible Positioning
Articulating arms provide tilt, swivel, and extension adjustments for optimal viewing angles in varied installation scenarios.
- Multi-directional movement
- Smooth adjustment controls
- Lockable positions
Deployment / Use Cases
This wall mount serves professional environments requiring secure display mounting with positioning flexibility. Its heavy-duty capacity makes it ideal for large-format displays in commercial applications.
Common deployments include digital signage in retail stores and airports, presentation displays in conference rooms, monitoring screens in control centers, and entertainment systems in hospitality venues. The extensive VESA compatibility ensures broad display model support across manufacturers.
Commercial Digital Signage
Secure mounting for large promotional or informational displays in high-traffic public spaces where reliability is essential.
Conference Room Presentations
Articulating design allows presenters to adjust screen angles for optimal visibility during meetings and collaborative sessions.
Physical Profile
The mount measures 41" wide by 22.80" high by 8.52" deep when installed, providing a substantial footprint for stable display support. The black powder-coated finish resists scratches and maintains appearance in commercial environments. Cable management channels help organize power and signal cables for clean installations.
- Width
- 41" (1041.40 mm)
- Depth
- 8.52" (216.41 mm)
- Height
- 22.80" (579.12 mm)
Highlights
- Supports displays up to 70 inches with 500 lb load capacity
- Articulating design for tilt, swivel, and extension adjustments
- Compatible with 16 VESA mounting patterns from 300x200mm to 900x600mm
- Black finish for professional appearance
- Heavy-duty steel construction for long-term reliability
- Suitable for both TV and monitor installations
- Includes cable management features
- RoHS compliant and environmentally friendly
- Manufactured in Taiwan with quality controls
- Backed by lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Premier Mounts |
| Manufacturer Part Number | AM500-U |
| Brand Name | Premier Mounts |
| Product Model | AM500-U |
| Product Name | Articulating Mega Wall Mount for Displays up to 500 lb./227 kg |
| Packaged Quantity | 1 |
| Product Type | Wall Mount |
| Product Information | |
| Device Supported | TV,Monitor |
| Number of Displays Supported | 1 |
| Maximum Load Capacity | 500 lb (226796.19 g) |
| Maximum Screen Size Supported | 70" |
| Physical Characteristics | |
| Product Color | Black |
| Mounting Pattern | 300 x 200,900 x 600,400 x 400,700 x 400,600 x 400,600 x 300,800 x 500,700 x 500,500 x 300,800 x 400,600 x 200,800 x 600,400 x 200,300 x 300,400 x 300,600 x 500 |
| Height | 22.80" (579.12 mm) |
| Width | 41" (1041.40 mm) |
| Depth | 8.52" (216.41 mm) |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum weight this wall mount can support?
The Premier Mounts AM500-U supports displays up to 500 pounds (226796.19 grams). This heavy-duty capacity makes it suitable for large-format commercial displays, digital signage, and substantial entertainment systems where secure mounting is critical.
What screen sizes are compatible with this mount?
This mount accommodates displays up to 70 inches diagonally. The extensive VESA pattern compatibility ensures proper fit for most large-format TVs and monitors within this size range, providing secure mounting for commercial and residential applications.
How many VESA mounting patterns does this mount support?
The AM500-U supports 16 different VESA mounting patterns, including 300x200mm, 400x400mm, 600x400mm, 800x600mm, and 900x600mm configurations. This broad compatibility ensures it works with most display models from various manufacturers.
Does this mount allow for screen adjustment after installation?
Yes, this is an articulating wall mount that provides tilt, swivel, and extension adjustments. You can position the display for optimal viewing angles and then lock it securely in place, making it ideal for conference rooms, control centers, and spaces requiring flexible viewing options.
