Aruba R4H19A AP-577 Outdoor Dual-Band 802.11ax Wireless Access Point - 4.80 Gbit/s - 2.40/5 GHz - Internal Antenna - PoE - 2x RJ-45 Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The AP-577 leverages the 802.11ax wireless standard, also known as Wi-Fi 6, to enhance network efficiency and capacity. It operates on dual-band frequencies—2.40 GHz and 5 GHz—delivering a combined wireless speed of up to 4.80 Gbit/s. Technologies such as MIMO (Multiple Input, Multiple Output) and beamforming improve signal reliability and range, while data encryption with WPA3 and WPA2-MPSK standards ensures secure communications.
Connectivity is handled through two RJ-45 network ports supporting Gigabit Ethernet and 2.5 Gigabit Ethernet, with one port capable of PoE (Power over Ethernet) for streamlined power and data delivery over a single cable. A USB port and a dedicated management port offer flexibility for peripheral connections and network administration. Bluetooth 5 support enables additional wireless capabilities for IoT integration or device pairing.
Relevant factors for this section include Wireless LAN Standard, Bluetooth Standard, Network Band, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Aruba AP-577 stands out with its outdoor durability and advanced Wi-Fi 6 features, designed to meet the needs of modern wireless networks. Its combination of high throughput, secure encryption, and flexible mounting options makes it a versatile solution for expanding wireless coverage in challenging environments.
Outdoor Resilience
Built for outdoor use, this access point withstands environmental factors, ensuring continuous operation in campuses, warehouses, or public spaces where indoor access points may not suffice.
- Weather-resistant design
- Suitable for harsh conditions
Enhanced Performance
With 802.11ax technology and 4.80 Gbit/s speed, it supports high-density client environments, reducing latency and improving overall network efficiency for applications like video streaming and VoIP.
- Wi-Fi 6 efficiency
- High-density support
Simplified Installation
PoE support allows for easy deployment without separate power sources, while multiple mounting options—flush, pole, or ceiling—adapt to various installation scenarios.
- PoE-powered
- Versatile mounting
Deployment / Use Cases
The AP-577 is ideal for outdoor wireless deployments that require robust performance and reliability. Its design caters to environments where traditional indoor access points fall short, offering extended coverage and durability.
Common use cases include enterprise campuses, where it provides seamless Wi-Fi across outdoor areas like courtyards and parking lots; industrial settings, such as warehouses or manufacturing plants, where it supports IoT devices and mobile equipment; and public venues, including parks or stadiums, ensuring connectivity for guests and staff. The access point's PoE capability and mounting flexibility simplify installation in these diverse scenarios, reducing infrastructure costs and maintenance efforts.
Campus Networking
Extend wireless coverage across university or corporate campuses, connecting outdoor spaces with high-speed internet for students, employees, and visitors.
Industrial IoT
Support wireless sensors, scanners, and mobile devices in warehouses or factories, leveraging dual-band performance and secure encryption for reliable data transmission.
Physical Profile

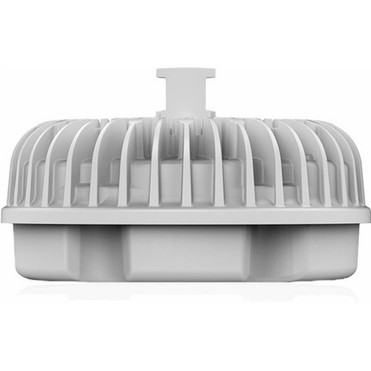

The AP-577 features a compact and durable form factor designed for outdoor mounting. With dimensions of 5.51" (140 mm) in height, 9.06" (230 mm) in width, and 8.66" (220 mm) in depth, it offers a low-profile installation that minimizes visual impact. Weighing approximately 4.63 lb (2100 g), it is lightweight yet sturdy, suitable for various mounting configurations including flush, pole, or ceiling setups. The internal antenna design contributes to its sleek appearance while maintaining optimal radio performance.
- Width
- 9.06" (230 mm)
- Depth
- 8.66" (220 mm)
- Height
- 5.51" (140 mm)
- Weight
- 4.63 lb (2100 g)
Highlights
- 802.11ax Wi-Fi 6 standard for enhanced network efficiency and capacity
- Dual-band operation with 2.40 GHz and 5 GHz frequencies
- Maximum wireless transmission speed of 4.80 Gbit/s
- Internal antennas with MIMO and beamforming technologies
- Two RJ-45 ports supporting Gigabit and 2.5 Gigabit Ethernet
- Power over Ethernet (PoE) support for simplified installation
- Outdoor-rated design for reliable performance in various environments
- Multiple mounting options: flush, pole, or ceiling
- Data encryption with WPA3 and WPA2-MPSK standards
- Bluetooth 5 compatibility for additional wireless connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R4H19A |
| Brand Name | HPE |
| Product Series | 570 |
| Product Model | AP-577 |
| Product Name | AP-577 Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | 802.11ax |
| Bluetooth Standard | Bluetooth 5 |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz,5 GHz |
| Indoor/Outdoor | Outdoor |
| Wireless Transmission Speed | 4.80 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3,WPA2-MPSK |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet,2.5 Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| USB | Yes |
| Management Port | Yes |
| Physical Characteristics | |
| Form Factor | Flush Mount,Pole-mountable,Ceiling Mountable |
| Antenna Form Factor | Internal |
| Height | 5.51" (140 mm) |
| Width | 9.06" (230 mm) |
| Depth | 8.66" (220 mm) |
| Weight (Approximate) | 4.63 lb (2100 g) |
User Manual
FAQ
What wireless standard does the Aruba AP-577 support?
The Aruba AP-577 supports the 802.11ax wireless standard, commonly known as Wi-Fi 6. This standard improves network efficiency, increases capacity, and reduces latency compared to previous generations like 802.11ac, making it suitable for high-density environments with multiple connected devices.
Is this access point suitable for outdoor use?
Yes, the AP-577 is designed for outdoor use. Its robust construction withstands environmental factors such as temperature variations and moisture, ensuring reliable operation in campus, industrial, or public outdoor settings where indoor access points may not be feasible.
Does the AP-577 support Power over Ethernet (PoE)?
Yes, the AP-577 includes a PoE PD (Power over Ethernet Powered Device) port. This allows it to receive both power and data over a single Ethernet cable, simplifying installation by eliminating the need for a separate power source near the mounting location.
How many network ports does the AP-577 have?
The AP-577 features two network (RJ-45) ports. These ports support Gigabit Ethernet and 2.5 Gigabit Ethernet technologies, providing flexible connectivity options for uplinks to switches or routers, with one port capable of PoE for streamlined deployment.
What mounting options are available for this access point?
The AP-577 offers versatile mounting options, including flush mount, pole-mountable, and ceiling mountable configurations. This flexibility allows it to be installed in various outdoor scenarios, such as on walls, poles, or ceilings, to optimize wireless coverage and integration with existing infrastructure.
What security features does the AP-577 include?
The AP-577 provides data encryption with support for WPA3 and WPA2-MPSK standards. These encryption protocols ensure secure wireless communications, protecting network traffic from unauthorized access and enhancing overall network security in enterprise or public deployments.
