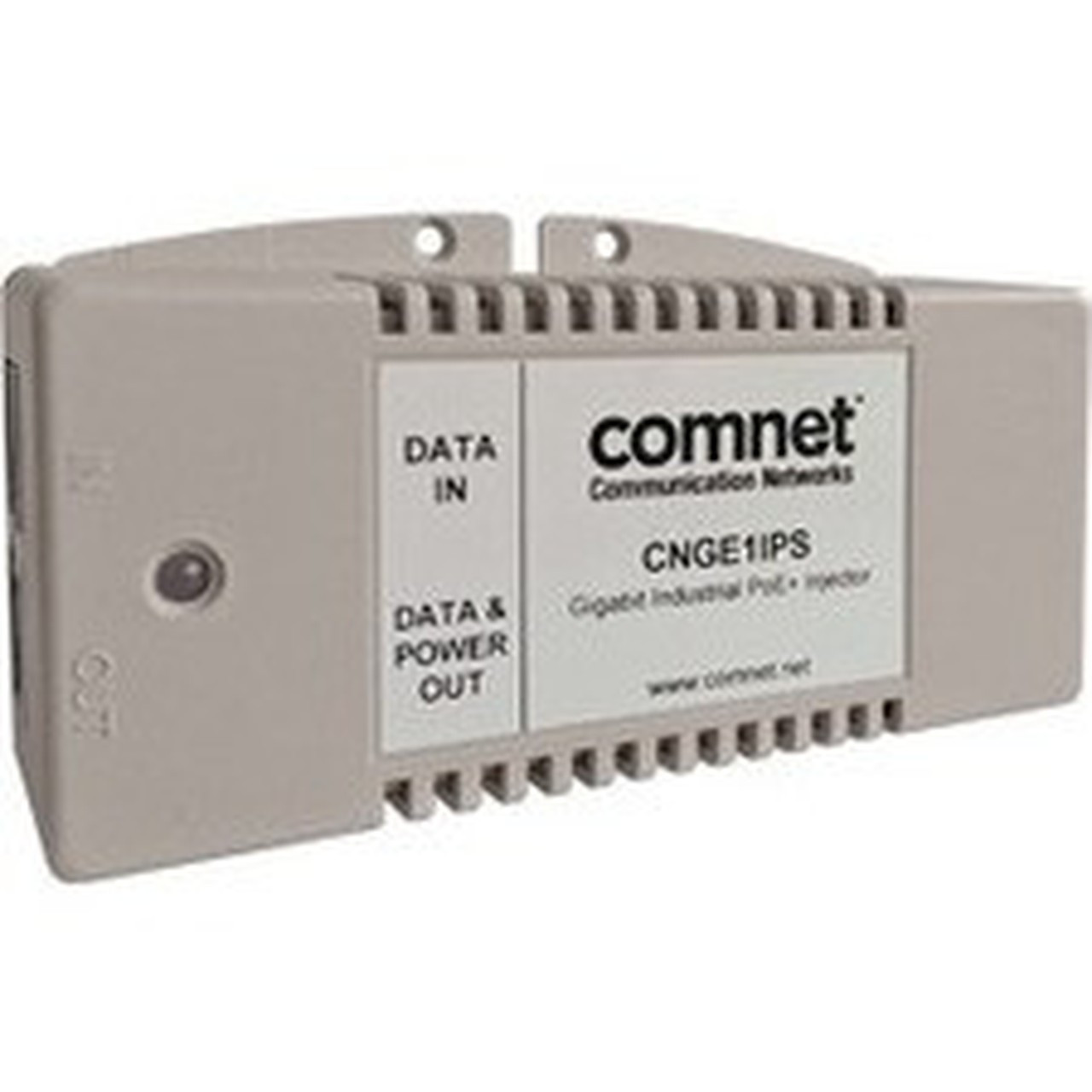

ComNet Power Over Ethernet (PoE+) Midspan Injector For 10/100/1000T(X) - 120 V AC, 230 V AC Input - 56 V DC, 625 mA Output - 1 x Input (CNGE1IPS)

Marketing Information: The ComNet™ CNGE1IPS is an industrial power over Ethernet (PoE+) midspan injection module that injects 56 VDC at 0.625 amperes to any network cable. Operating power and 10/100/1000T(X) Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling. The CNGE1IPS is fully compliant with the requirements of IEEE 802.3at for Power Sourcing Equipment (PSE), and features auto detection of powered devices (PDs). Transmission distances of up to 330 feet (100 meters) are supported, and this injector supplies operating power for all PDs drawing a maximum of 30 watts. The unit provides AC line and powered device over-voltage and short circuit protection. Ideally suited to fiber optic, wireless, or other networks where it may be difficult to furnish operating power to the PDs, the CNGE1IPS is a true plug-and-play product requiring no user configuration or other set-up.

Input Voltage: 120 V AC,230 V AC

Maximum Output Voltage: 56 V DC

Maximum Input Current: 750 mA

Maximum Output Current: 625 mA

Maximum Output Power: 30 W

Input Ports: 1 x 10/100/1000Base-T

Output Ports: 1 x 10/100/1000Base-T

Form Factor: External

Mount Type: DIN Rail/Wall Mountable

Height: 3" (76.20 mm)

Width: 4.90" (124.46 mm)

Depth: 1.50" (38.10 mm)

Package Contents:

• Power Over Ethernet (PoE+) Midspan Injector For 10/100/1000T(X)
• Power Supply
• DIN_Rail Mounting Adaptor Kit

Compatibility:

ComNet Products:

• NW1/NW2 (Industrially Hardened Point-to-Multipoint Wireless Ethernet Link)
• NW7[E] (Environmentally Hardened High Throughput Wireless Ethernet Device)
• NW8[E] (Environmentally Hardened Dual Radio Wireless Ethernet Device)
• IP CCTV Cameras
• Voice over IP (VoIP) Telephony Networks
• Wireless LAN Access Points
• IP Networks

Certifications & Standards:

• UL 1950
• CSA 22.2
• FCC Class B
• EN55022 Class B
• CE
• EN60950-1
• IEEE 802.3
• IEEE802.3u
• IEEE802.3ab
• IEEE802.3at

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 5 Year
