- Maintenance Bypass MBP30A5
- 6-ft. utility cord
- 3.3-ft. UPS cord
- 2 x Rackmount Brackets
- 4 x Flat Head Screws M4X8L
- 4 x Pan Head Screws M5X12L
- User Manual
- Registration Card
Marketing Information:

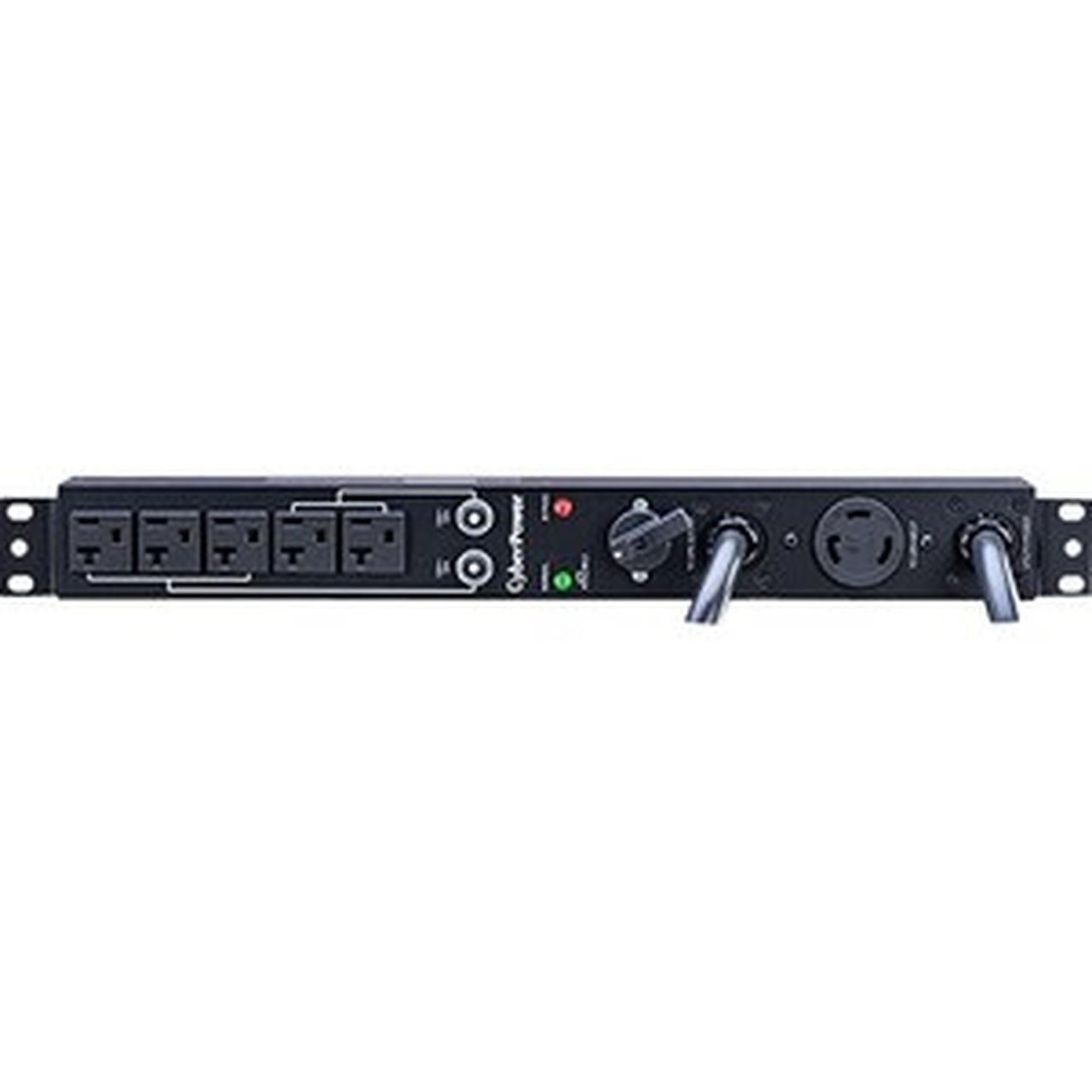

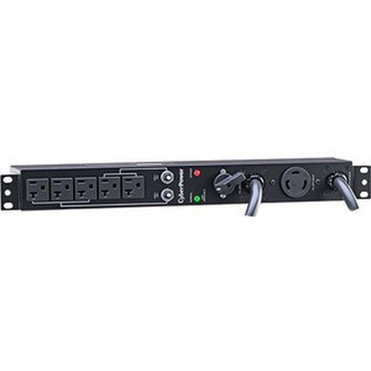

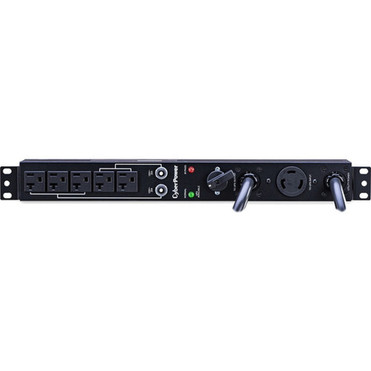

The CyberPower MBP30A5, a 5-outlet (rear), 1U Maintenance Bypass Power Distribution Unit (MBP PDU), provides 100-120 VAC 30A output (derated to 24A) to 5 NEMA 5-20R receptacles. Designed for datacenters and other electrically demanding applications, the MBP30A5 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS.
A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP30A5 through a dedicated NEMA L5-30R separate from the outlets for connected devices. When the switch on the front of the MBP30A5 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.
Rugged, industrial-grade metal housing protects the MBP30A5. With a 1U form factor, this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP30A5 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Maintenance Bypass
Qualified personnel can use the bypass feature to disconnect the PDU from the UPS without disrupting power to connected equipment. This feature allows connected equipment to operate seamlessly during maintenance periods, battery replacement, or UPS installation.
Manual Bypass Switch
When the Manual Bypass Switch is turned to Normal, connected equipment is supplied by UPS output. When the Manual Bypass Switch is turned to Bypass, connected equipment is supplied by utility power.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
1U Form Factor & Mounting Hardware
The 1U form factor is made to be mounted in a standard server rack. Mounting hardware allows the PDU to be connected to a UPS for tower configurations.
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU, 6-ft. utility cord, 3.3-ft. UPS cord, 2 Rackmount Brackets, 4 Flat Head Screws M4X8L, 4 Pan Head Screws M5X12L, User Manual, Registration Card
PDU Type: Hot-swappable
Phase: Single Phase
Plug/Connector Type: NEMA L5-30R
Plug/Connector Detail: 2 x NEMA L5-30R
Receptacle Type: NEMA 5-20R
Receptacle Detail: 5 x NEMA 5-20R
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Output Voltage: 120 V AC
Input Current: 30 A
Product Color: Black
Mount Type: Rack-mountable
Rack Height: 1U
Cord Length: 6 ft
Height: 2" (50.80 mm)
Width: 17" (431.80 mm)
Depth: 3" (76.20 mm)
Weight (Approximate): 2.68 kg
Package Contents:
Energy Star: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Maintenance Bypass PDU: Normal mode, Bypass mode
- Amps: 30A (Derated to 24A)
- Volts: 100 - 120 VAC
- Input plugs: 2 NEMA L5-30P plugs (utility, UPS output)
- Total outlets: 5 NEMA 5-20R
- Power cords: 6-ft. utility cord, 3.3-ft. UPS cord
- LED indicators: Normal (Green), Bypass (Red)
- Size: 1U Rackmount
- Dimensions (in.): 17.0W x 2.0H x 3.0D
- UPS mounting hardware: Yes
[custom-specifications]
Specifications | |
---|---|
Manufacturer | CyberPower Systems, Inc |
Manufacturer Part Number | MBP30A5 |
Manufacturer Website Address | https://www.cyberpowersystems.com/ |
Brand Name | CyberPower |
Product Series | Maintenance Bypass |
Product Model | MBP30A5 |
Product Name | Maintenance Bypass MBP30A5 |
Product Type | PDU | Technical Information |
PDU Type | Hot-swappable |
Phase | Single Phase |
Plug/Connector Type | NEMA L5-30R |
Plug/Connector Detail | 2 x NEMA L5-30R |
Receptacle Type | NEMA 5-20R |
Receptacle Detail | 5 x NEMA 5-20R | Power Description |
Input Voltage | 120 V AC |
Input Voltage Range | 100 V AC - 120 V AC |
Output Voltage | 120 V AC |
Input Current | 30 A | Physical Characteristics |
Product Color | Black |
Mount Type | Rack-mountable |
Rack Height | 1U |
Cord Length | 6 ft |
Height | 2" (50.80 mm) |
Width | 17" (431.80 mm) |
Depth | 3" (76.20 mm) |
Weight (Approximate) | 2.68 kg | Miscellaneous |
Package Contents |
|
Energy Star | No |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
Limited Warranty | 3 Year |
