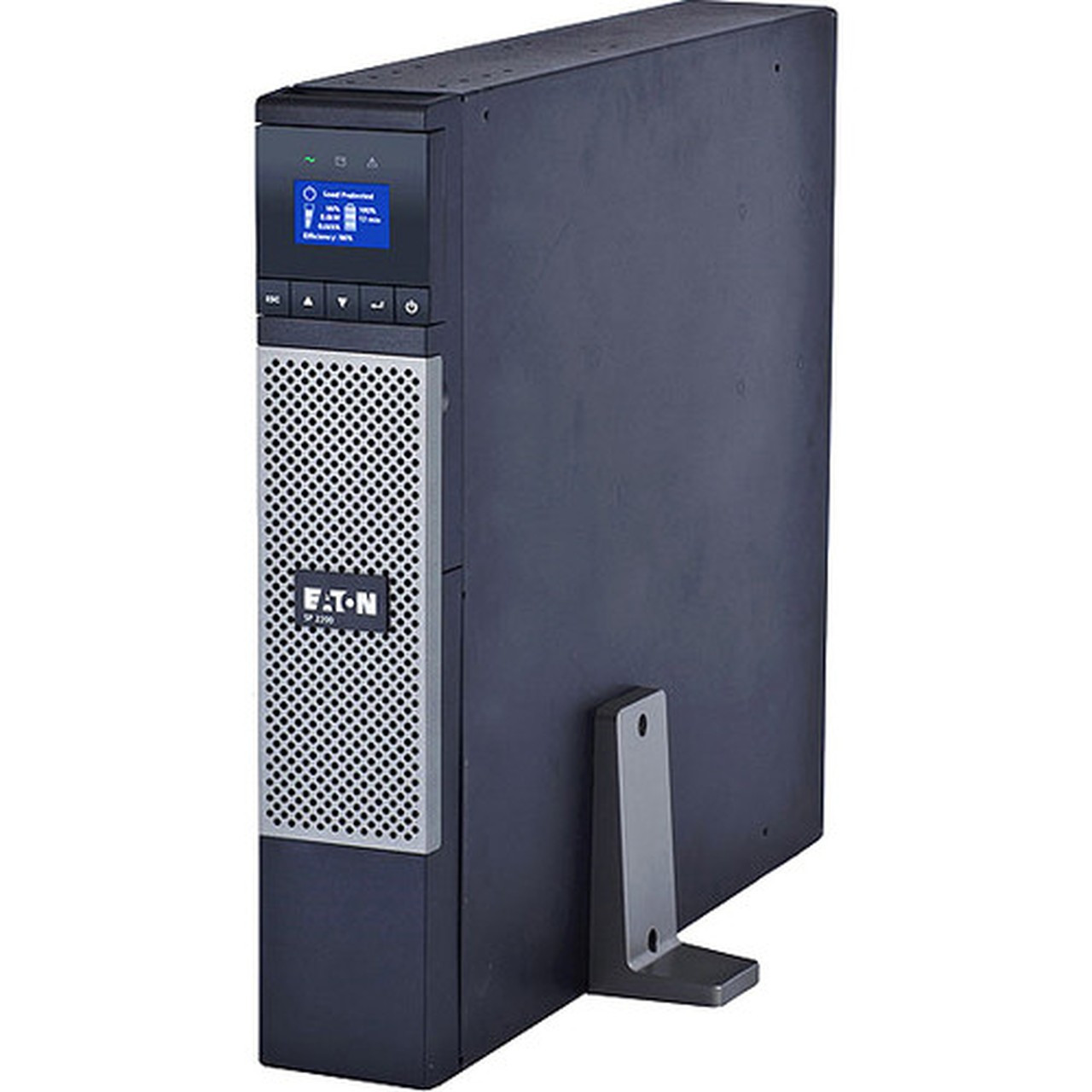

Eaton 5P 1950 VA Tower UPS - Tower - 3 Minute Stand-by - 110 V AC Input - 132 V AC Output - Serial Port - USB - 8 x NEMA 5-20R (5P2200)

Marketing Information:

1.95kVA/1.92kW/120V Battery Backup for Network Closets and Small Data Centers

This 5P line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P2200 protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA 5-20R Outlets Protect Your Connected Components

Eight managed 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

LCD Interface Keeps You Informed at a Glance

The five-button graphical LCD provides useful information about the UPS itself, load status,

events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment. By adding the optional RELAY-MS interface card (sold separately), a dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components.

Plug/Connector Type: NEMA 5-20P

Receptacle Type: NEMA 5-20R

Receptacle Detail: 8 x NEMA 5-20R

Transfer Time: 4 ms

Load Capacity (VA): 1.95 kVA

Load Capacity (Watt): 1.92 kW

Input Voltage: 110 V AC

Output Voltage: 132 V AC

Serial Port: Yes

USB: Yes

Battery Characteristics: Maintenance-free

Battery Chemistry: Lead Acid

Backup/Run Time (Full Load): 3 Minute

Backup/Run Time (Half Load): 9 Minute

Hot Swappable: Yes

Height: 3.39" (86 mm)

Width: 17.36" (441 mm)

Depth: 20.55" (522 mm)

Form Factor: Tower

Weight (Approximate): 29.48 kg

Package Contents:

• 5P 1950 VA Tower UPS
• User Manual CD
• Tower Pedestals
• Intelligent Power Software Suite CD
• Quick Start Guide
• RS-232 Serial Cable
• USB Cable
• Phillips Head Screw Driver

Software Included: Eaton Intelligent Power Software Suite

Country of Origin: Philippines

Limited Warranty: 3 Year
