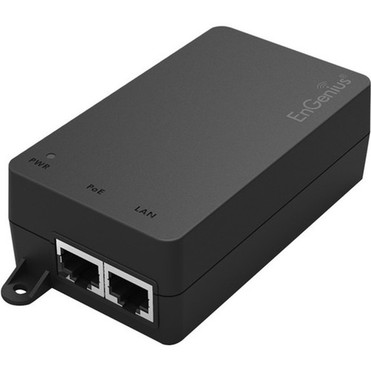

EnGenius Passive 54V Gigabit Single Port PoE Adapter - 110 V AC, 220 V AC Input - 1 Gigabit Ethernet Input Port(s) - 1 Gigabit Output (EPA5006GP)

Marketing Information: EnGenius PoE Adapter is easily to power and to network over Ethernet for increasing scalability and reducing installation time and cost.
EPA series is a single-port Power over Ethernet (PoE) adapter for use with gigabit system. The ideal solution could assist installers to solve the limitation in designing networks is the availability of power source. The EnGenius PoE adapter allows delivery of both data and power to an Passive 54V- compatible Access Point or device over a single Ethernet cable, allowing deployment of them exactly when users needed to provide the best wireless coverage and at much lower installation cost.

Outdoor Networking Facility and Low Port Density Installations
The EPA5006GP PoE adapter is Passive 54V, with disconnect, short -circuit and overload protection to assure the securable and reliable connection for Access Points or other PoE devices. By sending maximum 54V/0.6A output, Ethernet terminals which need more power such as wireless LAN high power device, IP media center, and web camera are powered remotely.

Protection Type: Over Voltage,Overload Protection

Input Voltage: 110 V AC,220 V AC

Maximum Input Current: 800 mA

Maximum Output Power: 32.80 W

Input Ports: 1 x Gigabit Ethernet

Output Ports: 1 x Gigabit Ethernet

Form Factor: External

Mount Type: Wall Mountable

Height: 1.31" (33.40 mm)

Width: 2.30" (58.40 mm)

Depth: 3.94" (100 mm)

Package Contents:

• Passive 54V Gigabit Single Port PoE Adapter
• Anchors
• Screws

Country of Origin: Taiwan

Limited Warranty: 1 Year
