- Convert Fiber to Ethernet: Designed to convert 1000BASE-SX/LX fiber to 1000Base-T copper media or vice versa.
- Versatile Compatibility: Works with both single-mode and multi-mode fiber SFP modules and is fully compatible with 10/100/1000 Base-T Ethernet connections.
- Easy to Use: Plug and play with no software installation or configuration needed.

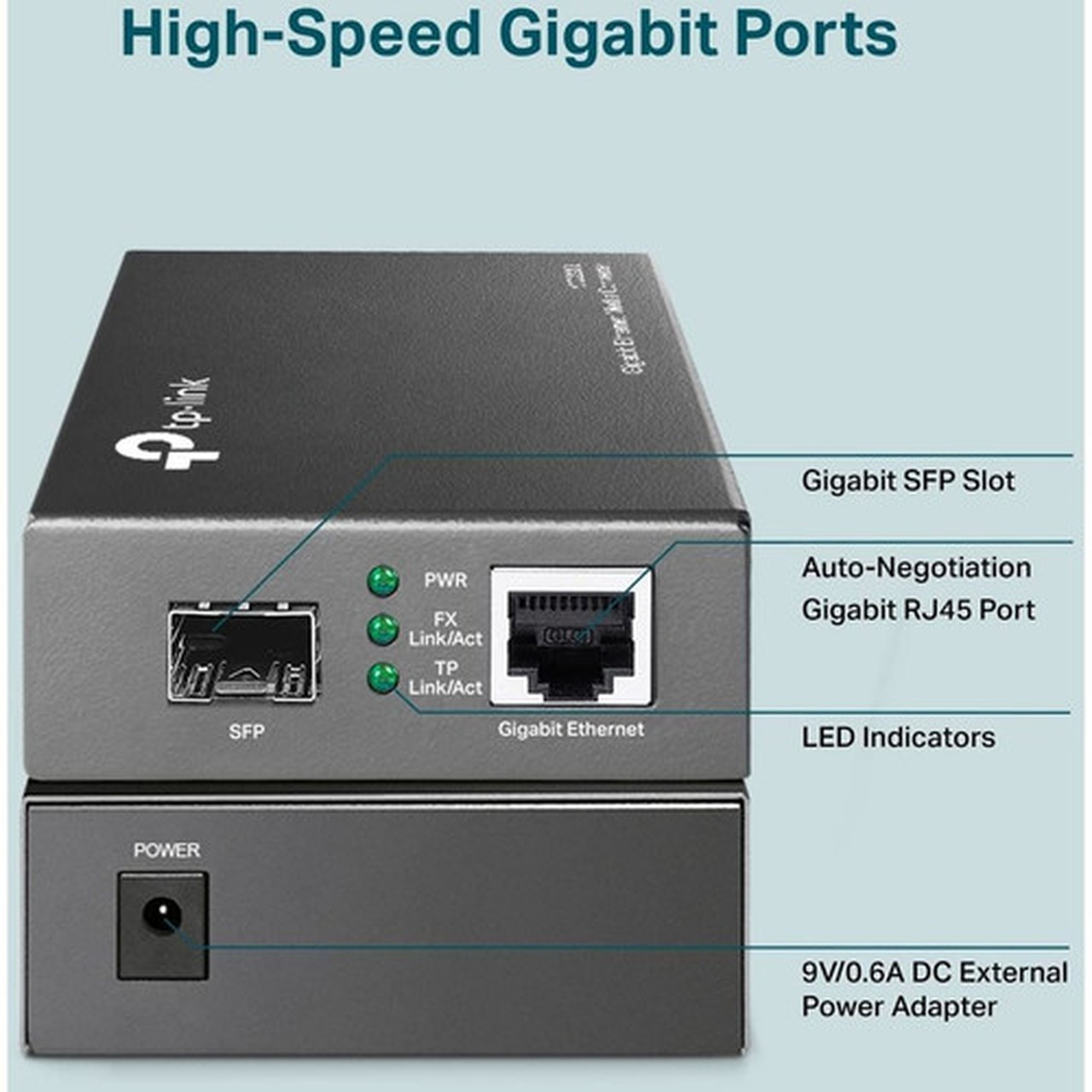

- Auto-Negotiation Gigabit Connection: Auto-negotiation RJ45 port supports Half-Duplex/Full-Duplex transfer mode and auto-MDI/MDIX.
- Long-Range Transmission: When used with different types of SFP modules, the Hot-Swappable FX Port extends fiber distance up to 12.4miles (20km) for Single-Mode transmission and 1,800 feet (550m) for Multi-Mode transmission.
- Marketing Information:

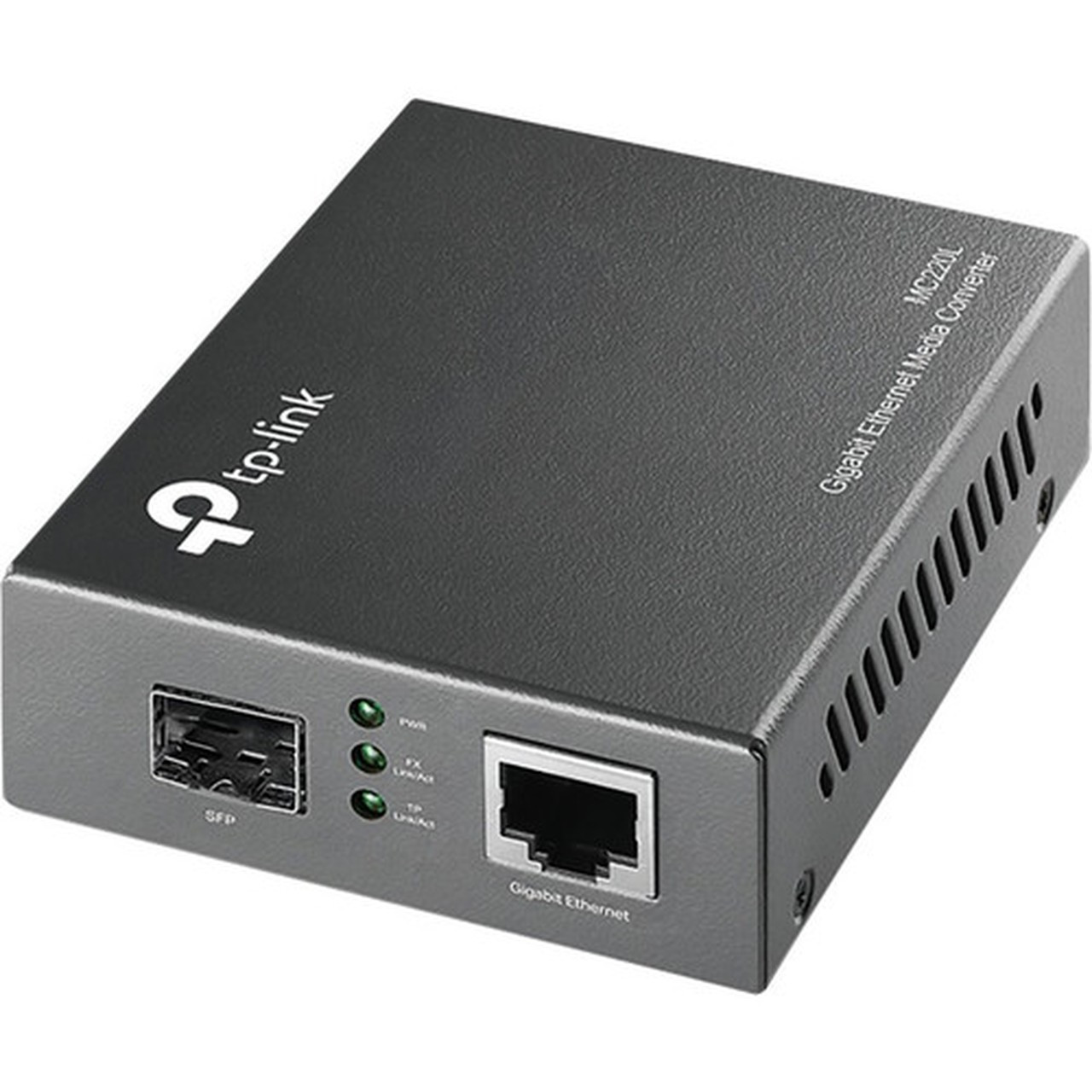

- MC220L Gigabit Ethernet Media Converter
- Power Adapter
- Installation Guide
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Total Number of Ports: 1Network (RJ-45): YesNumber of Network (RJ-45) Ports: 1Number of Total Expansion Slots: 1Expansion Slot Type: SFPNumber of SFP Slots: 1Ethernet Technology: Gigabit EthernetNetwork Technology: 1000Base-TPower Source: Power AdapterPower Consumption: 1.70 WForm Factor: ExternalHeight: 1.10" (27.94 mm)Width: 3.70" (93.98 mm)Depth: 2.90" (73.66 mm)Package Contents:[custom-specifications]
Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: MC220L
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: MC220L
Product Name: MC220L Gigabit Ethernet Media Converter
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
I/O Expansions
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T
Power Description
Power Source: Power Adapter
Power Consumption: 1.70 W
Physical Characteristics
Form Factor: External

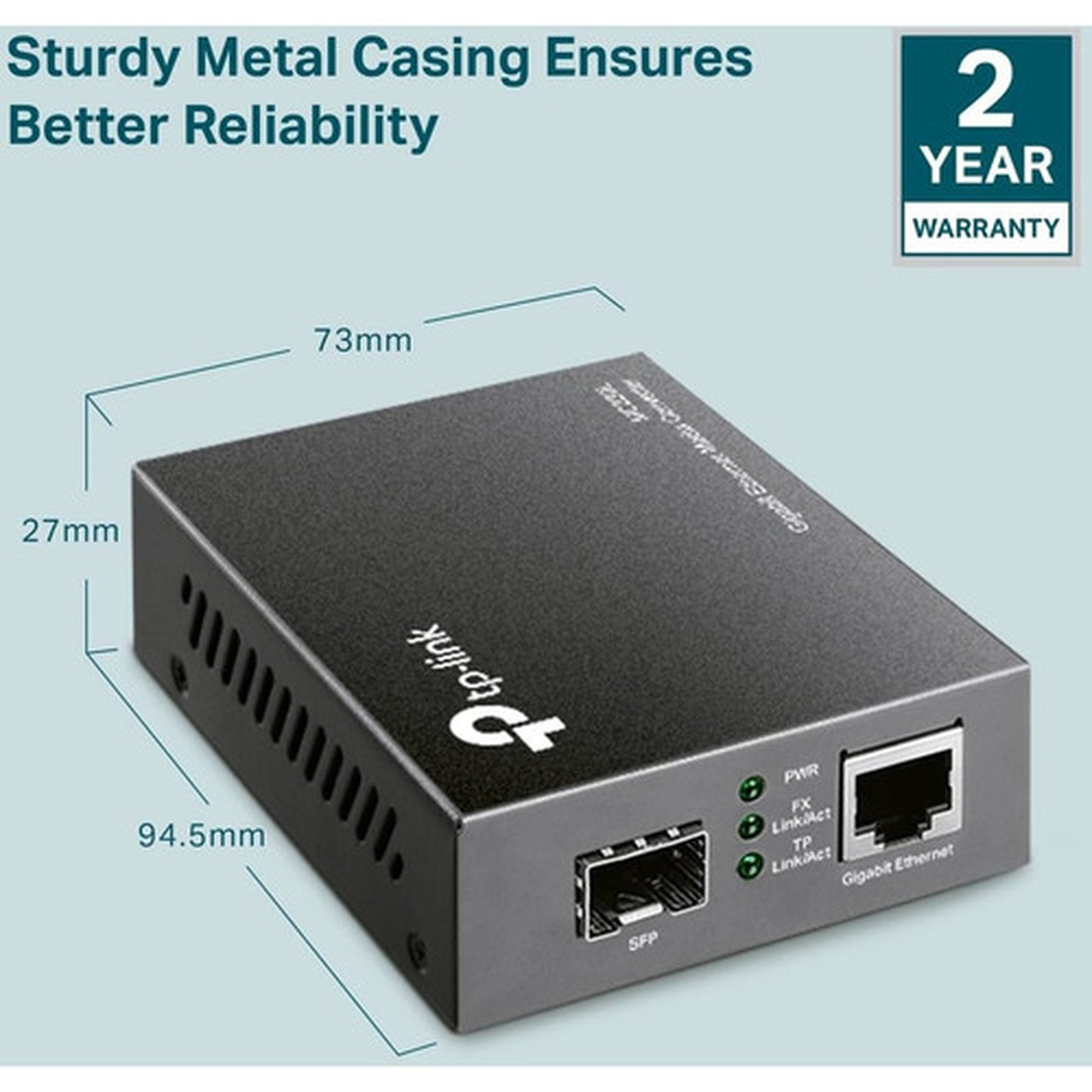

Height: 1.10" (27.94 mm)
Width: 3.70" (93.98 mm)
Depth: 2.90" (73.66 mm)
Miscellaneous
Package Contents:
Environmentally Friendly: Yes
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: MC220L
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: MC220L
Product Name: MC220L Gigabit Ethernet Media Converter
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
I/O Expansions
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T
Power Description
Power Source: Power Adapter
Power Consumption: 1.70 W
Physical Characteristics
Form Factor: External
Height: 1.10" (27.94 mm)
Width: 3.70" (93.98 mm)
Depth: 2.90" (73.66 mm)
Miscellaneous
Package Contents:
- MC220L Gigabit Ethernet Media Converter
- Power Adapter
- Installation Guide
Environmentally Friendly: Yes
