Product Features
Technical Overview
This AC1200 access point features a robust technical foundation with four internal antennas supporting MIMO and beamforming technologies. These technologies work together to enhance signal strength, coverage, and reliability by focusing wireless signals toward connected devices rather than broadcasting uniformly in all directions.
The device operates on both 2.4 GHz and 5 GHz frequency bands simultaneously, with band steering capability that automatically directs compatible devices to the less congested 5 GHz band. This intelligent traffic management helps alleviate network congestion and maintains consistent performance even in dense wireless environments.
Relevant factors for this section include Wireless LAN Standard, Frequency Band, Total Number of Antennas, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TEW-821DAP access point combines enterprise-grade features with straightforward deployment, making it an ideal solution for expanding wireless coverage without complex infrastructure changes.
Multiple Operation Modes
Supports Access Point, Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes for each WiFi band independently, providing flexibility for various network topologies and deployment scenarios.
- AP mode for standard wireless access
- Client mode for wireless bridging
- Repeater mode for extending coverage
Advanced Management Features
Includes QoS for traffic prioritization, advanced access control, traffic management, and captive portal support for creating secure guest networks or hotspot applications.
- QoS for bandwidth management
- Captive portal for guest access
- Traffic monitoring and control
Controller Compatibility
Works seamlessly with TRENDnet's TEW-WLC100 and TEW-WLC100P wireless controllers for centralized management of multiple access points across larger deployments.
- Centralized configuration
- Unified monitoring
- Scalable management
Deployment / Use Cases
The TEW-821DAP is designed for indoor environments where reliable wireless connectivity is essential but infrastructure limitations exist. Its compact form factor and ceiling-mount capability make it particularly suitable for offices, retail spaces, and educational facilities where discreet installation is preferred.
In business settings, this access point can serve as a primary wireless solution for small offices or as a coverage extension in larger facilities. The repeater and client bridge modes enable network expansion without running additional Ethernet cables, while the gigabit PoE support simplifies installation by delivering both data and power over a single cable when used with compatible PoE switches or injectors.
Office Wireless Coverage
Deploy as a primary access point in small to medium offices, providing dual-band connectivity for employee devices, VoIP phones, and IoT equipment with advanced traffic management features.

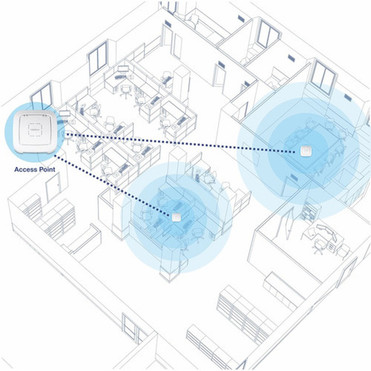

Network Extension Solution
Use in repeater or client bridge mode to extend existing wireless networks into areas with poor coverage, such as conference rooms, warehouses, or remote office sections.
Physical Profile
The access point features a compact white enclosure measuring 2 inches in height, 3 inches in width, and 5 inches in depth, with a weight of approximately 6.60 ounces. This low-profile design minimizes visual impact when ceiling-mounted in office environments. The unit includes a dedicated mounting bracket with cable guard for secure installation and neat cable management.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2" (50.80 mm), 3" (76.20 mm), 5" (127 mm), 6.60 oz (187.11 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3" (76.20 mm)
- Depth
- 5" (127 mm)
- Height
- 2" (50.80 mm)
- Weight
- 6.60 oz (187.11 g)
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- AC1200 dual-band WiFi with 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
- MU-MIMO technology for simultaneous multi-device processing
- Four internal antennas with beamforming for improved coverage
- Gigabit PoE LAN port for simplified installation
- Six operation modes including AP, Client, WDS, and Repeater
- Band steering automatically directs devices to optimal frequency
- Compatible with TRENDnet wireless controllers for centralized management
- Low-profile white design with ceiling mounting bracket included
- Advanced features: QoS, traffic management, captive portal support
- TAA compliant and backed by 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEW-821DAP |
| Brand Name | TRENDnet |
| Product Model | TEW-821DAP |
| Product Name | AC1200 Dual Band PoE Access Point (with software controller) |
| Product Condition | New |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11ac |
| Frequency Band | 2.40 GHz,5 GHz |
| Total Number of Antennas | 4 |
| Number of Internal Antennas | 4 |
| Wireless Transmission Speed | 1.17 Gbit/s |
| MIMO Technology | Yes |
| Beamforming Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WEP,WPA,WPA-PSK,WPA2-PSK,WPA2 |
| Interfaces/Ports | |
| Ethernet Technology | Ethernet,Fast Ethernet,Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| PoE (RJ-45) Port | No |
| VGA | No |
| HDMI | No |
| USB | No |
| Powerline | No |
| Management Port | No |
| Physical Characteristics | |
| Product Color | White |
| Form Factor | Ceiling Mountable |
| Height | 2" (50.80 mm) |
| Width | 3" (76.20 mm) |
| Depth | 5" (127 mm) |
| Weight (Approximate) | 6.60 oz (187.11 g) |
| Miscellaneous | |
| Package Contents | AC1200 Dual Band PoE Access Point (with Software Controller) 5 ft. (1.5 m) Network Cable CD-ROM (Utility and User's Guide) Quick Installation Guide Power Adapter (12 V DC, 1 A) Mounting Bracket |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What wireless standards does this access point support?
The TRENDnet TEW-821DAP supports the IEEE 802.11ac standard, which is the latest generation of WiFi technology. It operates on both 2.4 GHz and 5 GHz frequency bands simultaneously, providing backward compatibility with older 802.11n devices while delivering faster speeds on the 5 GHz band for compatible devices.
Does this access point support Power over Ethernet (PoE)?
Yes, this access point features a gigabit PoE LAN port that supports Power over Ethernet. This allows the device to receive both data and power over a single Ethernet cable when connected to a compatible PoE switch or injector, simplifying installation by eliminating the need for a separate power outlet near the mounting location.
What mounting options are available for this access point?
The access point is designed for ceiling mounting and includes a dedicated mounting bracket with cable guard. The low-profile white housing blends discreetly into office environments, and the compact dimensions (2"H × 3"W × 5"D) make it suitable for installation in drop ceilings or directly on ceiling surfaces where wireless coverage is needed.
How many operation modes does this access point support?
This access point supports six distinct operation modes: Access Point (AP), Client, WDS AP, WDS Bridge, WDS Station, and Repeater. These modes can be configured independently for each WiFi band, providing flexibility for various network topologies including wireless bridging, network extension, and standard access point deployment.
What management features are included with this access point?
The access point includes advanced management features such as Quality of Service (QoS) for traffic prioritization, band steering to automatically direct devices to optimal frequencies, traffic management tools, advanced access control, and captive portal support for creating secure guest networks or public hotspots. It's also compatible with TRENDnet's wireless controllers for centralized management.
What is the warranty coverage for this product?
TRENDnet provides a 3-year limited warranty for the TEW-821DAP access point. The product is TAA compliant, meeting U.S. and Canadian government procurement requirements. Manufacturer documentation and support resources are available through the included CD-ROM and online resources for the duration of the warranty period.
