- When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
- With IEEE 802.11n standard and up to 300 Mbit/s data transfer rates, this wireless access point enables efficient network performance
- Link your Wi-Fi traffic to your wired network with Fast Ethernet port
- With PoE Port, transfer data and power from a single cable to places where a power outlet is not present

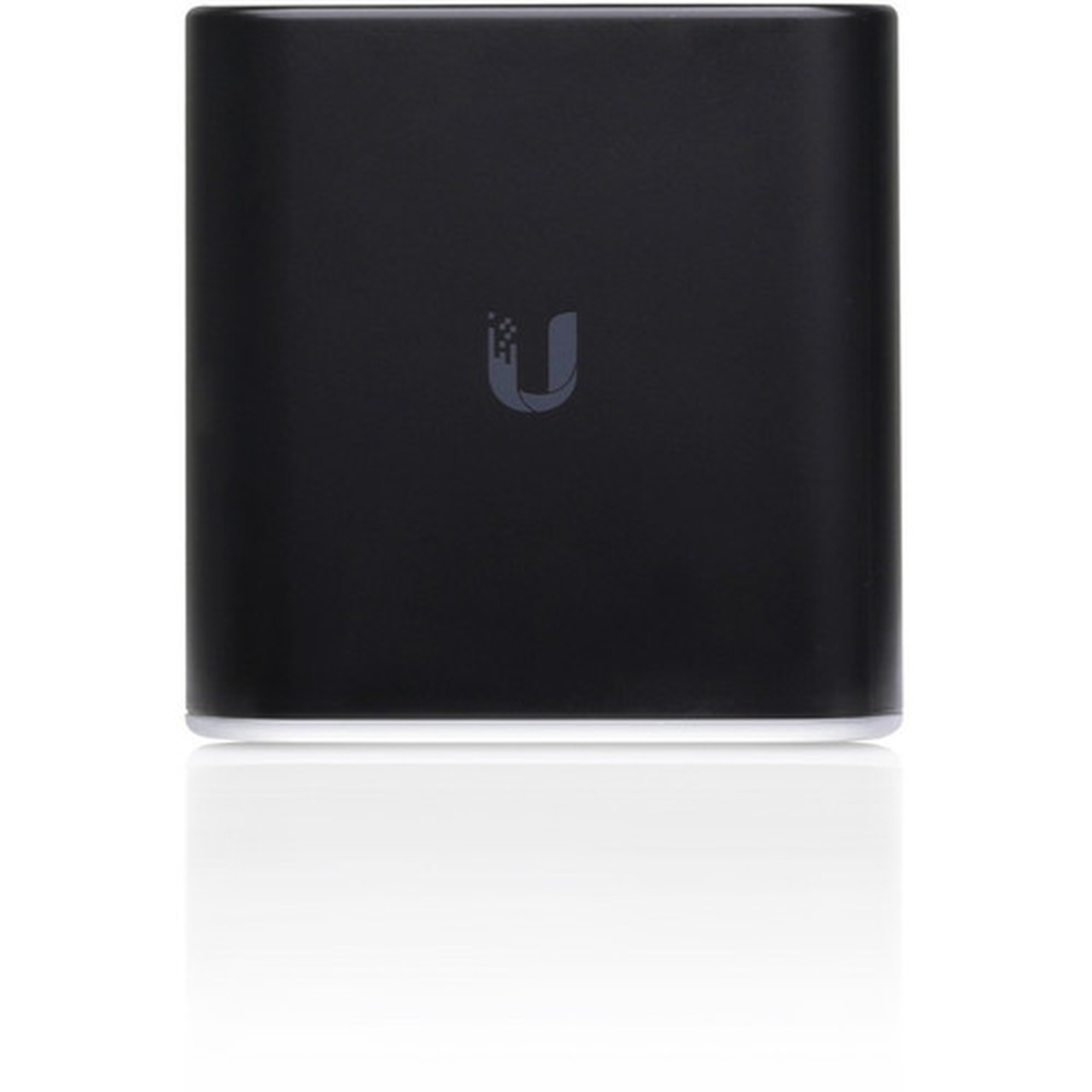

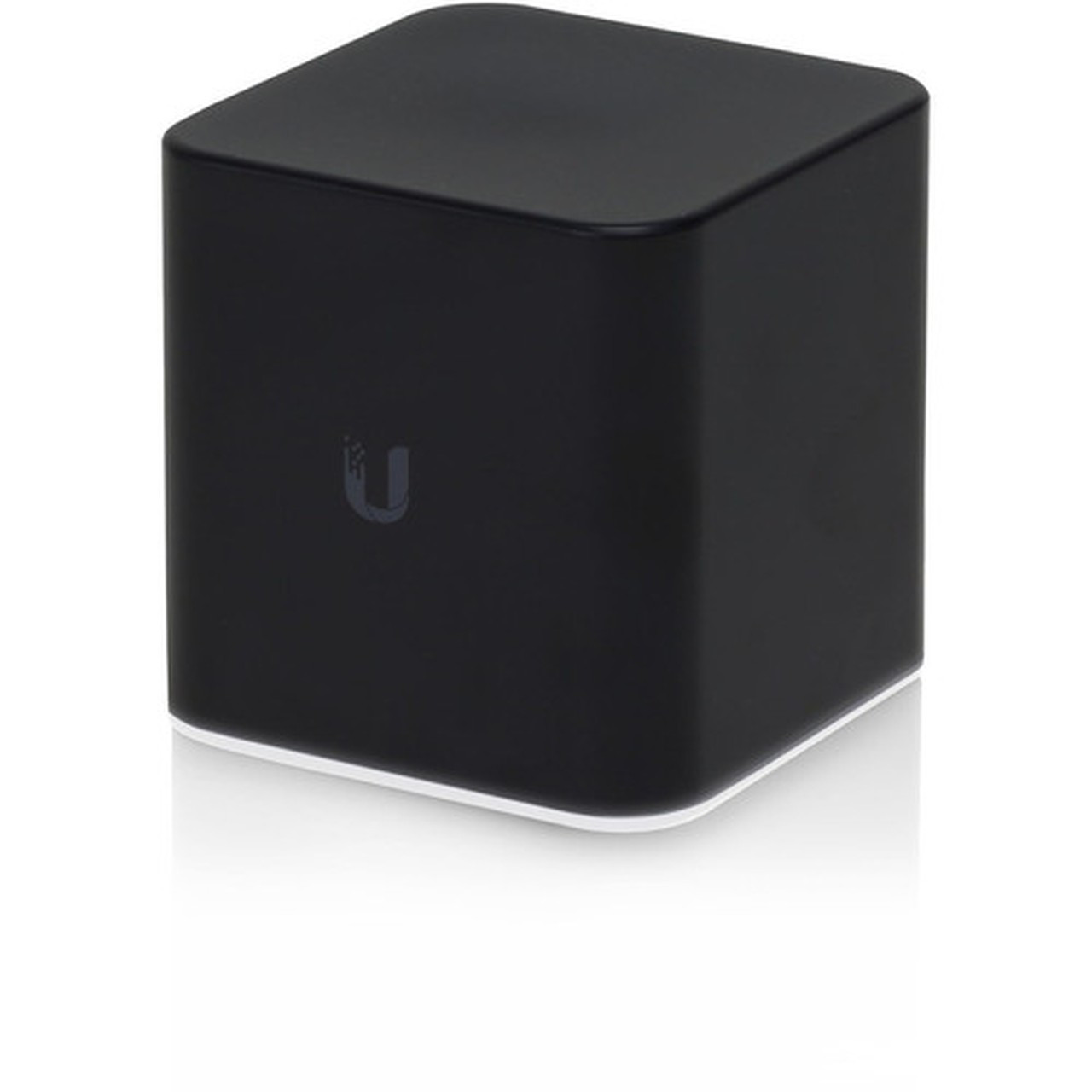

Marketing Information: Ubiquiti Networks introduces the airCube™, a cost-effective wireless access point for use in your customer deployments.
Wireless Performance
Two models are available:
- airCube AC Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:
- 2.4 GHz radio band Speeds of up to 300 Mbps
- 5 GHz radio band Speeds of up to 866.7 Mbps
- airCube ISP 802.11n, 2x2 MIMO Wi-Fi for speeds of up to 300 Mbps in the 2.4 GHz radio band

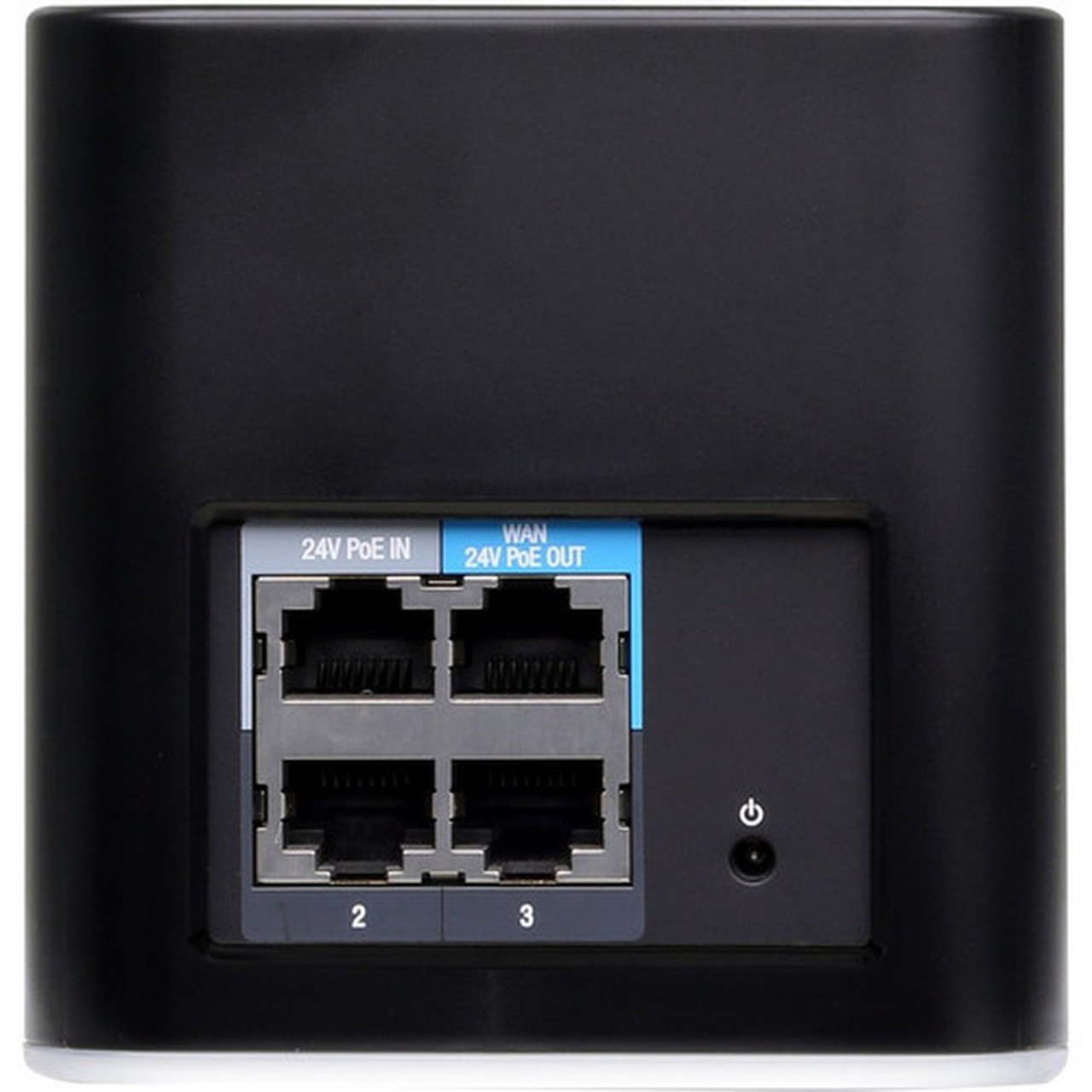

Versatile Power Options
Both models offer convenient PoE passthrough to power a 24V airMAX CPE device, so you can use a single PoE adapter to power both devices.
To provide sufficient power for PoE passthrough:
- The airCube AC requires the included power adapter or 24V, 1A PoE input.
- The airCube ISP requires 24V, 1A PoE input.
Intuitive Software
Management options feature a graphical user interface designed for streamlined setup and control.
Available options include:
- UNMS Provides advanced remote control of Ubiquiti® devices. Use the UNMS™ app to manage your devices using a tablet or smartphone.
- Web UI Enables a standalone utility for basic configuration.
Wireless LAN Standard: IEEE 802.11nFrequency Band: 2.40 GHzWireless Transmission Speed: 300 Mbit/sMIMO Technology: YesEthernet Technology: Fast EthernetNumber of Network (RJ-45) Ports: 4PoE (RJ-45) Port: YesPoE PD Port: YesUSB: YesHeight: 3.46" (87.80 mm)Width: 3.52" (89.50 mm)Depth: 3.51" (89.25 mm)Weight (Approximate): 215 g
[custom-specifications]
Specifications
Manufacturer: Ubiquiti Inc.
Manufacturer Part Number: ACB-ISP
Manufacturer Website Address: http://www.ui.com
Brand Name: Ubiquiti
Product Line: airCube
Product Model: ACB-ISP
Product Name: airMAX Home Wi-Fi Access Point with PoE In/Out
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11n
Frequency Band: 2.40 GHz
Wireless Transmission Speed: 300 Mbit/s
MIMO Technology: Yes
Interfaces/Ports
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 4
PoE (RJ-45) Port: Yes
PoE PD Port: Yes
USB: Yes
Physical Characteristics
Height: 3.46" (87.80 mm)
Width: 3.52" (89.50 mm)
Depth: 3.51" (89.25 mm)
Weight (Approximate): 215 g
[/custom-specifications]
