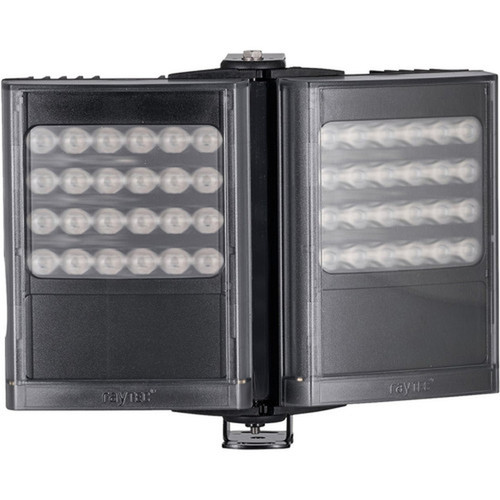

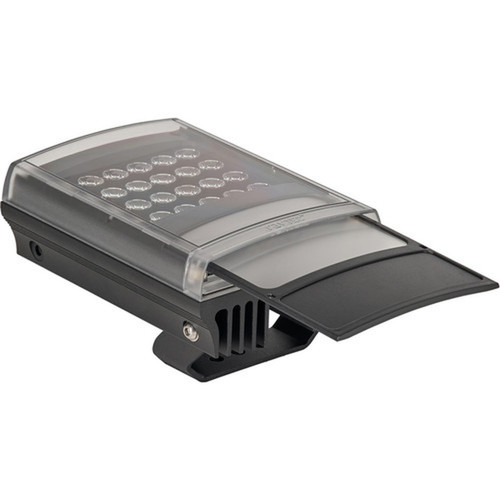

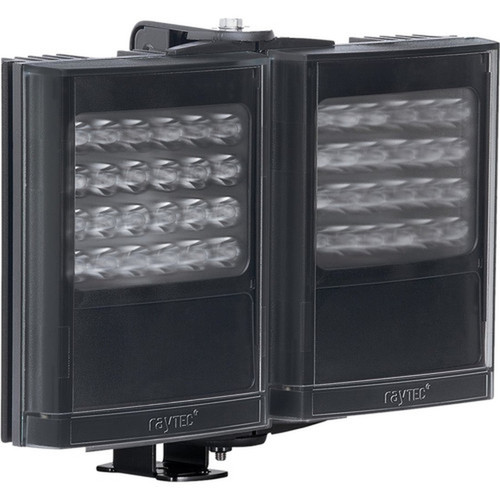

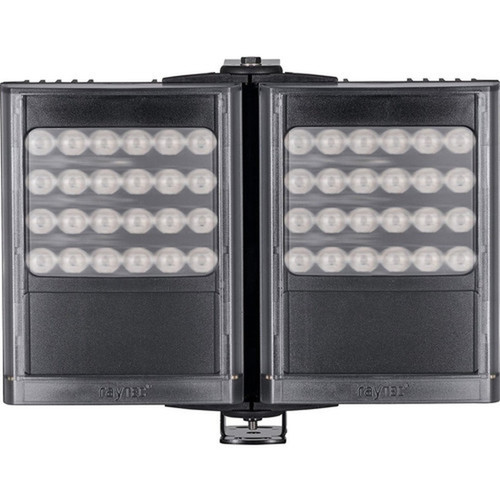

Raytec VAR2-I8-2 Long Range Infrared Illuminator - 500m Range - 48 SMT LEDs - 12-24V AC/DC - IP66 - VARIO 2 System
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This infrared illuminator utilizes advanced surface-mount technology (SMT) LEDs that deliver superior thermal management and extended operational lifespan compared to conventional infrared sources. The 850nm wavelength provides optimal balance between camera sensitivity and reduced visible glow, though 940nm options are available for covert applications where zero visible light emission is required.
The VARIO interchangeable lens system enables field-adjustable beam patterns without requiring complete unit replacement. Five preset configurations cover specific distance and angle combinations: 10°×10° for 500m range, 35°×10° for 240m, 60°×25° for 135m, 80°×30° for 100m, and 120°×50° for 65m coverage. Each configuration maintains the elliptical beam shape with HRT to ensure even illumination across the entire monitored area.
Relevant factors for this section include Device Supported, Features, Product Color, Height. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The VAR2-i8-2 combines long-range performance with precise beam control, making it suitable for perimeter security, critical infrastructure monitoring, and large-area surveillance applications where consistent night vision quality is essential.
Even Illumination Technology
Hot Spot Reduction Technology (HRT) eliminates bright spots and dark zones that can cause camera overexposure or underexposure, ensuring uniform infrared coverage across the entire surveillance area.
- Eliminates uneven illumination patterns
- Prevents camera overexposure/underexposure
- Maintains consistent image quality
Flexible Installation Options
With 12-24V AC/DC input voltage compatibility and included adaptive illumination mounting bracket, the illuminator integrates seamlessly into existing surveillance infrastructures without requiring specialized power supplies.
- Wide voltage range compatibility
- Includes mounting hardware
- Simplifies integration with existing systems
Environmental Durability
The IP66 rating provides complete protection against dust ingress and powerful water jets, ensuring reliable operation in outdoor environments exposed to rain, snow, and industrial conditions.
- Dust-tight construction
- Water-resistant design
- Suitable for harsh environments
Deployment / Use Cases
This infrared illuminator serves as a critical component in professional surveillance systems where existing ambient light is insufficient for camera operation. Its long-range capabilities make it particularly valuable for perimeter security applications, including fence lines, property boundaries, and access control points where monitoring distances exceed standard infrared coverage.
The adjustable beam angle system allows security integrators to tailor the illumination pattern to specific site requirements. Narrow beam settings optimize long-distance coverage for critical infrastructure monitoring such as power substations, communication towers, or transportation corridors. Wider beam configurations provide comprehensive area coverage for parking lots, storage yards, or building exteriors where broader surveillance is needed.
Perimeter Security Enhancement
Extend camera effectiveness along fence lines and property boundaries where standard infrared illumination falls short, maintaining consistent image quality across distances up to 500 meters.
Critical Infrastructure Monitoring
Provide reliable night vision for power facilities, communication infrastructure, and transportation networks where 24/7 surveillance is essential for security and operational continuity.
Physical Profile
The VAR2-i8-2 features a compact black housing measuring 10.98 inches wide by 8.78 inches high by 5.16 inches deep (279 × 223 × 131 mm), with a weight of 4.50 kg. This form factor balances substantial illumination output with manageable installation requirements. The included adaptive illumination mounting bracket supports versatile positioning options, while the durable construction withstands environmental exposure without compromising optical performance.
- Width
- 10.98" (279 mm)
- Depth
- 5.16" (131 mm)
- Height
- 8.78" (223 mm)
- Weight
- 4.50 kg
What's in the Box
The package includes the complete infrared illuminator system ready for installation and integration into surveillance infrastructures.
Highlights
- 500-meter maximum illumination distance for long-range surveillance applications
- 48 Platinum Elite SMT LEDs with advanced thermal management for extended lifespan
- Hot Spot Reduction Technology (HRT) eliminates uneven illumination patterns
- VARIO interchangeable lens system with five preset beam angle configurations
- 12-24V AC/DC input voltage compatibility for flexible power integration
- IP66-rated housing provides dust and water resistance for outdoor deployment
- 850nm wavelength optimized for camera sensitivity (940nm options available)
- Includes adaptive illumination mounting bracket for versatile installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Raytec, Ltd |
| Manufacturer Part Number | VAR2-I8-2 |
| Brand Name | Raytec |
| Product Line | VARIO 2 |
| Product Name | VAR2-i8-2 Long Range Infra-Red Illuminator |
| Product Type | Infrared Illuminator |
| Technical Information | |
| Device Supported | Video Surveillance System |
| Features | SMT LED Technology,Even Illumination,Easy Installation,Hot-spot Reduction Technology (HRT),LED Indicator |
| Physical Characteristics | |
| Product Color | Black |
| Height | 8.78" (223 mm) |
| Width | 10.98" (279 mm) |
| Depth | 5.16" (131 mm) |
| Weight (Approximate) | 4.50 kg |
| Miscellaneous | |
| Package Contents | VAR2-i8-2 Long Range Infra-Red Illuminator Adaptive Illumination Mounting Bracket |
| Additional Information | Max Distance: 500m (1640ft) Angles and Max Distances: 10°x10° - 500m (1,640ft) 35°x10° - 240m (787ft) 60°x25° - 135m (443ft) 80°x30° - 100m (328ft) 120°x50° - 65m (213ft) Input: 12-24V AC/DC Beam Shape: Elliptical with HRT (Hot Spot Reduction Technology) Beam Angle System: VARIO interchangeable lens system Consumption: 92W LED Type: Platinum Elite SMT LEDs Number of LEDs: 48 Wavelength: 850nm (940nm options available) |
| Compatibility | IP66 |
| Country of Origin | United Kingdom |
FAQ
What is the maximum distance this infrared illuminator can cover?
The VAR2-i8-2 provides infrared illumination up to 500 meters (1,640 feet) when configured with the 10°×10° beam angle setting. This long-range capability makes it suitable for perimeter security, critical infrastructure monitoring, and other applications where surveillance cameras need to capture clear images across substantial distances in complete darkness.
How does the Hot Spot Reduction Technology improve surveillance quality?
Hot Spot Reduction Technology (HRT) eliminates uneven illumination patterns that can cause bright spots and dark zones in surveillance footage. By distributing infrared light evenly across the entire coverage area, HRT prevents camera overexposure in bright areas and underexposure in dark areas, ensuring consistent image quality and reliable object detection throughout the monitored space.
What power input does this illuminator require for operation?
The VAR2-i8-2 operates on 12-24V AC/DC input voltage, providing flexibility for integration with various power infrastructures commonly found in surveillance installations. This wide voltage range allows the illuminator to work with standard security system power supplies, PoE injectors with voltage conversion, or dedicated power sources without requiring specialized electrical components.
Can the beam angle be adjusted after installation?
Yes, the VARIO interchangeable lens system allows field adjustment of the beam angle without replacing the entire unit. Five preset configurations are available: 10°×10° for 500m range, 35°×10° for 240m, 60°×25° for 135m, 80°×30° for 100m, and 120°×50° for 65m coverage. This flexibility enables security integrators to optimize illumination patterns for specific site requirements even after initial installation.
Is this infrared illuminator suitable for outdoor installation?
Yes, the VAR2-i8-2 features an IP66-rated housing that provides complete protection against dust ingress and powerful water jets. This environmental rating ensures reliable operation in outdoor conditions exposed to rain, snow, wind-blown dust, and temperature variations, making it suitable for perimeter security, parking lots, building exteriors, and other external surveillance applications.
What wavelength does this illuminator use, and are other options available?
The standard configuration uses 850nm wavelength infrared light, which provides optimal balance between camera sensitivity and reduced visible glow. For applications requiring complete covert operation with zero visible light emission, 940nm wavelength options are available. The 850nm wavelength is typically preferred for most surveillance applications as it maximizes camera performance while minimizing visible red glow that might indicate surveillance presence.
