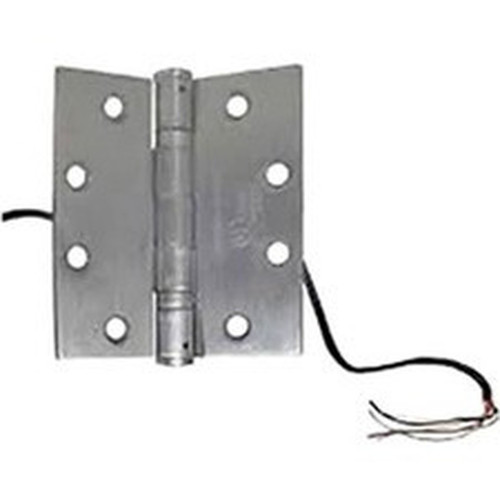

RCI 95229 Electrified Hinge - 6 Wire Conductor - Brushed Stainless Steel - 4. 5" Square - UL Certified
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The RCI 95229 incorporates a sophisticated 2+4 conductor configuration with separate 20-gauge and 26-gauge wires to handle different electrical loads. This design supports simultaneous power delivery for locking mechanisms and signal transmission for monitoring systems, all within a single hinge assembly.
With current ratings of 4.0A @ 24V and 1.0A @ 24V, this hinge accommodates both primary and secondary electrical circuits commonly found in modern access control installations. The UL certification confirms compliance with safety standards for electrical components in building security systems.
This section brings together practical product details such as Color Family, Product Color, Height, Package Contents, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This electrified hinge simplifies access control installations by combining power and signal transmission in a single, professionally finished component. The brushed stainless steel construction resists corrosion and maintains appearance in demanding environments while providing reliable electrical continuity.
Dual Circuit Support
Separate 20-gauge and 26-gauge conductors handle different current requirements simultaneously, eliminating the need for multiple wiring runs.
- 4.0A @ 24V primary circuit
- 1.0A @ 24V secondary circuit
- Independent current paths
Professional Integration
The square 4.5-inch profile and brushed stainless finish ensure seamless visual integration with commercial door hardware while providing consistent electrical performance.
- Standard door hardware dimensions
- Corrosion-resistant finish
- Precise mounting alignment
Deployment / Use Cases
The RCI 95229 electrified hinge is specifically designed for access control systems requiring both power delivery to electric locks and signal transmission for door monitoring sensors. Its compatibility with RCI 9 Series current transfer switches makes it ideal for integrated security installations in corporate offices, educational facilities, healthcare environments, and government buildings.
This hinge supports installations where concealed wiring is preferred for aesthetic and security reasons. The 4-foot lead provides sufficient length for connection to nearby junction boxes while maintaining clean door frame appearances. Common applications include electrified mortise locks, electromagnetic locks, and door position switches in controlled access areas.
Access Control Integration
Provides both power to locking mechanisms and status signals from door sensors through a single concealed wiring path.
Commercial Security Systems
Ideal for integration with RCI 9 Series current transfer switches in professional security installations requiring UL-certified components.
Physical Profile
The RCI 95229 features a square 4.5-inch by 4.5-inch profile with a brushed stainless steel finish that complements standard commercial door hardware. This consistent dimension ensures proper alignment during installation and maintains the hinge's structural integrity under regular door operation. The finish provides both corrosion resistance and a professional appearance suitable for visible security installations.
- Width
- 4.50" (114.30 mm)
- Height
- 4.50" (114.30 mm)
What's in the Box
This product includes the complete electrified hinge assembly with integrated wiring for immediate installation.
Highlights
- Six-wire conductor design for combined power and signal transmission
- Brushed stainless steel finish for durability and professional appearance
- 4.5-inch square dimensions compatible with standard door hardware
- 2+4 conductor configuration (2@20 gauge + 4@26 gauge)
- Dual current ratings: 4.0A @ 24V + 1.0A @ 24V
- 4-foot lead for flexible installation options
- UL certified for safety compliance
- Compatible with RCI 9 Series current transfer switches
Specifications
| Specifications | |
|---|---|
| Manufacturer | dormakaba Holding |
| Manufacturer Part Number | 95229 |
| Brand Name | RCI |
| Product Model | 95229 |
| Product Name | Electrified Hinges (6 Wire Conductor) |
| Product Type | Electrified Hinge |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Brushed Stainless Steel |
| Height | 4.50" (114.30 mm) |
| Width | 4.50" (114.30 mm) |
| Miscellaneous | |
| Package Contents | Electrified Hinges (6 Wire Conductor) 4 Foot Lead |
| Additional Information | 2+4 Conductor (2@20 Gauge + 4@26 Gauge) 4.0A @ 24V + 1.0A @ 24V |
| Compatibility | RCI - 9 Series Current Transfer Switch |
| Certifications & Standards | UL |
FAQ
What is the purpose of the six-wire conductor in this electrified hinge?
The six-wire conductor design allows this hinge to simultaneously handle multiple electrical functions within access control systems. It provides separate circuits for powering electric locks (typically using the 20-gauge wires) and transmitting sensor signals (using the 26-gauge wires), eliminating the need for separate wiring runs and simplifying installation.
What access control systems is this hinge compatible with?
This RCI 95229 electrified hinge is specifically compatible with RCI 9 Series current transfer switches. These switches are commonly used in professional access control installations to manage power distribution to electrified locks and door hardware while providing monitoring capabilities for security systems.
What are the electrical specifications of this hinge?
The hinge features a 2+4 conductor configuration with two 20-gauge wires and four 26-gauge wires. It supports dual current ratings: a primary circuit rated at 4.0A @ 24V for powering locking mechanisms, and a secondary circuit rated at 1.0A @ 24V for sensor and monitoring applications. All electrical components operate at 24V DC.
What finish and dimensions does this hinge have?
The hinge features a brushed stainless steel finish within the gray color family, providing both corrosion resistance and a professional appearance. It measures 4.5 inches (114.30 mm) in both height and width, creating a square profile that aligns with standard commercial door hardware dimensions for consistent installation.
Is this electrified hinge certified for safety standards?
Yes, the RCI 95229 carries UL certification, confirming it meets recognized safety standards for electrical components used in building security systems. This certification is particularly important for access control hardware that will be installed in commercial, institutional, and public buildings where electrical safety compliance is required.
What is included in the package with this electrified hinge?
The package includes the complete electrified hinge assembly with integrated six-wire conductor and a 4-foot lead. This pre-wired configuration simplifies installation by providing sufficient cable length for connection to nearby junction boxes or control panels without requiring additional wiring between the hinge and the lead connection point.
| Qty | Price | Available |
|---|
