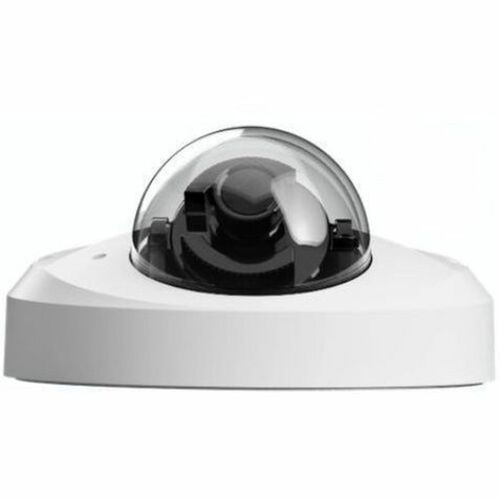

Rhombus R170-1TB 5MP Micro Dome Network Camera with 2592 x 1944 Resolution - 2. 8mm Fixed Lens - Fast Ethernet & AI Analytics
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera features a 5-megapixel sensor that supports HD recording at maximum 2592x1944 resolution. The fixed 2.8mm lens with an f/2.0 maximum aperture ensures adequate light capture in various lighting conditions. Digital PTZ modes allow users to pan, tilt, and zoom digitally within the captured frame, providing adjustable viewing angles without physical lens adjustments.
Connectivity is handled through a wired Fast Ethernet interface with an RJ-45 port, enabling remote management and integration into existing network infrastructures. The camera consumes a maximum of 4.80 watts, contributing to energy-efficient deployment. Environmental specifications include operation from -22°F to 131°F (-30°C to 55°C) and up to 90% humidity, supporting installation in diverse climates.
This section brings together practical product details such as HD Recording, AI-powered, Field of View, Effective Camera Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The R170-1TB combines high-resolution imaging with intelligent analytics to enhance security monitoring efficiency. Its AI-powered video content analytics automatically detect and classify events, reducing manual review time and improving incident response accuracy. The micro dome design offers a discreet profile suitable for environments where aesthetics or tamper resistance are considerations.
Advanced Imaging Capabilities
Delivers 5-megapixel clarity with a wide 132° diagonal field of view, ensuring comprehensive coverage and detailed footage for forensic review.
- 2592x1944 resolution for sharp video
- Fixed lens maintains consistent focus
- Digital PTZ for flexible viewing angles
Network Integration & Management
Fast Ethernet connectivity supports seamless integration into IP surveillance systems, with remote management capabilities for centralized control and monitoring.
- Wired connectivity for reliable data transmission
- Low 4.80W power consumption
- TAA compliance for government and institutional use
Deployment / Use Cases
This camera is ideal for small to medium business security, retail loss prevention, and institutional monitoring where high-resolution video and analytics are required. Its micro dome form factor and wide field of view make it suitable for ceilings in lobbies, corridors, or retail floors, providing unobtrusive surveillance with clear image capture.
Use cases include perimeter monitoring in office buildings, customer behavior analysis in retail settings, and asset protection in warehouses. The environmental tolerance allows installation in entryways or covered outdoor areas, while the AI analytics support applications like people counting, loitering detection, and unauthorized access alerts.
Indoor Business Security
Deploy in offices, retail stores, or schools for 24/7 monitoring with AI-driven event detection to enhance security protocols.
- Discreet micro dome design
- HD recording for evidence quality
- Remote management for multi-site oversight
Sheltered Outdoor Monitoring
Install under eaves or in covered areas to monitor entrances, parking lots, or loading docks, leveraging the wide temperature operating range.
- Operates from -22°F to 131°F
- 90% humidity tolerance
- Fixed lens resists environmental wear
Physical Profile
The R170-1TB features a micro dome enclosure weighing approximately 6.70 ounces (190 grams), designed for low-profile ceiling or wall mounting. Its compact size facilitates installation in tight spaces without compromising field of view. The included mounting screws support secure attachment, and the durable construction ensures longevity in varied environmental conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.70 oz (190 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 6.70 oz (190 g)
- Length
- 2.8 mm (0.11")
What's in the Box
The package includes the R170 Micro Dome Camera and mounting screws, providing all necessary hardware for immediate installation and setup.
Package contents include R170 Micro Dome Camera Mounting Screws, R170 Micro Dome Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5-megapixel resolution for detailed 2592x1944 video capture
- Fixed 2.8mm lens with a 132° diagonal field of view
- AI-powered video content analytics for intelligent detection
- Fast Ethernet wired connectivity with remote management
- Micro dome form factor for discreet, tamper-resistant installation
- Digital PTZ modes enable flexible digital zoom and panning
- Low 4.80W power consumption for energy-efficient operation
- Operates in temperatures from -22°F to 131°F (-30°C to 55°C)
- TAA compliant for use in government and institutional projects
- Includes 10-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Rhombus Systems, Inc |
| Manufacturer Part Number | R170-1TB |
| Brand Name | Rhombus |
| Product Model | R170 |
| Product Name | R170 Micro Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| AI-powered | Yes |
| Display & Graphics | |
| Field of View | 132° Diagonal FoV, 108° Horizontal FoV, 76° Vertical FoV |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2592 x 1944 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| PTZ Modes | Digital PTZ |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 4.80 W |
| Physical Characteristics | |
| Form Factor | Micro Dome |
| Weight (Approximate) | 6.70 oz (190 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | AI Analytics,Video Content Analytics |
| Package Contents | R170 Micro Dome Camera Mounting Screws |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 10 Year |
User Manual
FAQ
What is the maximum video resolution of the Rhombus R170-1TB camera?
The camera supports a maximum video resolution of 2592 x 1944 pixels, which corresponds to 5-megapixel imaging. This high resolution provides clear, detailed footage suitable for identifying individuals or objects in surveillance applications, enhancing the effectiveness of security monitoring and forensic review.
Does this camera include AI analytics capabilities?
Yes, the R170-1TB features AI-powered video content analytics. These analytics automatically detect and classify events such as motion, people, or vehicles, reducing false alarms and improving incident response. This intelligence helps streamline monitoring by focusing attention on relevant activities, making it a valuable tool for modern security systems.
What type of lens does the R170-1TB use, and is it adjustable?
This camera uses a fixed 2.8mm lens with a maximum aperture of f/2.0. The lens is not mechanically adjustable, but it offers digital PTZ (pan-tilt-zoom) modes, allowing users to zoom and pan digitally within the captured frame. This provides flexibility in viewing angles without the need for physical lens adjustments, maintaining a consistent field of view.
How is the camera connected to the network?
The R170-1TB connects via wired Fast Ethernet using an RJ-45 port. This ensures reliable, high-speed data transmission for video streaming and remote management. The wired connectivity supports stable integration into existing IP networks, with remote management capabilities enabling centralized control and monitoring from networked devices.
What are the environmental operating conditions for this camera?
The camera operates in temperatures ranging from -22°F to 131°F (-30°C to 55°C) and can handle up to 90% humidity. This wide tolerance makes it suitable for both indoor and sheltered outdoor installations, such as under eaves or in covered areas, ensuring reliable performance in diverse climatic conditions without compromising functionality.
What is included in the package with the R170-1TB camera?
The package includes the R170 Micro Dome Camera and mounting screws. These components provide everything needed for immediate installation and setup, allowing for quick deployment in surveillance environments without requiring additional hardware for basic mounting and operation.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
