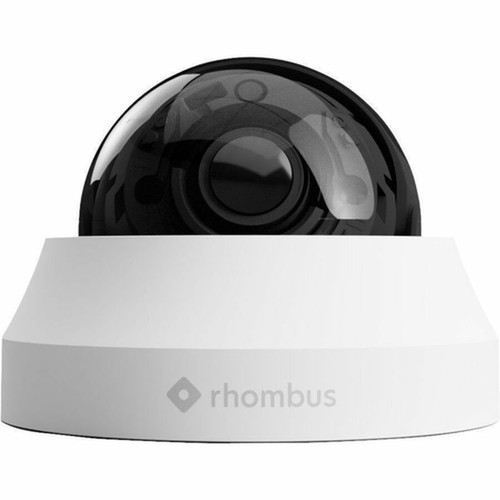

Rhombus R230-1TB R230 5MP Full HD Dome Network Camera - Color - 2592 x 1944 - 100 ft IR Night Vision - 2. 8 mm Varifocal Lens - PoE
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the R230 is a 5-megapixel sensor paired with a varifocal lens system. The lens has a maximum focal length of 2.8 mm, providing a wide diagonal field of view ranging from 84° to 122.2°, which is ideal for covering expansive areas like parking lots, warehouses, or retail floors. This optical flexibility, combined with a maximum aperture of f/1.6 and 2.8x optical zoom, allows for adjustable framing and improved low-light performance without sacrificing image clarity.
The camera records in Full HD formats and includes remote management capabilities, enabling centralized control and monitoring via network connections. It utilizes Fast Ethernet for wired data transmission and supports dual-band wireless connectivity for installations where cabling is impractical. Environmental resilience is a key technical strength, with an operating temperature range of -67°F to 131°F (-55°C to 55°C) and tolerance for up to 90% humidity, making it suitable for extreme climates.
Key Product Advantages
The Rhombus R230 stands out with its combination of high-resolution imaging, durable construction, and flexible deployment options, making it a reliable choice for security professionals.
Superior Image Detail
With 5-megapixel resolution and Full HD recording, the camera captures fine details such as license plates or facial features, enhancing forensic review and real-time monitoring accuracy.
- 2592 x 1944 maximum resolution
- Clear identification capability
- Full HD recording format
All-Weather Durability
The IP66 rating ensures complete protection against dust and powerful water jets, while the IK10 impact resistance guards against vandalism and physical shocks, guaranteeing longevity in exposed locations.
- Weatherproof and waterproof design
- Vandal-resistant dome housing
- Wide temperature operating range
Installation Flexibility
Support for PoE, Wi-Fi, and multiple mount types reduces installation complexity and cost, allowing the camera to be deployed quickly in both new and retrofit surveillance systems.
- Single-cable PoE setup
- Wireless connectivity options
- Wall, ceiling, corner, and pole mounts
Deployment / Use Cases
The R230 is engineered for a wide range of surveillance applications where reliability, image quality, and environmental toughness are paramount. Its feature set addresses common challenges in commercial, industrial, and public sector security.
In retail environments, the camera's wide field of view and high resolution help monitor sales floors, entrances, and parking areas, deterring theft and providing evidence for incidents. For industrial sites like warehouses or manufacturing plants, the rugged IP66 and IK10 ratings protect against dust, moisture, and accidental impacts, while the extended night vision ensures 24/7 coverage of outdoor yards or loading docks.
Perimeter Security
Deploy along building exteriors, fences, or gates to monitor unauthorized access. The 100-foot infrared night vision and weatherproof design maintain surveillance in darkness and adverse weather conditions.
Public Space Monitoring
Install in parks, campuses, or transportation hubs where vandal resistance and wide-area coverage are needed. The dome form factor provides a discreet presence while offering multiple mounting angles for optimal viewing.
What's in the Box
The package includes all essential components for immediate installation and operation.
Package contents include R230 Network Camera Mounting screws Anchors RJ45 waterproofing grommet, R230 Network Camera. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5-megapixel resolution for detailed Full HD video at 2592 x 1944
- Infrared night vision effective up to 100 feet (30.48 meters)
- Varifocal lens with 2.8 mm focal length and 84°-122.2° diagonal field of view
- Power over Ethernet (PoE) for simplified single-cable installation
- Dual connectivity with wired Fast Ethernet and wireless Wi-Fi/Bluetooth
- Rugged dome design with IP66 weatherproof and IK10 impact resistance ratings
- Wide operating temperature range from -67°F to 131°F (-55°C to 55°C)
- Multiple mounting options: wall, ceiling, corner, and pole
- Remote management capability for centralized surveillance control
- 10-year limited warranty and TAA compliance for government and enterprise use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Rhombus Systems, Inc |
| Manufacturer Part Number | R230-1TB |
| Brand Name | Rhombus |
| Product Model | R230 |
| Product Name | R230 Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 100 ft (30.48 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Color Supported | Color |
| Field of View | 84°-122.2° Diagonal FoV 74.6°-110.1° Horizontal FoV 38.6°-53.1° Vertical FoV |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Maximum Video Resolution | 2592 x 1944 |
| Lens | |
| Lens Type | Varifocal |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 2.8x |
| Network & Communication | |
| Connectivity Technology | Wired & Wireless |
| Remote Management | Yes |
| Wireless Technology | Wi-Fi,Bluetooth |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Wall Mount,Ceiling Mount,Corner Mount,Pole Mount |
| Form Factor | Dome |
| Durability | Weather Resistant,Impact Resistant,Water Proof |
| Environmental Conditions | |
| Minimum Operating Temperature | -67°F (-55°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night |
| Package Contents | R230 Network Camera Mounting screws Anchors RJ45 waterproofing grommet |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 10 Year |
FAQ
What is the maximum video resolution of the Rhombus R230 camera?
The Rhombus R230 captures video at a maximum resolution of 2592 x 1944, which is a 5-megapixel output. This high resolution provides detailed imagery suitable for identifying subjects, reading license plates, or monitoring fine details in surveillance footage, ensuring clear evidence and real-time monitoring capabilities.
How far does the night vision work on this camera?
The camera features infrared night vision that effectively illuminates and captures video up to a distance of 100 feet (30.48 meters) in total darkness. This allows for continuous 24/7 surveillance in low-light or no-light conditions, making it ideal for outdoor areas like parking lots, perimeters, or dimly lit interiors.
What power options does the R230 support?
The R230 is powered primarily through Power over Ethernet (PoE), which delivers both data and electrical power over a single network cable. This simplifies installation by reducing the need for separate power outlets near the camera. The camera also supports wireless connectivity via Wi-Fi and Bluetooth for flexible deployment in locations where running cables is challenging.
Is this camera suitable for outdoor use?
Yes, the R230 is built for outdoor and harsh environment use. It has an IP66 ingress protection rating, meaning it is completely dust-tight and protected against powerful water jets from any direction. Combined with an IK10 impact resistance rating and an operating temperature range of -67°F to 131°F (-55°C to 55°C), it can withstand rain, snow, vandalism, and extreme temperatures.
What type of lens does the camera have, and can I adjust the view?
The camera includes a varifocal lens with a maximum focal length of 2.8 mm. This lens type allows for manual adjustment of the field of view, offering a diagonal range from 84° to 122.2°. You can fine-tune the zoom and focus during installation to cover wide areas or zoom in on specific points, providing flexibility without needing to change lenses.
What mounting options are available for the R230 dome camera?
The R230 supports versatile mounting with options for wall, ceiling, corner, and pole installations. The package includes mounting screws, anchors, and an RJ45 waterproofing grommet to secure the camera and protect connections. This flexibility allows for optimal positioning in various surveillance scenarios, whether for overhead coverage in a warehouse or angled views on a building exterior.
What connectivity or interface options are available?
Connectivity options include Wired & Wireless, helping the product integrate into common office or home setups.
