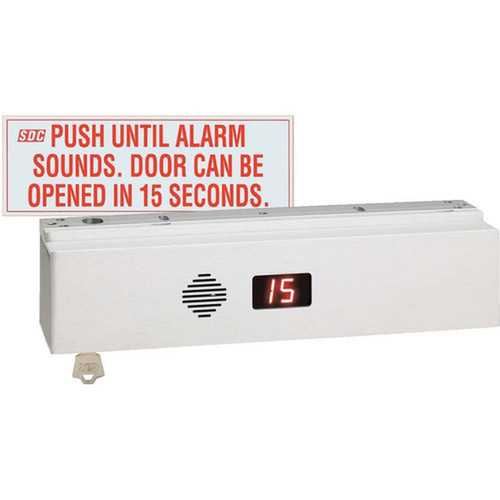

SDC 1511SNAKV Magnetic Lock - 1650 lb Holding Force - 12/24 V DC - Surface Mount - Aluminum
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This magnetic lock operates on both 12 V DC and 24 V DC inputs, with Automatic Voltage Selection (AVS) ensuring compatibility across different power systems without manual configuration. The lock's armature plate measures 2.36" x 7.36" x 0.55" (60 x 187 x 14 mm), providing a secure magnetic interface, while the lock body itself measures 10.98" x 2.76" x 2.64" (279 x 70 x 67 mm) for straightforward surface mounting.
Key technical specifications include a 30-second egress delay timer that can be adjusted for compliance with local building codes, along with status indicators for egress mode monitoring. The dual-voltage capability allows integration into both low-voltage and standard security system infrastructures.
Relevant factors for this section include Door Supported, Holding Force, Armature Plate Height, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The 1511SNAKV offers several advantages for security system designers and installers. Its 1650 lb holding force provides exceptional resistance to forced entry, while the dual-voltage design with AVS simplifies installation by eliminating the need for voltage-specific models.
Safety Compliance
Features like emergency release input and adjustable egress delay support fire safety requirements and building code compliance for controlled egress scenarios.
- 30-second egress delay
- Emergency release capability
- Egress mode status indicator
Installation Flexibility
The surface mount design and aluminum construction allow for straightforward installation on various door types without requiring specialized tools or extensive modifications.
- Clear anodized finish
- Standard mounting hardware compatible
- Single-door configuration
Deployment / Use Cases
This magnetic lock is ideal for commercial buildings, educational institutions, healthcare facilities, and government installations where secure access control is required. Its heavy-duty holding force makes it suitable for exterior doors, server room entrances, and other high-security areas.
Common deployment scenarios include integration with card reader systems, keypad access controls, and intercom systems. The lock's dual-voltage operation allows it to work with both legacy 12 V DC systems and modern 24 V DC security infrastructures, providing upgrade flexibility without replacing existing power supplies.
Commercial Security
Deploy on main entrances, employee-only areas, or sensitive storage locations where controlled access prevents unauthorized entry.
Institutional Applications
Install in schools, hospitals, or government buildings where fire-rated doors require magnetic locks with emergency release capabilities for safety compliance.
Physical Profile
The lock features a clean aluminum construction with clear anodized finishing that resists corrosion and maintains appearance over time. With dimensions of 10.98" long, 2.76" high, and 2.64" deep, the surface-mount design provides a low-profile installation that doesn't interfere with door operation or aesthetics.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.36" (60 mm), 7.36" (187 mm), 0.55" (14 mm), 15 lb (6803.89 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 7.36" (187 mm)
- Depth
- 0.55" (14 mm)
- Height
- 2.36" (60 mm)
- Weight
- 15 lb (6803.89 g)
- Length
- 10.98" (279 mm)
Highlights
- 1650 lb holding force for maximum security
- Dual voltage operation (12/24 V DC) with Automatic Voltage Selection
- Surface mount design for easy installation
- Aluminum construction with clear anodized finish
- 30-second adjustable egress delay timer
- Emergency release input for safety compliance
- Key reset functionality for access control
- Egress mode status indicator
- Single-door configuration
- 15 lb weight for stable mounting
Specifications
| Specifications | |
|---|---|
| Manufacturer | Security Door Controls |
| Manufacturer Part Number | 1511SNAKV |
| Brand Name | SDC |
| Product Series | 1511S/T |
| Product Model | 1511SNAKV |
| Product Name | 1511SNAKV Magnetic Lock |
| Packaged Quantity | 1 |
| Product Type | Magnetic Lock |
| Technical Information | |
| Door Supported | Single Door |
| Holding Force | 1650 lb (748427.41 g) |
| Armature Plate Height | 2.36" (60 mm) |
| Armature Plate Width | 7.36" (187 mm) |
| Armature Plate Depth | 0.55" (14 mm) |
| Egress Delay | 30 Second |
| Features | Emergency Release Input,Adjustable Timer,Key Reset,Egress Mode Status,Automatic Voltage Selection (AVS),Dual Voltage |
| Power Description | |
| Input Voltage | 12 V DC,24 V DC |
| Physical Characteristics | |
| Product Color | Clear Anodized |
| Product Material | Aluminum |
| Finishing | Aluminum |
| Form Factor | Surface Mount |
| Lock Height | 2.76" (70 mm) |
| Lock Depth | 2.64" (67 mm) |
| Lock Length | 10.98" (279 mm) |
| Weight (Approximate) | 15 lb (6803.89 g) |
| Miscellaneous | |
| Application/Usage | Door |
FAQ
What is the holding force of this magnetic lock?
The SDC 1511SNAKV Magnetic Lock provides 1650 pounds (748,427 grams) of holding force. This substantial strength makes it suitable for securing exterior doors, server rooms, and other high-security areas where resistance to forced entry is critical.
What voltage does this magnetic lock require?
This lock operates on both 12 V DC and 24 V DC power inputs. It features Automatic Voltage Selection (AVS), which automatically detects and adapts to the available voltage, eliminating the need for manual configuration or voltage-specific models.
How is this magnetic lock installed?
The 1511SNAKV is designed for surface mounting on single doors. Its aluminum construction and standard dimensions (10.98" x 2.76" x 2.64") allow for straightforward installation using typical mounting hardware without requiring specialized tools or extensive door modifications.
What safety features does this lock include?
Safety features include emergency release input for fire safety compliance, a 30-second adjustable egress delay timer, key reset functionality, and egress mode status indication. These features ensure the lock meets building code requirements for controlled egress scenarios.
What materials is this magnetic lock made from?
The lock is constructed entirely from aluminum with a clear anodized finish. This material choice provides durability, corrosion resistance, and a professional appearance while maintaining the structural integrity needed for heavy-duty security applications.
What type of doors is this magnetic lock designed for?
This magnetic lock is specifically designed for single-door applications. It's suitable for various door types in commercial, institutional, and industrial settings where controlled access is required, particularly for exterior doors and high-security interior areas.
