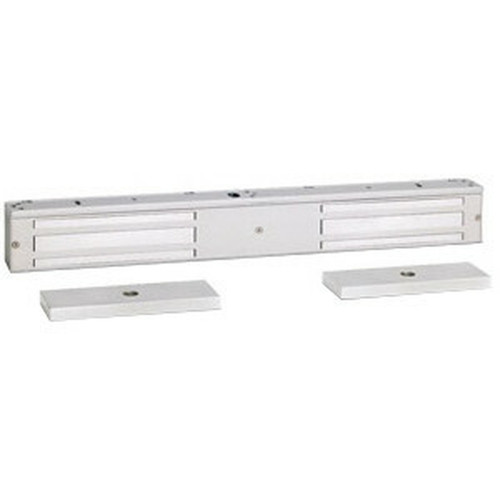

SDC 1572VD EMLock 1572 Magnetic Lock - 544. 31 kg Holding Force - Double Door - 12/24 V DC - Surface Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The EMLock 1572 operates on a 12 V DC or 24 V DC power supply, drawing 500 mA of current for consistent electromagnetic performance. Its power-efficient design minimizes energy usage without compromising locking strength, which is rated at 544.31 kg to secure double-door configurations effectively.
Integrated sensors enhance operational reliability. The Door Status Sensor (DSS) monitors lock engagement, the Magnetic Bond Sensor (MBS) confirms proper armature alignment, and the Door Position Switch (DPS) tracks door movement. These features contribute to real-time monitoring and fault detection in access control setups.
This section brings together practical product details such as Door Supported, Holding Force, Features, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The EMLock 1572 combines high holding force with versatile power options and integrated diagnostics, delivering a security solution that balances strength, efficiency, and monitoring capabilities.
High Holding Force
With 544.31 kg of holding force, this lock resists significant pressure, making it ideal for securing double doors in environments where door integrity is critical.
- Suitable for high-security applications
- Effective on inswing door configurations
Dual Voltage Flexibility
Support for both 12 V DC and 24 V DC input allows integration with a wide range of existing power supplies and access control panels, simplifying upgrades and new installations.
- Compatible with common DC power standards
- Reduces compatibility concerns during setup
Integrated Sensor Suite
Built-in Door Status Sensor, Magnetic Bond Sensor, and Door Position Switch provide real-time feedback on lock operation, door position, and magnetic bond integrity for enhanced system monitoring.
- Enables proactive maintenance
- Improves security system reliability
Deployment / Use Cases
This magnetic lock is designed for commercial, institutional, and industrial access control systems where double-door security is a priority. Its surface-mount form factor and aluminum construction suit both indoor and protected outdoor installations.
Typical deployments include office building main entrances, hospital secure wards, school perimeter doors, and warehouse access points. The lock’s high holding force and sensor features make it effective in high-traffic areas that require reliable door retention and operational monitoring.
Commercial Entry Security
Install on double inswing doors at building entrances to control access while withstanding frequent use and potential forced-entry attempts.
Institutional Access Control
Use in healthcare, education, or government facilities where door security must integrate with broader access systems and provide audit trails via sensor data.
Highlights
- 544.31 kg holding force for double-door security
- Supports 12 V DC and 24 V DC input voltage
- Surface-mount form factor with aluminum finish
- Integrated Door Status Sensor (DSS) for lock monitoring
- Magnetic Bond Sensor (MBS) ensures proper alignment
- Door Position Switch (DPS) tracks door movement
- Low 6 W power consumption for energy efficiency
- Designed for inswing door applications
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Security Door Controls |
| Manufacturer Part Number | 1572VD |
| Brand Name | SDC |
| Product Line | EMLock |
| Product Series | 1570 |
| Product Model | 1572 |
| Product Name | EMLock 1572 Magnetic Lock |
| Product Type | Magnetic Lock |
| Technical Information | |
| Door Supported | Double Door |
| Holding Force | 544.31 kg |
| Features | Door Status Sensor (DSS),Magnetic Bond Sensor (MBS),Door Position Switch (DPS) |
| Power Description | |
| Input Voltage | 12 V DC,24 V DC |
| Input Current | 500 mA |
| Power Consumption | 6 W |
| Physical Characteristics | |
| Finishing | Aluminum |
| Form Factor | Surface Mount |
| Lock Height | 2.75" (69.85 mm) |
| Lock Depth | 1.56" (39.67 mm) |
| Lock Length | 11" (279.40 mm) |
| Miscellaneous | |
| Application/Usage | Inswing Door |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the holding force of the SDC EMLock 1572?
The SDC EMLock 1572 provides a holding force of 544.31 kg. This high force rating makes it suitable for securing double doors against forced entry in commercial and institutional settings, ensuring reliable door retention under pressure.
What types of doors does this magnetic lock support?
This lock is designed for double inswing doors. Its configuration and mounting style are optimized for this door type, providing effective magnetic locking where two doors meet or operate together in an inswing motion.
What power supply does the EMLock 1572 require?
The EMLock 1572 operates on either 12 V DC or 24 V DC input, offering flexibility to match existing power systems. It draws 500 mA of current and consumes 6 W of power, making it energy-efficient for continuous operation in access control setups.
What sensors are included with this magnetic lock?
The lock includes three integrated sensors: a Door Status Sensor (DSS) to monitor lock engagement, a Magnetic Bond Sensor (MBS) to confirm proper armature alignment, and a Door Position Switch (DPS) to track door movement. These sensors enhance reliability and provide feedback for system monitoring.
How is the EMLock 1572 installed?
The EMLock 1572 features a surface-mount form factor, meaning it mounts directly onto the door frame or surface without requiring embedded installation. Its aluminum finish and compact dimensions (11" L x 2.75" H x 1.56" D) allow for straightforward mounting in various door configurations.
What warranty covers the SDC EMLock 1572?
The SDC EMLock 1572 comes with a lifetime limited warranty. This warranty reflects the product's durability and long-term reliability, providing assurance for investments in access control security over extended periods.
