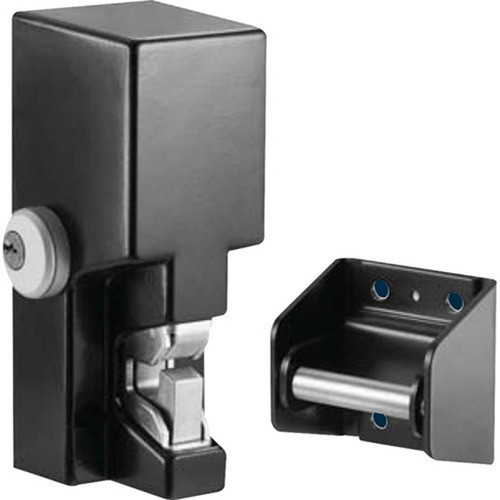

Securitron GL1-FSM Gate Lock - 2000 lbs Holding Force - Automatic Dual-Voltage - Surface Mount - Lifetime Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GL1-FSM integrates advanced electromechanical mechanisms with practical security features. It accepts a standard mortise cylinder with an Adams Rite MS cam for manual key override, providing a reliable backup access method, though the cylinder and cam are not included.
An optional latch status monitor enhances security monitoring by reporting lock engagement status. The lock's construction prioritizes durability and resistance to tampering, making it suitable for demanding outdoor or high-traffic gate environments.
This section brings together practical product details such as Width, Depth, Application/Usage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The GL1-FSM combines brute-force security with intelligent design to address common gate installation challenges. Its self-aligning receiver automatically adjusts for gate sag and misalignment, reducing installation time and ensuring consistent performance without manual shimming or adjustments.
High-Security Performance
With 2,000 lbs holding force and tamper-resistant housing, this lock deters forced entry effectively while maintaining operational integrity under substantial preload.
- 2,000 lbs holding force
- Tamper-resistant cast housing
- Operates under 100 lbs preload
Simplified Installation & Operation
Automatic dual-voltage eliminates configuration steps, and the surface mount design with alignment compensation streamlines deployment on various gate types.
- Automatic dual-voltage
- Surface mount
- Self-aligning receiver (±1/2")
Deployment / Use Cases
This lock is specifically designed for gate applications, making it ideal for securing perimeter access points in commercial, industrial, and institutional settings. Its robust construction and high holding force suit it for gates subject to frequent use or potential security threats.
Common deployments include vehicle gates at warehouses, pedestrian gates at schools or office complexes, and access points in gated communities. The optional latch status monitor adds value for integrated security systems requiring real-time lock status feedback.
Perimeter Security Gates
Secure vehicle or pedestrian gates with high-traffic demands, leveraging the lock's durability and automatic alignment features.
Integrated Access Control Systems
Pair with electronic access systems and use the optional status monitor for comprehensive security management.
Physical Profile
The lock measures 7.25" (184.15 mm) in width and 3.25" (82.55 mm) in depth, with a surface mount design that mounts directly onto gate structures. Its compact yet robust form factor accommodates standard gate hardware while providing substantial mechanical strength. The tamper-resistant cast housing ensures long-term durability in outdoor or harsh environments.
- Width
- 7.25" (184.15 mm)
- Depth
- 3.25" (82.55 mm)
Highlights
- 2,000 lbs holding force for high-security gate applications
- Operates under preload up to 100 lbs without performance loss
- Automatic dual-voltage – no manual field adjustment required
- Accepts standard mortise cylinder with Adams Rite MS cam for manual key override (cylinder and cam not included)
- Self-aligning receiver compensates for gate misalignment and sag (±1/2" horizontally)
- Tamper-resistant cast housing enhances durability and security
- Optional latch status monitor for security system integration
- Surface mount design for straightforward installation
- MagnaCare® lifetime replacement, no-fault warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | ASSA ABLOY |
| Manufacturer Part Number | GL1-FSM |
| Brand Name | Securitron |
| Product Series | GL1 |
| Product Model | GL1-FSM |
| Product Name | GL1 Gate Lock |
| Product Type | Electromechanical Lock |
| Physical Characteristics | |
| Width | 7.25" (184.15 mm) |
| Depth | 3.25" (82.55 mm) |
| Miscellaneous | |
| Application/Usage | Gate |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the holding force of the Securitron GL1-FSM gate lock?
The GL1-FSM delivers 2,000 lbs of holding force, providing robust security against forced entry attempts on gates. This high force rating makes it suitable for demanding applications where gate integrity is critical, such as in commercial or high-security environments.
Does this lock require manual voltage adjustment during installation?
No, the GL1-FSM features automatic dual-voltage operation, eliminating the need for field adjustments. This simplifies installation and ensures compatibility with common power supplies without requiring technical configuration, reducing setup time and potential errors.
Can this lock compensate for gate misalignment or sag?
Yes, it includes a self-aligning receiver that compensates for horizontal misalignment and gate sag up to ±1/2". This design helps maintain proper latch engagement even on gates that are not perfectly aligned, improving reliability and reducing installation challenges.
What mounting method does the GL1-FSM use?
This lock uses a surface mount design, allowing it to be installed directly onto gate surfaces without requiring complex recessed cuts. This mounting style facilitates straightforward installation on various gate types, from metal to wood constructions.
Is a manual key override supported?
Yes, the lock accepts a standard mortise cylinder with an Adams Rite MS cam for manual key override, providing a backup access method in case of power failure or system issues. Note that the cylinder and cam are not included and must be sourced separately.
What warranty coverage does this lock include?
The GL1-FSM comes with a MagnaCare® lifetime replacement, no-fault warranty. This comprehensive coverage ensures long-term reliability and support, protecting against defects and operational issues without time-based limitations, which is uncommon in security hardware.
