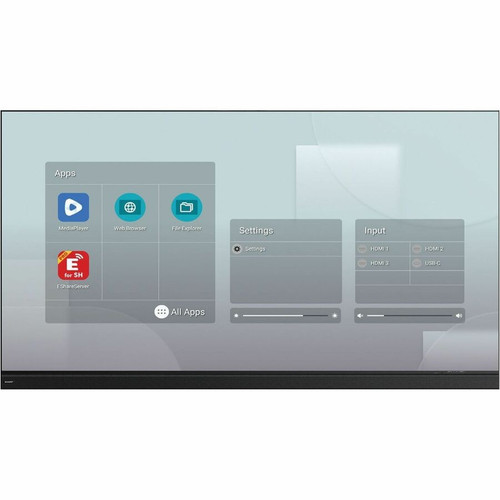

Sharp LD-A1651F LD-AF Series 165" All-in-One FHD LED Digital Signage Display - 13.75 ft - 4191 mm LCD - 1920 x 1080500 cd/m² - Android 13 - Wall
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Sharp LD-A1651F LD-AF Series 165" All-in-One FHD LED Digital Signage Display delivers a commanding visual presence for commercial and corporate environments. This large-format display combines a 13.75-foot LCD screen with Full HD 1920x1080 resolution, creating crisp, detailed imagery ideal for high-impact presentations, digital signage, and video walls.
Built around an ARM Cortex A55 quad-core processor and 4 GB of memory, the display runs Android 13 for smooth operation and app support. With 500 cd/m² brightness and a 6,500:1 dynamic contrast ratio, content remains vivid and readable even in well-lit rooms. The Direct View LED backlight ensures consistent illumination across the expansive screen area.
Relevant factors for this section include Ingress Protection (IP) Rating, Processor Manufacturer, Processor Type, Processor Speed. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This all-in-one digital signage display integrates display, processing, and connectivity into a single unit. The 13.75-foot (4191 mm) LCD panel features a 16:9 aspect ratio and landscape orientation, optimized for widescreen content. Backlight technology uses Direct View LED for enhanced brightness uniformity and a maximum LED life of 11.4 years.
Connectivity includes three HDMI 2.0 inputs, one USB 2.0 port, two USB 3.0 ports, Ethernet, and RS-232C for serial control. Integrated speakers provide audio output, while the 1080p scan format ensures compatibility with standard high-definition sources. The display supports an IP20 ingress protection rating for basic dust and moisture resistance.
Relevant factors for this section include Ingress Protection (IP) Rating, Processor Manufacturer, Processor Type, Processor Speed. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This display stands out with its massive 13.75-foot screen size, making it suitable for large venues where visibility from a distance is critical. The all-in-one design simplifies installation by combining the display panel, media player, and operating system into a single device.
High Brightness for Commercial Use
With 500 cd/m² brightness, the display maintains image clarity in brightly lit environments like conference rooms, lobbies, and retail spaces.
- Reduces glare and washout
- Ensures content visibility
Integrated Android Platform
Android 13 provides a familiar interface for app installation, content management, and remote updates without external media players.
- Supports signage apps
- Enables network management
Robust Connectivity Suite
Multiple HDMI, USB, and serial ports allow connection to various sources and peripherals, supporting flexible AV setups.
- 3x HDMI 2.0 inputs
- USB 3.0 for fast data transfer
Deployment / Use Cases
The Sharp LD-A1651F is engineered for commercial digital signage applications where large, bright displays are essential. Its size and resolution make it effective for commanding attention in high-traffic areas.
In conference rooms and meeting rooms, the display facilitates presentations and video conferences with clear visuals. For retail environments, it can showcase promotional content or brand messaging. The all-in-one design reduces cabling and external hardware, streamlining installation in fixed locations.
Relevant factors for this section include Ingress Protection (IP) Rating, Processor Manufacturer, Processor Type, Processor Speed. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Corporate Communications
Display announcements, schedules, or live data feeds in office lobbies, boardrooms, or common areas.
- Internal signage
- Real-time updates
Retail Advertising
Showcase product videos, promotions, or interactive content to engage customers in stores or showrooms.
- Dynamic advertising
- Customer engagement
Localization and Operating System
The Sharp LD-A1651F runs Android 13, providing a fully integrated digital signage platform without requiring external media players or separate computing hardware. This operating system supports a wide range of commercial signage applications, content management tools, and remote monitoring software directly on the display. Android 13 enables straightforward app installation from the Google Play Store, over-the-air updates for security and features, and compatibility with popular digital signage CMS platforms for scheduling and content distribution.
The display is designed for global commercial deployment with standard English language interfaces and regional compatibility for network settings. Its connectivity suite, including Ethernet and USB ports, supports localization through network-based configuration and content adaptation. The integrated OS handles common video, image, and web content formats used in corporate and retail environments worldwide, making it suitable for multinational installations where consistent digital signage management is required.
While the display does not include multiple physical keyboard localizations, its touch-free operation via remote control and network management minimizes localization dependencies. The Android platform's widespread adoption in commercial displays ensures familiarity for IT teams and signage operators, reducing training overhead. This all-in-one approach streamlines deployment in conference rooms, meeting spaces, and retail environments where quick setup and consistent operation are priorities.
Physical Profile
The display measures 12.05 feet wide, 85.67 inches high, and 2.96 inches deep, with a weight of approximately 459 pounds. Its slim profile and wall-mountable design allow for flush installation against walls, saving floor space. The unit operates indoors within a temperature range of 32°F to 104°F and humidity from 10% to 80%, suitable for climate-controlled environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 85.67" (2176.02 mm), 12.05 ft (3674.11 mm), 2.96" (75.18 mm), 459 lb (208198.90 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12.05 ft (3674.11 mm)
- Depth
- 2.96" (75.18 mm)
- Height
- 85.67" (2176.02 mm)
- Weight
- 459 lb (208198.90 g)
What's in the Box
The package includes the 165" LD-AF Series All-in-One FHD LED display, a remote control, and a wall mount for installation.
Package contents include 165" LD-AF Series All-in-one FHD LED Remote control Wall mount, 165" LD-AF Series All-in-one FHD LED. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 165" All-in-One FHD LED Digital Signage Display with 13.75-foot screen
- 1920x1080 Full HD resolution for crisp, detailed imagery
- 500 cd/m² brightness ensures visibility in bright environments
- ARM Cortex A55 quad-core processor with 4 GB memory
- Android 13 operating system for app support and management
- Three HDMI 2.0 inputs, USB 3.0 ports, Ethernet, and RS-232C
- Wall-mountable design with included mount for flexible installation
- Direct View LED backlight with 11.4-year maximum LED life
- IP20 rating for basic dust and moisture protection
- 2-year limited warranty for commercial reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Sharp Electronics |
| Manufacturer Part Number | LD-A1651F |
| Brand Name | Sharp |
| Product Series | LD-AF |
| Product Model | LD-A1651F |
| Product Name | 165" LD-AF Series All-in-one FHD LED |
| Product Type | Digital Signage Display |
| Technical Information | |
| Ingress Protection (IP) Rating | IP20 |
| Processor & Chipset | |
| Processor Manufacturer | ARM |
| Processor Type | Cortex A55 |
| Processor Speed | 1.50 GHz |
| Processor Core | Quad-core (4 Core) |
| Memory | |
| Standard Memory | 4 GB |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 13.75 ft (4191 mm) |
| Screen Size Class | 13.75 ft (4191 mm) |
| Display Screen Type | LCD |
| Display Resolution | 1920 x 1080 |
| Module Resolution | 320 x 180 |
| Orientation | Landscape |
| Backlight Technology | Direct View LED |
| Aspect Ratio | 16:9 |
| Maximum LED Life | 11.4 Year |
| Audio | |
| Speakers | Yes |
| Video | |
| Scan Format | 1080p |
| Dynamic Contrast Ratio | 6,500:1 |
| Brightness | 500 cd/m² |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 2 |
| Number of HDMI Inputs | 3 |
| RS-232C Input | Yes |
| Number of HDMI 2.0 Ports | 3 |
| Software | |
| Operating System | Android 13 |
| Physical Characteristics | |
| Mount Type | Wall Mountable |
| Height | 85.67" (2176.02 mm) |
| Width | 12.05 ft (3674.11 mm) |
| Depth | 2.96" (75.18 mm) |
| Weight (Approximate) | 459 lb (208198.90 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 80% |
| Miscellaneous | |
| Package Contents | 165" LD-AF Series All-in-one FHD LED Remote control Wall mount |
| Application/Usage | Conference Room,Meeting Room |
| Indoor/Outdoor | Indoor |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What screen size is listed?
It features a display specification of 13.75 ft (4191 mm), giving you clear visuals for work and media use.
What resolution or display format is specified?
It features a display specification of 1920 x 1080, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
The listed power specification is 500 cd/m², which helps position the unit for the right load level and installation role.
What input or connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
Does the display support VESA mounting or adjustment features?
It features a display specification of Wall Mountable, giving you clear visuals for work and media use.
What panel or display technology is mentioned?
It features a display specification of LCD, giving you clear visuals for work and media use.
