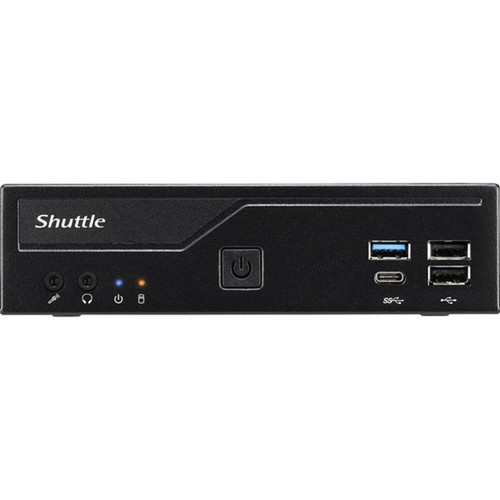

Shuttle DH610 XPC slim Barebone System - Socket LGA-1700 - 64GB DDR4 - Slim PC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered around Intel's H610 platform, the DH610 provides a robust foundation for 12th and 13th generation Intel processors. The system supports dual-channel DDR4 memory configurations up to 64GB capacity, with memory speeds reaching 3200 MT/s for responsive system performance.
Storage flexibility comes via a Serial ATA/600 controller for 2.5" drives, complemented by M.2 expansion capabilities for NVMe storage. Graphics output is handled through shared DDR4 memory architecture with HDMI connectivity, while networking features both 2.5GbE and Gigabit Ethernet ports for versatile connectivity options.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DH610 excels in deployment scenarios where physical space is at a premium but computing requirements remain substantial. Its slim profile and comprehensive connectivity make it equally suitable for digital signage, point-of-sale systems, and compact office workstations.
Compact Form Factor
Measuring just 1.69" in height, the system occupies minimal desk or mounting space while delivering full desktop computing capabilities.
- VESA mount compatible for display mounting
- Black finish for professional aesthetics
- Lightweight at 2.87 lbs for easy deployment
Modern Connectivity Suite
Eight USB ports including USB 3.2 Gen 1 Type-C provide extensive peripheral support, while dual Ethernet ports offer networking redundancy and high-speed options.
- Front-accessible USB Type-C port
- 2.5GbE for high-bandwidth applications
- HDMI output for display connectivity
Platform Flexibility
Support for Windows 10/11 64-bit and Linux operating systems allows for diverse software environments, while the barebone design enables customized component selection.
- Multi-language documentation included
- Driver support for Windows 64-bit
- Compatible with various Intel processor tiers
Deployment / Use Cases
The Shuttle DH610's combination of compact dimensions, modern connectivity, and processor flexibility makes it ideal for numerous commercial and light industrial applications. Its VESA mounting capability allows for clean, space-saving installations behind displays or under desks.
In retail environments, the system serves well as a point-of-sale terminal or digital signage controller, with sufficient processing power for multimedia content and transaction processing. For office deployments, it functions as a space-efficient workstation for general productivity applications, supported by its comprehensive USB connectivity and dual Ethernet ports.
Digital Signage & Kiosk Systems
The slim profile and VESA mounting support make the DH610 perfect for powering digital displays in retail, hospitality, or corporate environments.
Compact Office Workstations
With support for modern Intel processors and up to 64GB RAM, this system handles office productivity suites and business applications efficiently while minimizing desk footprint.
Physical Profile
The DH610 employs a sleek black chassis measuring 6.50" wide by 7.48" deep by 1.69" high, achieving a compact footprint suitable for space-constrained deployments. Weighing approximately 2.87 pounds, the system remains highly portable for installation flexibility.
VESA mounting compatibility allows for secure attachment to displays or mounting arms, while the included brackets support both 75mm and 100mm standards. The black finish maintains a professional appearance across various environments.
- Width
- 6.50" (165 mm)
- Depth
- 7.48" (190 mm)
- Height
- 1.69" (43 mm)
- Weight
- 2.87 lb (1300 g)
What's in the Box
The barebone system ships complete with all necessary components for assembly and installation.
Highlights
- Supports Intel LGA-1700 socket processors including Core i9, i7, i5, i3, Pentium Gold, and Celeron
- Accommodates up to 64GB DDR4-3200 memory across two slots for demanding applications
- Features 2.5 Gigabit Ethernet and Gigabit Ethernet ports for versatile networking options
- Includes eight USB ports with USB 3.2 Gen 1 Type-C front accessibility
- Compact slim PC form factor measures just 1.69" high for space-constrained deployments
- VESA mount compatible with included brackets for 75/100mm display mounting
- Supports Windows 10/11 64-bit and Linux operating systems
- Energy Star certified and RoHS compliant for environmental responsibility
- Black chassis finish maintains professional appearance across environments
- Includes comprehensive installation hardware and documentation for easy setup
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DH610 |
| Brand Name | Shuttle |
| Product Line | XPC slim |
| Product Model | DH610 |
| Product Name | XPC slim DH610 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core i9,Core i7,Core i5,Core i3,Pentium Gold,Celeron |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H610 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen 1 Type-C |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Slim PC |
| Height | 1.69" (43 mm) |
| Width | 6.50" (165 mm) |
| Depth | 7.48" (190 mm) |
| Weight (Approximate) | 2.87 lb (1300 g) |
| Miscellaneous | |
| Package Contents | XPC slim DH610 Barebone System Multi-Language User Guide (EN, DE, FR, ES, JP, KR, SC, TC) VESA Mount For 75/100 mm Standard (two metal brackets) 4 x Screws M3 x 5 mm (screws together VESA mount and PC) 4 x Screws M4 x 10 mm (to affix VESA mount on the PC) 4 x Screws M3 x 4 mm (to mount a 2.5" storage device into the bay) 2 x Screws M3 x 5 mm (silver colour, to mount two M.2 cards) Driver DVD (Windows 64-bit) Serial ATA Cable For 2.5" Drive Including Power Cable External 120 W Power Adapter With Power Cord Protection Cap For CPU Socket (do not use if heatpipe or fan is mounted) Heatsink Compound |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processors are compatible with the Shuttle DH610 barebone system?
The DH610 supports Intel's LGA-1700 socket processors, including Core i9, Core i7, Core i5, Core i3, Pentium Gold, and Celeron series CPUs. This compatibility covers 12th and 13th generation Intel processors, providing flexibility for performance scaling from entry-level to high-performance configurations.
How much memory can I install in this barebone system?
The system supports up to 64GB of DDR4 SDRAM across two memory slots. It utilizes DDR4-3200/PC4-25600 memory modules, supporting dual-channel configurations for optimal memory bandwidth. This capacity accommodates demanding applications and multitasking scenarios in commercial deployments.
What operating systems are supported by the DH610?
The barebone system supports Windows 10 64-bit, Windows 11 64-bit, and various Linux distributions. Driver support is included for Windows 64-bit environments via the provided DVD, while Linux compatibility ensures flexibility for specialized applications and development environments.
What connectivity options does the system provide?
Connectivity includes eight USB ports with three USB 3.2 Gen 1 ports and one front-accessible USB 3.2 Gen 1 Type-C port. Networking features both 2.5 Gigabit Ethernet and Gigabit Ethernet ports, while display output is handled through a rear HDMI connection. The system also includes a Serial ATA/600 controller for storage expansion.
Can I mount the DH610 behind a display or monitor?
Yes, the system is VESA mount compatible and includes mounting brackets for both 75mm and 100mm standards. The compact 1.69" height profile makes it ideal for display mounting applications, with all necessary screws and hardware included in the package for secure installation.
What power supply does the system require?
The DH610 includes an external 120W power adapter that supports 120-230V AC input. This adapter provides sufficient power for the supported processor range and system components while maintaining energy efficiency. The system is Energy Star certified and complies with Energy-related Products Directive (ErP) standards.
