Shuttle DH670 XPC Slim Barebone System - LGA1700 Socket - Intel H670 - Up to 64GB DDR4 - 8x USB - Gigabit Ethernet - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DH670's technical architecture centers on the LGA1700 socket and Intel H670 platform, which provides robust connectivity and expansion for a slim form factor. This chipset enables PCIe lane distribution, USB connectivity, and memory management optimized for modern Intel processors. The system supports 64-bit processing and dual-channel DDR4-3200 memory, ensuring efficient data handling for office applications, light creative work, or digital signage tasks.
Storage flexibility is provided through the integrated Serial ATA/600 controller, compatible with 2.5" or 3.5" drives, while the shared graphics memory leverages system RAM for display output up to 4K via the rear HDMI port. Networking is handled by a dedicated Gigabit Ethernet controller, delivering reliable wired connectivity for business environments.
Key Product Advantages
This barebone system excels in deployment scenarios where compact size, customization flexibility, and reliable performance are priorities. Its slim PC design minimizes desk footprint without sacrificing essential connectivity, while the comprehensive package contents reduce setup time and additional purchases.
Customization Ready
The DH670 arrives as a barebone kit, allowing you to select the exact processor, memory, storage, and operating system that match your performance requirements and budget. This flexibility makes it suitable for standardized office deployments, point-of-sale systems, or home theater PCs where specific components are preferred.
- Choose compatible Intel LGA1700 CPU
- Add up to 64GB DDR4 RAM
- Install SATA storage drives
- Select Windows 10/11 or Linux OS
Space-Efficient Design
With dimensions of 6.50" wide x 7.50" deep x 1.70" high and a weight under 3 pounds, this system fits easily in constrained spaces. The black finish and minimalist aesthetic blend into professional or home environments, and the VESA mount capability enables clean, out-of-sight installations.
- Slim PC form factor
- VESA mount included
- Low-profile black chassis
- Portable for relocation
Deployment / Use Cases
The Shuttle DH670 is engineered for environments where a compact, customizable desktop solution is needed. Its balance of connectivity, expansion options, and small footprint makes it adaptable to various roles, from everyday office work to specialized digital applications.
In office settings, it serves well as a general-purpose workstation for productivity software, web browsing, and communication tools, with Gigabit Ethernet ensuring stable network performance. For retail or hospitality, its slim profile and VESA mounting support allow discreet placement behind displays or under counters, ideal for point-of-sale terminals or digital menu boards. Home users can leverage it as a media center or compact gaming PC foundation, utilizing the HDMI output and multiple USB ports for peripherals.
Physical Profile

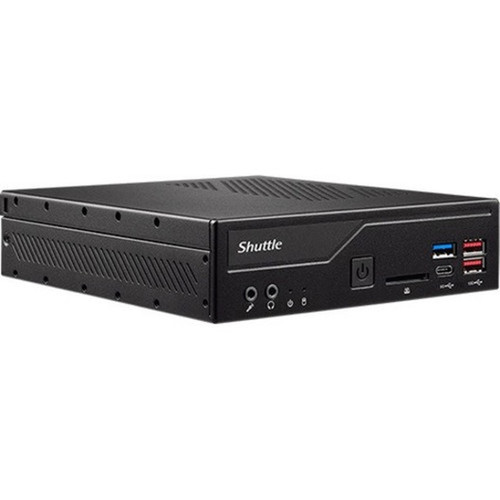

This barebone system features a sleek black chassis with a slim PC form factor measuring 1.70" in height, 6.50" in width, and 7.50" in depth. Weighing approximately 2.87 pounds, it is lightweight yet sturdy, constructed to accommodate standard internal components while maintaining a low profile. The black finish provides a professional appearance suitable for corporate, retail, or home settings.

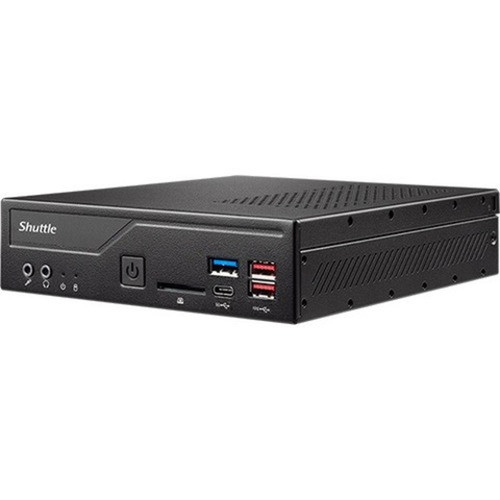

The design includes thoughtful details such as front-panel USB Type-C and rear-port placement for easy cable management. The included VESA mount and hardware allow secure attachment to monitor backs or wall mounts, enabling clean, space-saving installations where desk real estate is limited.
- Width
- 6.50" (165.10 mm)
- Depth
- 7.50" (190.50 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 2.87 lb (1300 g)
What's in the Box
The package includes all necessary components to assemble the barebone system, along with accessories for mounting and setup.
Highlights
- Supports Intel LGA1700 processors including Core i3/i5/i7/i9, Celeron, and Pentium Gold
- Up to 64GB DDR4-3200 memory across two slots for smooth multitasking
- Intel H670 chipset provides modern connectivity and platform features
- 8 USB ports (3x USB 3.2 Gen 1, 4x USB 3.2 Gen 2, 1x USB Type-C) for peripheral flexibility
- Gigabit Ethernet ensures fast, reliable wired network performance
- Slim PC form factor (1.70" H) saves space in office, retail, or home environments
- Includes VESA mount for display or wall mounting options
- Compatible with Windows 10, Windows 11, and Linux operating systems
- 120W power supply supports efficient operation with auto-sensing 120V/230V input
- Energy Star certified and RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DH670 |
| Brand Name | Shuttle |
| Product Line | XPC slim |
| Product Series | DH6xx |
| Product Model | DH670 |
| Product Name | XPC slim DH670 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Core i3,Core i5,Core i7,Core i9,Celeron,Pentium Gold |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | H670 |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | HD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Total Number of Expansion Slots | 2 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | USB 3.2 Gen 1 (Type-C x 1) |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Slim PC |
| Height | 1.70" (43.18 mm) |
| Width | 6.50" (165.10 mm) |
| Depth | 7.50" (190.50 mm) |
| Weight (Approximate) | 2.87 lb (1300 g) |
| Miscellaneous | |
| Package Contents | XPC slim DH670 Barebone System Power Adapter Quick Guide Screw Package Power Cord Driver DVD VESA Mount VESA Mount Quick Guide Thermal Grease HDD Screw Pack |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processors are compatible with the Shuttle DH670 barebone system?
The DH670 supports Intel LGA1700 socket processors, including 12th and 13th Gen Core i3, i5, i7, i9, as well as Celeron and Pentium Gold models. This range allows you to choose a CPU that matches your performance needs, from basic computing to more intensive multitasking. The system does not include a processor; you must purchase one separately that fits the LGA1700 socket and is compatible with the Intel H670 chipset.
How much memory can I install, and what type does it use?
This barebone system supports up to 64GB of DDR4 SDRAM across two memory slots. It uses DDR4-3200/PC4-25600 memory modules, which provide good performance for office applications and light multimedia tasks. You can install two 32GB DDR4 sticks to reach the maximum capacity, ensuring smooth operation when running multiple programs or handling larger datasets.
What operating systems can I run on the DH670?
The DH670 is compatible with Windows 10 x64, Windows 11 x64, and various Linux distributions. This flexibility lets you deploy the system in different environments, whether for business software on Windows or open-source applications on Linux. The system does not come with an OS pre-installed; you need to install your chosen operating system separately, using the included driver DVD for Windows setups.
What connectivity and expansion options are available?
Connectivity includes 8 USB ports (3 USB 3.2 Gen 1, 4 USB 3.2 Gen 2, and 1 front USB 3.2 Gen 1 Type-C), Gigabit Ethernet, and a rear HDMI port for display output. Expansion options consist of one internal bay for storage drives and two expansion slots for additional cards. These features provide ample ports for peripherals like keyboards, mice, external drives, and network connectivity, suitable for office or media center use.
Can I mount this system behind a monitor or on a wall?
Yes, the DH670 includes a VESA mount and mounting hardware, allowing you to attach it securely to the back of a compatible monitor or to a wall bracket. This mounting capability helps save desk space and enables clean installations in retail, office, or home settings. The slim form factor and lightweight design make it well-suited for such mounted deployments.
What is included in the box, and what do I need to add?
The box contains the XPC slim DH670 Barebone System (chassis with motherboard and power supply), power adapter, quick guide, screw package, power cord, driver DVD, VESA mount, VESA mount quick guide, thermal grease, and HDD screw pack. You need to add a compatible Intel LGA1700 processor, DDR4 memory modules, a storage drive (SSD or HDD), and an operating system to complete the build. Optional components like a Wi-Fi card can be added via the expansion slots.
