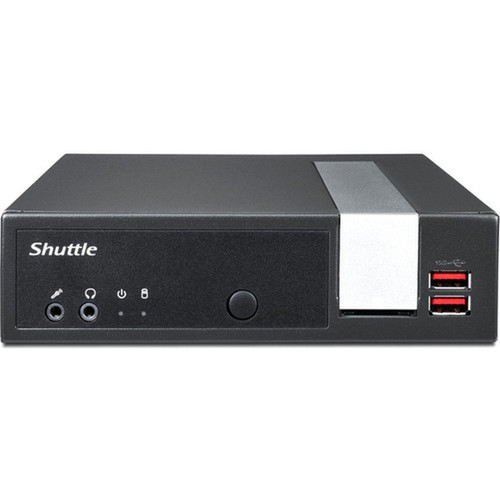

Shuttle DL20NV2 XPC Slim Barebone PC - Celeron N4505 Dual-Core 2GHz - 16GB DDR4 - 2. 5GbE - Slim PC Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the DL20NV2 sits Intel's Celeron N4505 processor featuring two compute cores with a base frequency of 2.0GHz and turbo capability up to 2.90GHz. This 64-bit processor utilizes Intel's integrated UHD Graphics with shared system memory, providing adequate visual performance for desktop applications and media playback without requiring discrete graphics hardware.
Memory architecture supports modern DDR4-2933 modules across two accessible slots, with a maximum capacity of 16GB. Storage connectivity is handled through a Serial ATA/600 controller, while expansion options include a single internal bay for additional drives or peripherals. The platform's networking capabilities center on a 2.5 Gigabit Ethernet controller that delivers enhanced bandwidth over standard Gigabit connections.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Supported, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This barebone system excels in deployment scenarios where physical space is limited but reliable computing performance is required. The compact chassis design allows installation in areas where traditional desktop systems cannot fit, while maintaining full PC functionality through comprehensive I/O options.
Modern Connectivity Suite
Includes both USB 3.2 Gen 2 and Gen 1 ports alongside 2.5 Gigabit Ethernet for faster data transfers and network throughput compared to standard Gigabit solutions.
- 2x USB 3.2 Gen 2 (10Gbps)
- 2x USB 3.2 Gen 1 (5Gbps)
- 2.5GbE network interface
Flexible Display Options
Supports simultaneous display output through HDMI and VGA ports, accommodating both modern monitors and legacy display equipment without additional adapters.
- HDMI for digital displays
- VGA for analog monitors
- Intel UHD Graphics engine
Broad OS Compatibility
Officially supports Windows 10 64-bit, Windows 11 64-bit, and various Linux distributions, providing deployment flexibility across different IT environments and use cases.
- Windows 10/11 certified
- Linux compatible
- 64-bit architecture
Deployment / Use Cases
The DL20NV2's combination of compact dimensions, efficient power consumption, and adequate processing capability makes it ideal for embedded and space-constrained applications. Digital signage implementations benefit from the system's small footprint, HDMI output, and ability to operate continuously in retail environments or public spaces.
Office workstations and task-oriented computing deployments can leverage the platform's connectivity options and Windows compatibility for general productivity applications. The system also serves well in light industrial settings as a control terminal or monitoring station, where its 120/230V AC power input flexibility accommodates different regional electrical standards.
Physical Profile
The black Slim PC chassis measures 1.69 inches in height, 6.50 inches in width, and 7.48 inches in depth, presenting a minimal footprint for integration into tight spaces. Weighing approximately 1.76 pounds, the lightweight design facilitates mounting in various orientations and locations. The compact form factor does not compromise connectivity, with rear-panel ports including HDMI, VGA, Ethernet, and multiple USB interfaces accessible despite the reduced dimensions.
- Width
- 6.50" (165 mm)
- Depth
- 7.48" (190 mm)
- Height
- 1.69" (43 mm)
- Weight
- 1.76 lb (800 g)
Highlights
- Celeron N4505 dual-core processor with 2.0GHz base clock and 2.90GHz turbo capability
- Supports up to 16GB DDR4-2933 memory across two accessible slots
- 2.5 Gigabit Ethernet provides enhanced network bandwidth over standard Gigabit
- Comprehensive USB connectivity with 4x USB 3.2 ports (Gen 1 and Gen 2)
- Dual display outputs via HDMI and VGA interfaces
- Compact Slim PC form factor ideal for space-constrained deployments
- Officially supports Windows 10, Windows 11, and Linux operating systems
- 40W maximum power consumption with Energy Star certification
- Black chassis with dimensions of 6.50" × 7.48" × 1.69"
- Single Serial ATA/600 controller for storage expansion
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DL20NV2 |
| Brand Name | Shuttle |
| Product Line | XPC slim |
| Product Model | DL20NV2 |
| Product Name | Barebone XPC slim DL20NV2 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket BGA-1338 |
| Processor Supported | Pentium,Celeron |
| Processor Type | Celeron |
| Processor Model | N4505 |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 2 GHz |
| Maximum Turbo Speed | 2.90 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Total Number of Memory Slots | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| Number of Onboard USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 40 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Slim PC |
| Height | 1.69" (43 mm) |
| Width | 6.50" (165 mm) |
| Depth | 7.48" (190 mm) |
| Weight (Approximate) | 1.76 lb (800 g) |
| Miscellaneous | |
| Energy Star | Yes |
User Manual
FAQ
What processor does the Shuttle DL20NV2 use?
The DL20NV2 features an Intel Celeron N4505 dual-core processor with a base frequency of 2.0GHz and maximum turbo speed of 2.90GHz. This 64-bit processor utilizes Intel's integrated UHD Graphics and supports modern instruction sets for efficient performance in business and light computing applications.
How much memory can this barebone system support?
This system supports up to 16GB of DDR4-2933 memory across two available slots. The memory architecture utilizes standard DDR4 SDRAM modules, providing adequate capacity for multitasking workloads while maintaining compatibility with widely available memory components.
What operating systems are compatible with the DL20NV2?
The platform officially supports Windows 10 64-bit, Windows 11 64-bit, and various Linux distributions. This broad compatibility allows deployment flexibility across different IT environments, from corporate Windows deployments to specialized Linux-based applications.
What connectivity options does this barebone PC offer?
Connectivity includes 2.5 Gigabit Ethernet, 7 total USB ports (2x USB 3.2 Gen 2, 2x USB 3.2 Gen 1, 1x USB 2.0), HDMI and VGA display outputs, and a single expansion bay. The 2.5GbE network interface provides enhanced bandwidth compared to standard Gigabit Ethernet.
How compact is this barebone system?
The Slim PC form factor measures 1.69 inches in height, 6.50 inches in width, and 7.48 inches in depth, weighing approximately 1.76 pounds. These compact dimensions make the system suitable for installations where space is limited, such as behind monitors or in equipment cabinets.
What power requirements does the DL20NV2 have?
The system operates with a 40W maximum power supply and accepts input voltages of 120V AC or 230V AC, providing flexibility for different regional electrical standards. Energy Star certification indicates efficient power utilization suitable for continuous operation scenarios.
