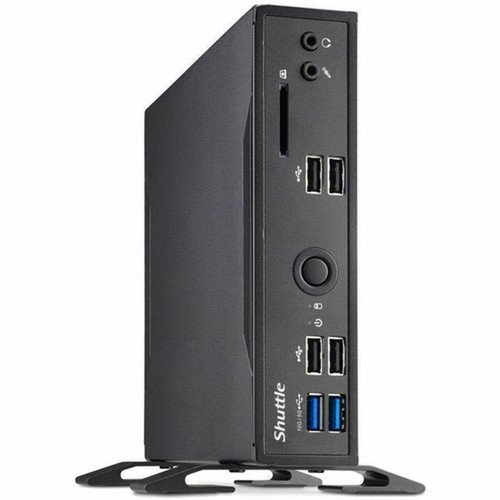

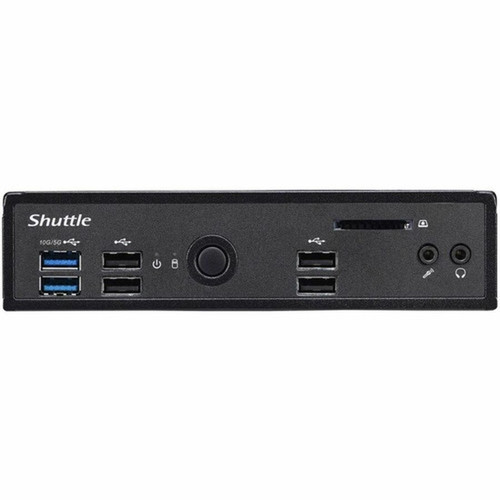

Shuttle DS20UV2 XPC Slim Barebone System - Intel Celeron 5205U Dual-core 1. 9GHz - 64GB DDR4 - Gigabit Ethernet - Windows/Linux Compatible
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DS20UV2 features Intel's Celeron 5205U processor with dual-core architecture operating at 1.90 GHz, providing efficient performance for routine computing workloads. The processor supports 64-bit processing and integrates Intel UHD Graphics for display output through HDMI and VGA interfaces.
Memory support extends to 64 GB of DDR4 SDRAM running at DDR4-3200 speeds, ensuring responsive multitasking capabilities. Storage connectivity includes both Serial ATA/600 and NVMe interfaces, offering flexibility for traditional hard drives or modern solid-state storage solutions.
Relevant factors for this section include Number of Processors Supported, Processor Socket, Processor Manufacturer, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DS20UV2 combines compact design with practical connectivity and customization options that address common deployment challenges in space-constrained environments.
Space-Efficient Design
With dimensions of 6.50" × 7.87" × 1.56" and weighing just 3.31 pounds, this slim PC form factor maximizes usable space while maintaining full computing functionality.
- Minimal desktop footprint
- Easy mounting options
- Portable when needed
Comprehensive Connectivity
Nine USB ports (including four USB 3.2 Gen 1 ports), dual Gigabit Ethernet, HDMI, and VGA outputs provide extensive peripheral and network connectivity.
- High-speed data transfer
- Network redundancy support
- Multiple display options
Flexible Configuration
As a barebone system, the DS20UV2 allows IT teams to select optimal memory, storage, and operating system components for specific application requirements.
- Memory up to 64 GB
- SATA and NVMe storage options
- Windows or Linux OS choice
Deployment / Use Cases
The Shuttle DS20UV2's combination of compact size, reliable performance, and flexible configuration makes it suitable for various commercial and light industrial applications where traditional desktop systems would consume excessive space.
In retail environments, the system serves well as a point-of-sale terminal or digital signage controller, with its small footprint allowing discreet placement under counters or behind displays. For office deployments, it functions effectively as a general workstation for productivity applications, web browsing, and communication tools.
Digital Signage & Kiosks
The slim profile and multiple display outputs make this system ideal for driving digital signage displays, interactive kiosks, or information terminals in public spaces.
Office Workstations
With support for Windows 10/11 and Linux, plus comprehensive connectivity, the DS20UV2 handles typical office productivity applications while minimizing desk space requirements.
Physical Profile
The DS20UV2 employs a sleek black Slim PC form factor measuring 6.50" wide × 7.87" deep × 1.56" high (165 × 200 × 39.5 mm), with a weight of approximately 3.31 pounds (1500 g). This compact design facilitates placement in space-constrained environments while maintaining accessibility to all ports and interfaces. The system's Energy Star certification indicates efficient power consumption characteristics suitable for continuous operation scenarios.
- Width
- 6.50" (165 mm)
- Depth
- 7.87" (200 mm)
- Height
- 1.56" (39.50 mm)
- Weight
- 3.31 lb (1500 g)
Highlights
- Intel Celeron 5205U dual-core 1.90 GHz processor for reliable everyday computing
- Supports up to 64 GB DDR4-3200 memory for responsive multitasking
- Compact Slim PC form factor (6.50" × 7.87" × 1.56") ideal for space-constrained deployments
- Comprehensive connectivity with 9 USB ports (4x USB 3.2 Gen 1) and dual Gigabit Ethernet
- Flexible storage options with Serial ATA/600 and NVMe interfaces
- Intel UHD Graphics with HDMI and VGA display outputs
- Compatible with Windows 10 x64, Windows 11 x64, and Linux operating systems
- Energy Star certified for efficient power consumption
- Black finish for professional appearance in office and commercial environments
- 65 W power supply with 120/230 V AC input voltage support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Shuttle, Inc |
| Manufacturer Part Number | DS20UV2 |
| Brand Name | Shuttle |
| Product Line | XPC slim |
| Product Model | DS20UV2 |
| Product Name | XPC slim DS20UV2 Barebone System |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket BGA-1528 |
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Processor Model | 5205U |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 1.90 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Interfaces/Ports | |
| HDMI (Rear) | Yes |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of Onboard USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Windows 10 x64,Windows 11 x64,Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Slim PC |
| Height | 1.56" (39.50 mm) |
| Width | 6.50" (165 mm) |
| Depth | 7.87" (200 mm) |
| Weight (Approximate) | 3.31 lb (1500 g) |
| Miscellaneous | |
| Energy Star | Yes |
User Manual
FAQ
What processor does the Shuttle DS20UV2 use?
The DS20UV2 features an Intel Celeron 5205U dual-core processor operating at 1.90 GHz. This processor supports 64-bit processing and provides efficient performance for everyday computing tasks, office applications, and light commercial workloads while maintaining low power consumption.
How much memory can this barebone system support?
The DS20UV2 supports up to 64 GB of DDR4 SDRAM memory running at DDR4-3200 speeds (PC4-25600). This substantial memory capacity allows for responsive multitasking and smooth operation of multiple applications simultaneously, making the system suitable for more demanding office environments.
What storage interfaces are available on this system?
The system provides both Serial ATA/600 and NVMe storage interfaces, offering flexibility for traditional hard drives or modern solid-state drives. This dual-interface approach allows IT professionals to choose optimal storage solutions based on performance requirements, capacity needs, and budget considerations.
What operating systems are compatible with the DS20UV2?
The barebone system is compatible with Windows 10 x64, Windows 11 x64, and various Linux distributions. This operating system flexibility enables deployment in diverse environments, from standard office workstations running Windows to specialized applications utilizing Linux-based solutions.
What connectivity options does this slim PC offer?
The DS20UV2 provides comprehensive connectivity including nine USB ports (four USB 3.2 Gen 1 ports and one USB 2.0 port), dual Gigabit Ethernet ports for network connectivity, HDMI and VGA display outputs, and one expansion bay. This extensive connectivity supports multiple peripherals, network configurations, and display setups.
How compact is the DS20UV2, and where is it typically deployed?
With dimensions of 6.50" wide × 7.87" deep × 1.56" high and weighing just 3.31 pounds, the DS20UV2 offers a significantly smaller footprint than traditional desktop systems. This compact form factor makes it ideal for space-constrained deployments such as point-of-sale systems, digital signage controllers, kiosks, and office workstations where desk space is limited.
