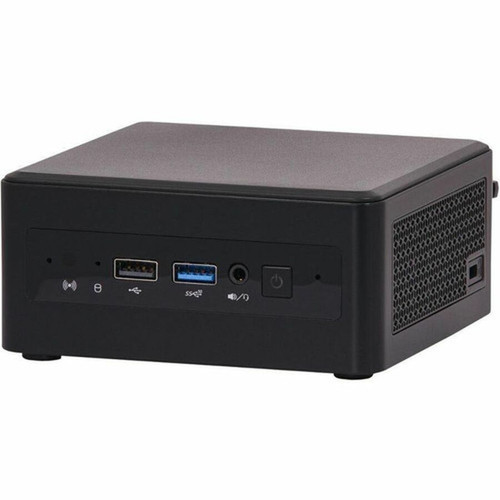

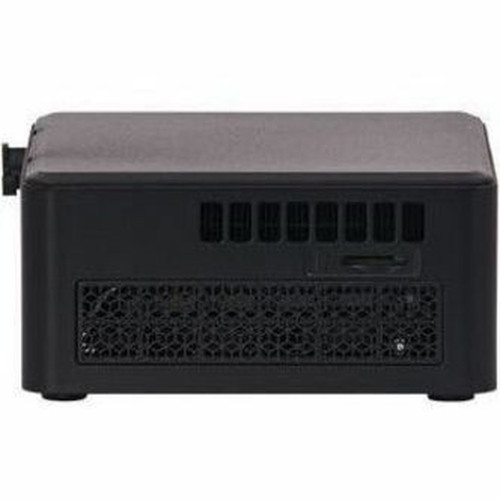

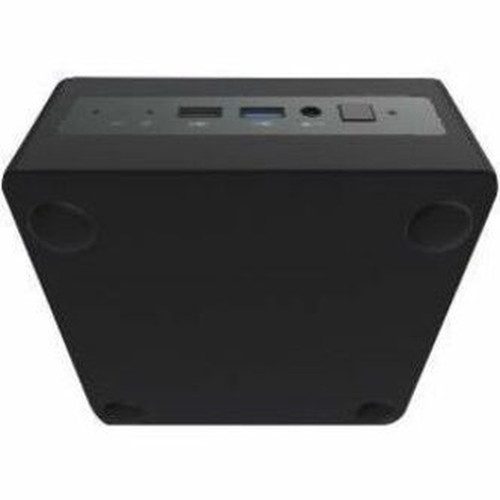

SimplyNUC 91P-CJ28-001 Moonstone CBM3r5MS Desktop Computer - AMD Ryzen 5 7535U - 16 GB RAM - 512 GB NVMe SSD - Windows 11 Pro - Small Form Factor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Moonstone CBM3r5MS is AMD's Ryzen 5 7535U processor, a hexa-core CPU with a base clock of 2.90 GHz and maximum turbo speed of 4.55 GHz. This mobile processor architecture is paired with an AMD chipset and 16 GB of DDR5 SDRAM, providing efficient performance for business applications.
Storage is handled by a 512 GB PCI Express NVMe 4.0 x4 solid-state drive in the M.2 form factor, offering rapid boot times and fast file access. The system utilizes shared graphics memory with AMD's Radeon 660M Graphics controller, which leverages DDR5 technology for responsive visual performance.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Moonstone CBM3r5MS combines compact design with capable hardware, making it ideal for space-constrained business environments. The small form factor enables efficient workspace utilization while still providing the connectivity and performance needed for modern office tasks.
Comprehensive Connectivity
With 2.5 Gigabit Ethernet, Wi-Fi 6 (802.11ax), Bluetooth, and six USB ports including two USB4 and three USB 3.2 Gen 2 ports, this system maintains strong wired and wireless connections for peripherals and networking.
- 2.5 Gb Ethernet for stable wired connectivity
- Wi-Fi 6 for high-speed wireless access
- Multiple USB ports for peripheral expansion
Business-Ready Features
Windows 11 Pro provides enhanced security and management capabilities for business environments, while the security slot offers physical theft protection. The 90 W power supply ensures efficient operation with minimal energy consumption.
- Windows 11 Pro for business management
- Security slot for physical protection
- Energy-efficient 90 W power design
Deployment / Use Cases
This SimplyNUC desktop is particularly well-suited for office environments where desk space is limited but performance requirements remain substantial. The compact footprint allows placement in tight spaces while still delivering the computing power needed for productivity applications.
Common deployment scenarios include front-office workstations, reception areas, digital signage controllers, and point-of-sale systems. The system's business designation makes it appropriate for corporate environments requiring reliable performance for document processing, web applications, communication tools, and light creative work.
Space-Constrained Offices
The small form factor design makes this system ideal for crowded office environments, retail counters, or reception areas where traditional desktop towers would be impractical.
Business Productivity Hub
With Windows 11 Pro and capable hardware, this computer serves as an efficient hub for office productivity, handling multiple applications simultaneously while maintaining responsive performance.
Localization and Operating System
The SimplyNUC Moonstone CBM3r5MS comes pre-installed with Windows 11 Pro, Microsoft's professional operating system designed for business environments. Windows 11 Pro includes enhanced security features, remote management capabilities, and productivity tools that support professional workflows.
While the system description doesn't specify keyboard localization, Windows 11 Pro supports multiple language packs and regional settings that can be configured during setup or through system preferences to match user requirements.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
What's in the Box
The package includes the complete SimplyNUC Moonstone CBM3r5MS desktop computer system ready for setup and use.
Highlights
- AMD Ryzen 5 7535U hexa-core processor with 2.90 GHz base speed and 4.55 GHz turbo
- 16 GB of DDR5 SDRAM for smooth multitasking and application performance
- 512 GB PCI Express NVMe 4.0 x4 SSD for fast boot times and rapid file access
- AMD Radeon 660M Graphics with shared DDR5 memory for HD video and graphics tasks
- Windows 11 Pro operating system with business management features
- Small form factor design for space-efficient office placement
- 2.5 Gigabit Ethernet plus Wi-Fi 6 (802.11ax) and Bluetooth connectivity
- Six USB ports including two USB4 and three USB 3.2 Gen 2 ports
- 90 W power supply for energy-efficient operation
- Security slot for physical theft protection
Specifications
| Specifications | |
|---|---|
| Manufacturer | SimplyNUC |
| Manufacturer Part Number | 91P-CJ28-001 |
| Brand Name | SimplyNUC |
| Product Line | Moonstone |
| Product Model | CBM3r5MS |
| Product Name | Moonstone CBM3r5MS Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen 5 |
| Processor Model | 7535U |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 2.90 GHz |
| Maximum Turbo Speed | 4.55 GHz |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon 660M Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | i225-V |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports (Front) | 1 |
| Number of USB4 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Form Factor | Small Form Factor |
| Miscellaneous | |
| Package Contents | Moonstone CBM3r5MS Desktop Computer Power Supply |
| Application/Usage | Business |
| Features | Security Slot |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
What processor does the SimplyNUC Moonstone CBM3r5MS use?
This desktop computer features an AMD Ryzen 5 7535U processor, a hexa-core CPU with six processing cores. It operates at a base clock speed of 2.90 GHz and can reach up to 4.55 GHz in turbo mode, providing responsive performance for business applications and multitasking scenarios.
How much memory and storage does this system include?
The SimplyNUC Moonstone comes with 16 GB of DDR5 SDRAM installed, which supports running multiple demanding applications simultaneously. For storage, it includes a 512 GB PCI Express NVMe 4.0 x4 solid-state drive in the M.2 form factor, offering fast data access and sufficient capacity for operating systems, applications, and essential files.
What graphics capabilities does this desktop computer offer?
Graphics are handled by the integrated AMD Radeon 660M Graphics controller, which utilizes shared system memory (DDR5 SDRAM). This graphics solution supports HD video playback, photo editing, and complex office applications through adaptive memory usage, making it suitable for business productivity tasks that require visual processing.
What connectivity options are available on this system?
The Moonstone CBM3r5MS provides comprehensive connectivity with 2.5 Gigabit Ethernet via an i225-V controller, Wi-Fi 6 (IEEE 802.11ax) for wireless networking, and Bluetooth for peripheral connections. It includes six USB ports total: two USB4 ports, three USB 3.2 Gen 2 ports, and one USB 2.0 port on the front for convenient access.
What operating system comes pre-installed on this computer?
This system comes with Windows 11 Pro pre-installed, Microsoft's professional operating system designed for business environments. Windows 11 Pro includes enhanced security features, remote management capabilities, and productivity tools that support professional workflows in office settings.
How does the small form factor design benefit office deployment?
The small form factor design enables efficient workspace utilization by significantly reducing the desktop's physical footprint compared to traditional tower computers. This compact size allows placement in space-constrained environments like crowded offices, reception areas, or retail counters while still delivering the performance needed for business applications.
