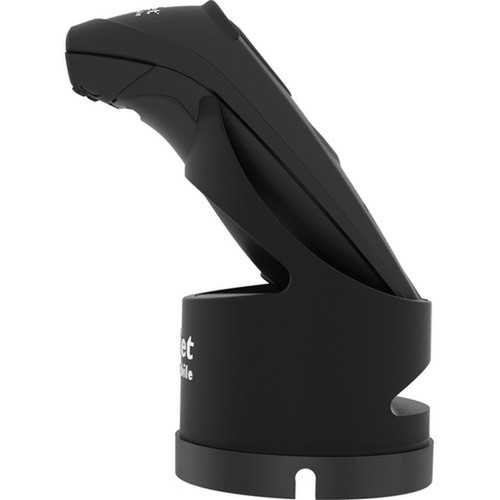

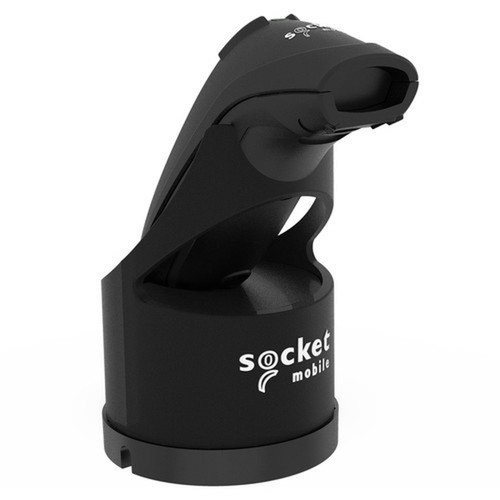

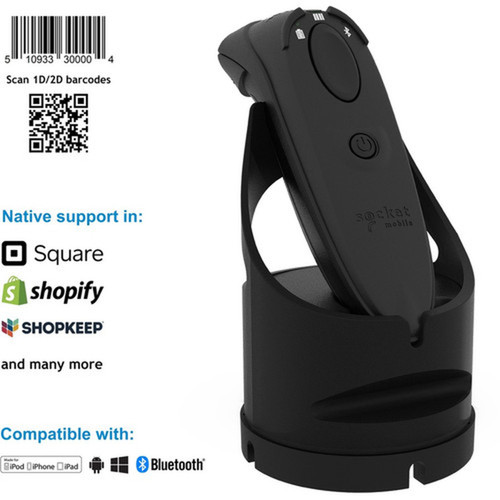

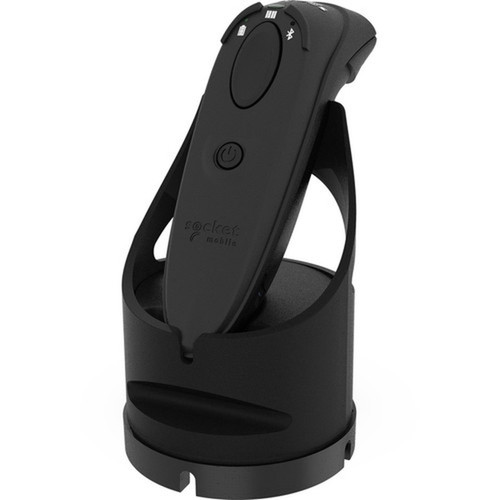

Socket Mobile CX3797-2557 DuraScan D760 Ultimate Barcode Scanner and Passport Reader - Wireless - Laser - 30" Scan Distance - Handheld - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DuraScan D760 leverages laser scanning technology for reliable performance in various lighting conditions, including low ambient light, without requiring additional illumination. It supports a comprehensive range of 1D and 2D barcode symbologies, from common retail codes like UPC and EAN to specialized formats such as Aztec, Data Matrix, and PDF417, along with postal codes and OCR typefaces including OCR-A, OCR-B, and MICR-E13B for US currency serial numbers.
Wireless operation is enabled through Bluetooth, facilitating seamless data transmission to connected base stations or mobile devices. The scanner's 30-inch optimal scanning distance provides flexibility in positioning, while its handheld design integrates ergonomic considerations for user comfort during prolonged scanning sessions.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DuraScan D760 stands out with its versatile scanning capabilities and user-centric design, offering tangible benefits for operational efficiency and accuracy in data-intensive environments.
Extended Mobility
Bluetooth wireless connectivity removes cable restrictions, enabling scanning from up to 30 inches away and allowing operators to move freely without tangles, which enhances productivity in dynamic settings like warehouses or retail floors.
- 30" scanning range
- Bluetooth data transmission
- Cable-free operation
Comprehensive Symbology Support
This scanner reads over 40 barcode types, including 1D linear codes, 2D matrix codes, and postal formats, plus OCR for document and currency verification, ensuring compatibility with global standards and reducing the need for multiple devices.
- 1D and 2D barcodes
- Postal code recognition
- OCR for documents
Durable and Compliant Build
Constructed with RoHS and WEEE compliance, the D760 meets environmental regulations while its lightweight, handheld form factor and included wrist strap promote durability and ease of use in daily operations.
- RoHS/WEEE compliant
- Lightweight design
- Includes wrist strap
Deployment / Use Cases
The DuraScan D760 is engineered for scenarios requiring reliable, mobile data capture with broad symbology support. Its wireless functionality and robust scanning make it ideal for environments where flexibility and accuracy are paramount.
In retail and point-of-sale settings, the scanner streamlines checkout processes by quickly reading barcodes on products, loyalty cards, and mobile coupons, while its OCR capabilities can verify IDs or passports for age-restricted sales or travel documentation. For inventory and warehouse management, the 30-inch scan distance and handheld design allow workers to scan items on high shelves or in bulk without physical strain, improving throughput and reducing errors.
Retail and Hospitality
Use for fast checkout, inventory counts, and guest check-ins, leveraging wireless scanning to enhance customer service and operational speed in stores, hotels, or event venues.
Logistics and Distribution
Deploy in warehouses for tracking shipments, managing stock, and verifying labels, with the laser technology ensuring reliable reads in varied lighting conditions across packaging types.
Physical Profile
The DuraScan D760 features a compact handheld design measuring 5.20 inches in height, 1.58 inches in width, and 1.46 inches in depth, with a weight of approximately 3.80 ounces. Its black finish provides a professional appearance, while the ergonomic shape and included wrist strap support comfortable grip and reduce drop risk during extended use. The small footprint makes it easy to store or carry, suitable for mobile teams or crowded workspaces.
- Width
- 1.58" (40.10 mm)
- Depth
- 1.46" (37.10 mm)
- Height
- 5.20" (132.20 mm)
- Weight
- 3.80 oz (107.73 g)
What's in the Box
The package includes all essential components for immediate setup and operation.
Highlights
- Wireless Bluetooth connectivity for cable-free scanning up to 30 inches
- Laser scanning technology works effectively in low ambient lighting
- Supports over 40 1D and 2D barcode symbologies plus OCR typefaces
- Handheld form factor with black finish for professional use
- Includes charging dock, cable, and wrist strap for convenience
- RoHS and WEEE compliant for environmental responsibility
- Made in the United States with a 1-year limited warranty
- Lightweight design at 3.80 oz for extended comfortable use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX3797-2557 |
| Brand Name | Socket Mobile |
| Product Line | DuraScan |
| Product Series | 700 |
| Product Model | D760 |
| Product Name | DuraScan D760 Ultimate Barcode Scanner and Passport Reader, v20 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Codabar Code 39 Code 93 Code 128 EAN-13/JAN EAN-8/JAN GS1 Databar GS1 Databar Expanded GS1 Databar Limited GS1-128 Interleaved 2 of 5 ISBT 128 UPC A UPC EO Bookland EAN Chinese 2 of 5 Code 11 Composite CC-A/B Composite CC-C Composite TLC Discrete 2 of 5 ISSN EAN Matrix 2 of 5 MSI 2D: Aztec Data Matrix Maxicode Micro PDF417 PDF417 DotCode MicroQR QR Code Postal Codes: Australia Post Han Xin Japan Postal KIX Code Maxicode Netherlands UPU FICS Posta US Planet US Postnet USPS 4CB/One Code/Intelligent Mail OCR Typeface: OCR B ICAO Travel Documents OCR-A OCR-B MICR-E13B US currency serial number |
| Light Source | Laser |
| Scanning Distance | 30" (762 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Black |
| Height | 5.20" (132.20 mm) |
| Width | 1.58" (40.10 mm) |
| Depth | 1.46" (37.10 mm) |
| Weight (Approximate) | 3.80 oz (107.73 g) |
| Miscellaneous | |
| Package Contents | DuraScan D760 Ultimate Barcode Scanner and Passport Reader, v20 1 x Charging Cable 1 x Wrist Strap 1 x Get Started insert Charging Dock |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What types of barcodes can the DuraScan D760 read?
The DuraScan D760 reads a wide range of 1D and 2D barcode symbologies, including common retail codes like UPC, EAN, and Code 128, as well as 2D formats such as QR Code, Data Matrix, and PDF417. It also supports postal codes from various regions and OCR typefaces like OCR-A, OCR-B, and MICR-E13B for document and currency verification, making it versatile for global applications.
How does the wireless connectivity work?
This scanner uses Bluetooth technology for wireless connectivity, allowing it to transmit scanned data to a compatible base station, mobile device, or computer without cables. This enables operators to move freely within range, scan items from up to 30 inches away, and reduce clutter in workspaces like retail counters or warehouses.
What is the scanning distance and light source?
The DuraScan D760 has an optimal scanning distance of 30 inches (762 mm) and uses a laser light source. Laser scanning provides reliable performance in various lighting conditions, including low ambient light, without needing additional illumination, which ensures accurate reads in environments like dimly lit storage areas or outdoor settings.
What is included in the package?
The package includes the DuraScan D760 Ultimate Barcode Scanner and Passport Reader (v20), a charging cable, a wrist strap, a Get Started insert, and a charging dock. These accessories support immediate setup, convenient recharging, and secure handling during use.
Is the scanner environmentally compliant?
Yes, the DuraScan D760 is environmentally friendly and complies with Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) regulations. This ensures it meets standards for reduced hazardous materials and proper disposal, aligning with corporate sustainability goals.
What is the warranty and country of origin?
The scanner comes with a 1-year limited warranty from Socket Mobile, covering defects in materials and workmanship. It is manufactured in the United States, supporting quality control and local production standards for reliable performance in professional settings.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
