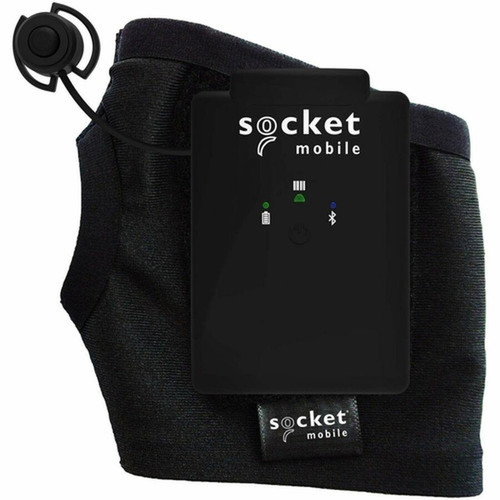

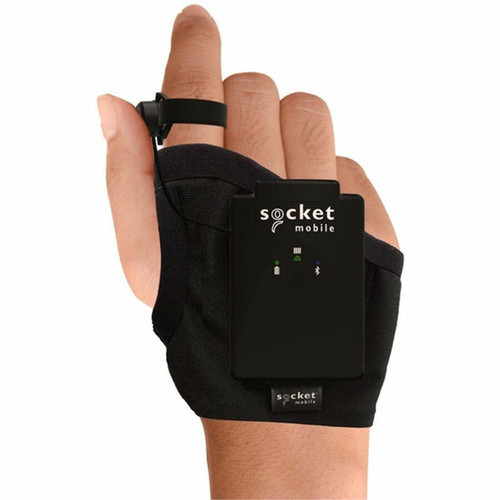

Socket Mobile DuraScan Wear DW930 Barcode Scanner - Wireless Connectivity - 15 ft (4572 mm) Scan Distance - Laser - Imager, Linear - - (CX4143-3210)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Wireless
Light Source: Laser
Image Sensor Type: Imager,Linear
Scan Mode: Trigger
Scan Pattern: Linear
Scanning Distance: 15 ft (4572 mm)
Display Screen: Yes
Cable Type Included: Serial
Maximum Ambient Light: 86000 lux
Drop Specification:
6 drops to concrete - 1 on each side at 6.6 ft. (2 m)
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 100 mil (2.54 mm)
Features: Beep,Notification LED,Curved,Ergonomic Design,Scan Button
Bluetooth: Yes
Host Interface: Serial
Battery Chemistry: Lithium Polymer (Li-Polymer)
Battery Capacity: 700 mAh
Maximum Battery Run Time: 13 Hour
Maximum Battery Recharge Time: 8 Hour
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 95%
Form Factor: Wearable
Rugged: Yes
Durability: Dust Proof,Water Proof,Water Resistant,Dust Resistant,Spill Resistant
Weight (Approximate): 3.20 oz (90.70 g)
Ingress Protection (IP) Rating: IP65,IP54
Application/Usage: Logistics,Transportation,Manufacturing,Retail,Healthcare,Picking,Sorting,Inventory,Laboratory,Packing,Warehouse
Platform Supported: Linux,iOS,Android,Mac,Smartphone,PC
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 1 Year
- Laser scan engine guarantees rapid error free data entry
- Increase productivity and performance by excluding the cable
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
[custom-specifications]
| Specifications | |
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4143-3210 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Brand Name | Socket Mobile |
| Product Line | DuraScan |
| Product Model | DW930 |
| Product Name | DuraScan Wear DW930 Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Light Source | Laser |
| Image Sensor Type | Imager,Linear |
| Scan Mode | Trigger |
| Scan Pattern | Linear |
| Scanning Distance | 15 ft (4572 mm) |
| Display Screen | Yes |
| Cable Type Included | Serial |
| Maximum Ambient Light | 86000 lux |
| Drop Specification | 6 drops to concrete - 1 on each side at 6.6 ft. (2 m) |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 100 mil (2.54 mm) |
| Features | Beep,Notification LED,Curved,Ergonomic Design,Scan Button |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Host Interface | Serial |
| Battery Information | |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Capacity | 700 mAh |
| Maximum Battery Run Time | 13 Hour |
| Maximum Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Wearable |
| Rugged | Yes |
| Durability | Dust Proof,Water Proof,Water Resistant,Dust Resistant,Spill Resistant |
| Weight (Approximate) | 3.20 oz (90.70 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP54 |
| Application/Usage | Logistics,Transportation,Manufacturing,Retail,Healthcare,Picking,Sorting,Inventory,Laboratory,Packing,Warehouse |
| Platform Supported | Linux,iOS,Android,Mac,Smartphone,PC |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
