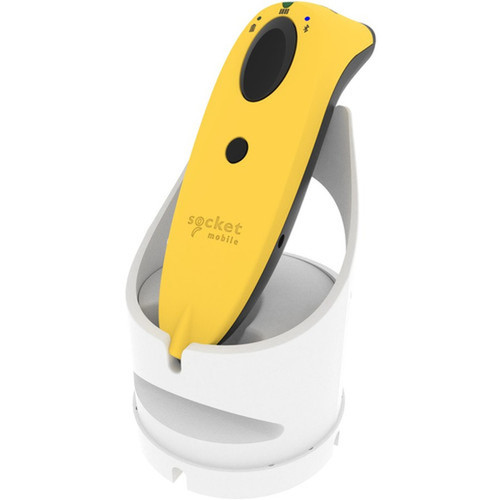

Socket Mobile SocketScan S720 Linear Barcode Scanner - Wireless Connectivity - 14.96" (380 mm) Scan Distance - 1D, 2D - LED - Imager - (CX4068-3131)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- UPC A
- UPC E1
- Chinese 2 of 5
- Codabar
- Code 11
- Code 16KCode 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-13
- EAN-8
- GS1 Databar
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI Plessey
- UPC A
- UPC E1
- Standard 2 of 5
- UK Plessey
- Data Matrix
- Micro QR Code
- PDF417
- QR Code Supported Barcode Symbologies: 1D Symbologies: Chinese 2 of 5
- Codabar
- Code 11
- Code 16KCod
- Aztec
- Data Matrix
- Han Xin
- Micro PDF417
- Micro QR Code
- PDF417
- QR Code
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D :
Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Linear
Scanning Distance: 14.96" (380 mm)
Display Screen: Yes

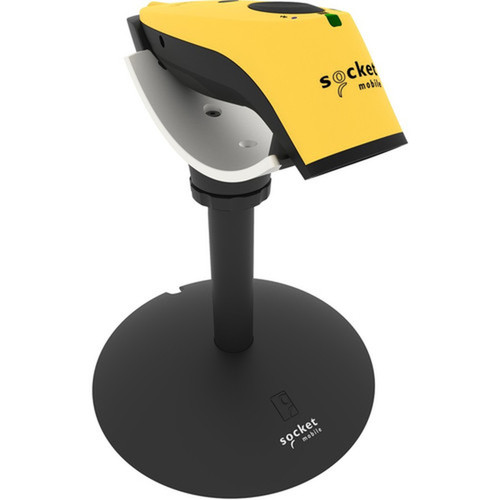

Stand Included: Yes
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Maximum Ambient Light: 100000 lux
Drop Specification: 4 ft. drop to linoleum
Minimum Print Contrast: 25%
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Bluetooth: Yes
Radio Frequency: Yes
Form Factor: Handheld
Product Color: Yellow,Black,Blue,Green,Red,White
Weight (Approximate): 4.10 oz (116.23 g)
Application/Usage: Transportation,Loyalty Program,Delivery,Hospitality,Inventory,Asset Tracking,Ticketing
- Laser-free design provides high-performance scanning without the risk of eye injury
- Increases productivity by giving the opportunity to wander, without the tangle of cables
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4068-3131 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Brand Name | Socket Mobile |
| Product Model | S720 |
| Product Name | SocketScan S720 Linear Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D :
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Linear |
| Scanning Distance | 14.96" (380 mm) |
| Display Screen | Yes |
| Stand Included | Yes |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 4 ft. drop to linoleum |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Yellow,Black,Blue,Green,Red,White |
| Weight (Approximate) | 4.10 oz (116.23 g) |
| Miscellaneous | |
| Application/Usage | Transportation,Loyalty Program,Delivery,Hospitality,Inventory,Asset Tracking,Ticketing |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf2
Additional-pdf1
User-Manual
[/custom-user-manual]
