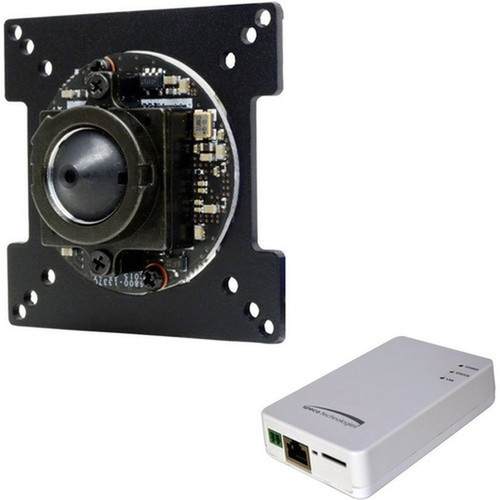

Speco O2IBD3 Intensifier 2MP Outdoor Board IP Camera - Full HD 1080p - 86° FOV - CMOS - Wired - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a 2-megapixel CMOS sensor that produces 1920 x 1080 resolution video, optimized for detailed surveillance footage. The fixed lens system includes both 2.9mm and 3.6mm pinhole lenses, providing versatile focal length options for different viewing angles. With a wide 86° horizontal field of view, the O2IBD3 covers substantial area, reducing the number of cameras needed for comprehensive monitoring.
Advanced imaging technologies such as 2D and 3D digital noise reduction (DNR) enhance video clarity in low-light conditions, while wide dynamic range (WDR) balances exposure in high-contrast scenes. The camera supports local storage via SD card, allowing for on-device recording without immediate network dependency. Remote management capabilities enable administrators to configure and monitor the camera from a central location, streamlining security operations.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Speco Intensifier O2IBD3 combines high-definition video capture with robust outdoor durability, making it a dependable solution for perimeter security and property monitoring. Its board design allows for flexible mounting in tight spaces, while the included pinhole lenses offer discreet installation options. The camera's comprehensive feature set addresses common surveillance challenges, from motion detection to privacy masking, enhancing overall security effectiveness.
Enhanced Video Quality
Utilizes CMOS sensor technology for efficient HD video production with lower power draw, supported by 2D/3D DNR and WDR for improved image integrity in varying lighting conditions.
- 2-megapixel resolution
- 30 fps frame rate
- Multiple H.264 formats
Operational Reliability
Designed for continuous outdoor operation with a temperature range of -10°C to 50°C and 90% humidity tolerance, ensuring performance in diverse weather scenarios.
- Wide operating temperature
- IP-rated construction
- 5-year warranty
Deployment / Use Cases
Ideal for outdoor surveillance applications, the O2IBD3 is well-suited for monitoring entrances, parking lots, and perimeter fences where clear video evidence is critical. Its board form factor facilitates integration into existing structures or custom enclosures, providing versatility for both visible and covert installations. The camera's motion detection and tamper detection features add proactive security layers, alerting personnel to unauthorized activity.
Common use cases include small to medium business security systems, residential property monitoring, and supplementary coverage for larger surveillance networks. The SD card local storage option makes it effective for standalone setups or as a backup recording solution in networked environments. With TAA compliance and RoHS environmental standards, this camera meets regulatory requirements for public sector and commercial deployments.
Perimeter Security
Deploy along property boundaries to capture high-definition footage of approaching individuals or vehicles, utilizing the wide field of view for broad coverage.
Entry Point Monitoring
Install near doors or gates to record access events, with features like password protection and privacy masking to secure sensitive areas.
Physical Profile
The O2IBD3 features a compact board design measuring 1.24" (31.50 mm) in height, 2.59" (65.79 mm) in width, and 4.21" (106.93 mm) in depth, allowing for installation in confined spaces. Its lightweight construction at approximately 4 oz (113.40 g) simplifies mounting and reduces structural load. The black finish provides a discreet appearance that blends with outdoor environments, while the robust build ensures durability against environmental elements.
- Width
- 2.59" (65.79 mm)
- Depth
- 4.21" (106.93 mm)
- Height
- 1.24" (31.50 mm)
- Weight
- 4 oz (113.40 g)
- Length
- 2.9 mm (0.11"),3.6 mm (0.14")
What's in the Box
The package includes all necessary components for immediate deployment, ensuring a complete out-of-the-box experience.
Highlights
- 2-megapixel CMOS sensor for Full HD 1080p video recording
- 86° horizontal field of view provides extensive coverage area
- Wired network connectivity with RJ-45 port for stable integration
- Supports local storage via SD card for flexible recording options
- Outdoor-rated construction with operating range of -10°C to 50°C
- Includes both 2.9mm and 3.6mm pinhole lenses for versatile installation
- Features motion detection, tamper detection, and privacy masking
- TAA compliant and meets RoHS environmental standards
- 5-year limited warranty for long-term reliability
- Compact board form factor enables discreet mounting in tight spaces
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | O2IBD3 |
| Brand Name | Speco |
| Product Line | Intensifier |
| Product Model | O2IBD3 |
| Product Name | 2MP Board IP Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | No |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 86° Horizontal, 45° Vertical |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | MJPEG,H.264,H.264 HP,H.264 (MP),H.264 BP |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.9 mm (0.11"),3.6 mm (0.14") |
| Lens Included | Yes |
| Lens Mount Type | Pin Hole |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Board |
| Height | 1.24" (31.50 mm) |
| Width | 2.59" (65.79 mm) |
| Depth | 4.21" (106.93 mm) |
| Weight (Approximate) | 4 oz (113.40 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Automatic White Balance,2D Digital Noise Reduction (2DNR),3D Digital Noise Reduction,Wide Dynamic Range,Password Protection,Microphone In,Motion Detection,Tamper Detection,Privacy Masking |
| Indoor/Outdoor | Outdoor |
| Package Contents | 2MP Intensifier Board IP Camera 2.9mm Fixed Lens 3.6mm Pinhole Lens |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the video resolution of the Speco O2IBD3 camera?
The Speco O2IBD3 captures video at a maximum resolution of 1920 x 1080 pixels, which is Full HD 1080p. This 2-megapixel resolution ensures detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage, recorded at up to 30 frames per second for smooth motion representation.
Does this camera support night vision?
No, the O2IBD3 does not include infrared night vision capabilities. It is designed for color video recording in well-lit or daylight conditions, utilizing its CMOS sensor and features like wide dynamic range to handle varying lighting. For low-light environments, external lighting may be required to maintain video quality.
What type of lens is included with the camera?
The camera comes with two fixed lenses: a 2.9mm lens and a 3.6mm pinhole lens. Both lenses are included in the package, offering flexibility for different installation needs. The pinhole lens allows for discreet mounting, while the fixed design ensures consistent focus without manual adjustment.
How is the camera powered?
The O2IBD3 operates on 12 V DC power input, which is standard for many IP cameras. This wired power method ensures reliable operation without battery dependencies, making it suitable for continuous surveillance applications. Ensure your power supply meets this voltage requirement for proper functionality.
Can this camera be used outdoors?
Yes, the O2IBD3 is rated for outdoor use. It withstands temperatures from -10°C to 50°C (14°F to 122°F) and up to 90% humidity, making it durable in various weather conditions. Its board form factor and black finish are designed to endure environmental exposure while maintaining performance.
What video formats does the camera support?
The camera supports multiple video formats including MJPEG, H.264, H.264 HP, H.264 (MP), and H.264 BP. This compatibility allows for efficient compression and streaming, reducing bandwidth usage while maintaining video quality. These formats are widely supported by most network video recorders (NVRs) and surveillance software.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
