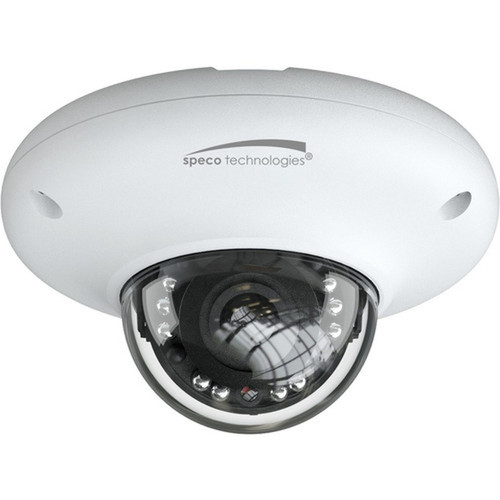

Speco O4P4 4MP H. 265 IP Mini-Dome Camera - White - 2592 x 1520 Resolution - 65 ft Night Vision - IP67 Indoor/Outdoor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the O4P4 camera is a CMOS image sensor that captures 2592 x 1520 resolution video at 4 megapixels. This sensor technology offers power efficiency and cost-effectiveness compared to traditional CCD sensors while maintaining high-definition video quality. The camera supports multiple video formats including H.265, H.264, and MJPEG, providing flexibility for different recording and streaming requirements.
Network connectivity is handled through a wired RJ-45 interface, ensuring stable data transmission for continuous surveillance. The camera includes remote management capabilities, allowing administrators to configure and monitor the device from centralized security platforms. Advanced analytics features enhance the camera's intelligence for motion detection and event-based recording scenarios.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This surveillance camera delivers practical benefits through its combination of imaging performance, environmental durability, and operational efficiency. The H.265 video compression significantly reduces bandwidth consumption and storage requirements compared to older codecs, making it ideal for extended recording periods and multi-camera installations.
Enhanced Low-Light Performance
With 65-foot infrared night vision capability, the camera maintains surveillance effectiveness in complete darkness, capturing clear monochrome footage when ambient light is insufficient for color imaging.
- 65 ft (19.81 m) infrared illumination
- Automatic day/night switching
- Consistent image quality in low light
Environmental Resilience
The IP67 rating ensures complete protection against dust ingress and temporary immersion in water up to 1 meter deep, while the extended temperature range supports operation in extreme climates.
- IP67 dust and water resistance
- -40°F to 140°F operating range
- Indoor/outdoor deployment flexibility
Efficient Imaging Technology
The CMOS sensor provides excellent HD video quality with lower power consumption than alternative sensor types, contributing to reduced operational costs and heat generation during continuous operation.
- Power-efficient CMOS design
- 4MP resolution clarity
- Reduced bandwidth with H.265
Deployment / Use Cases
The Speco O4P4 mini-dome camera is versatile enough for various security applications where discreet monitoring and environmental durability are priorities. Its compact form factor and white finish blend seamlessly with interior ceilings or exterior soffits while providing comprehensive surveillance coverage.
In retail environments, the camera supports loss prevention efforts by monitoring high-traffic areas, entrances, and cash handling locations with clear 4MP video evidence. For educational facilities or office buildings, it provides hallway monitoring, perimeter security, and access control verification. The indoor/outdoor capability makes it equally effective for parking lot surveillance, building exteriors, or industrial settings where weather resistance is essential.
Commercial Perimeter Security
Wall-mounted installation at building entrances, loading docks, or perimeter fences provides continuous monitoring with night vision support for 24/7 security coverage.
- IP67 weather resistance
- 65 ft night vision range
- Wall mount flexibility
Retail Surveillance
Discreet ceiling mounting in retail spaces monitors customer traffic, point-of-sale areas, and inventory storage with high-resolution video for incident documentation and prevention.
- Mini-dome discreet design
- 4MP evidence-quality video
- Remote management capability
Physical Profile
The camera features a compact mini-dome form factor measuring 2.28" (57.91 mm) in height with a 4.33" (109.98 mm) diameter, making it unobtrusive for ceiling or wall installations. The white finish complements most architectural environments while the wall-mount design provides secure attachment to various surfaces. Weighing approximately 344.7 grams, the camera maintains a lightweight profile that simplifies installation without compromising structural integrity.
- Height
- 2.28" (57.91 mm)
- Weight
- 344.7 g
- Length
- 2.8 mm
Highlights
- 4-megapixel resolution delivers 2592 x 1520 HD video clarity
- H.265 video compression reduces bandwidth and storage requirements
- 65-foot infrared night vision for 24/7 surveillance capability
- IP67-rated housing for dust and water resistance in indoor/outdoor use
- CMOS sensor provides power-efficient operation with excellent image quality
- Fixed 2.8mm lens ensures consistent field of view
- Operating temperature range from -40°F to 140°F for extreme environments
- Wall-mount design with mini-dome form factor for discreet installation
- Wired RJ-45 connectivity with remote management support
- 5-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Speco Technologies |
| Manufacturer Part Number | O4P4 |
| Brand Name | Speco |
| Product Model | O4P4 |
| Product Name | 4MP H.265 IP Mini-Dome Camera with Advanced Analytics |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 65 ft (19.81 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 2592 x 1520 |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Product Color | White |
| Mount Type | Wall Mount |
| Form Factor | Mini Dome |
| Height | 2.28" (57.91 mm) |
| Diameter | 4.33" (109.98 mm) |
| Weight (Approximate) | 344.7 g |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Indoor/Outdoor | Indoor/Outdoor |
| Ingress Protection Rating | IP67 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does the Speco O4P4 camera provide?
The Speco O4P4 delivers 4-megapixel resolution at 2592 x 1520 pixels, providing high-definition video quality that captures fine details for effective surveillance and evidence documentation. This resolution represents a significant improvement over standard 1080p cameras, offering clearer images for identification and monitoring purposes.
How far does the night vision reach on this camera?
This camera features infrared night vision with a range of 65 feet (19.81 meters), allowing it to capture clear monochrome footage in complete darkness. The automatic day/night switching ensures optimal image quality transitions between daylight and low-light conditions without manual intervention.
Is this camera suitable for outdoor installation?
Yes, the Speco O4P4 is rated IP67 for dust and water resistance, making it suitable for both indoor and outdoor installations. It can withstand temporary immersion in water up to 1 meter deep and operates in temperatures from -40°F to 140°F (-40°C to 60°C), providing reliable performance in various environmental conditions.
What video compression formats does the camera support?
The camera supports H.265, H.264, and MJPEG video formats. H.265 compression offers approximately 50% bandwidth savings compared to H.264 while maintaining similar video quality, making it ideal for reducing storage requirements and network load in surveillance systems with multiple cameras.
What type of lens does this camera have?
This camera features a fixed 2.8mm lens that provides a consistent field of view without adjustment capability. Fixed lenses offer reliability and maintain focus stability over time compared to varifocal alternatives, making them suitable for applications where the viewing area remains constant.
What warranty coverage comes with this surveillance camera?
The Speco O4P4 includes a 5-year limited warranty that covers manufacturing defects and ensures long-term reliability for surveillance deployments. This extended warranty period provides confidence in the camera's durability and performance throughout typical security system lifecycles.
What connectivity or interface options are available?
Connectivity options include Wired, helping the product integrate into common office or home setups.
