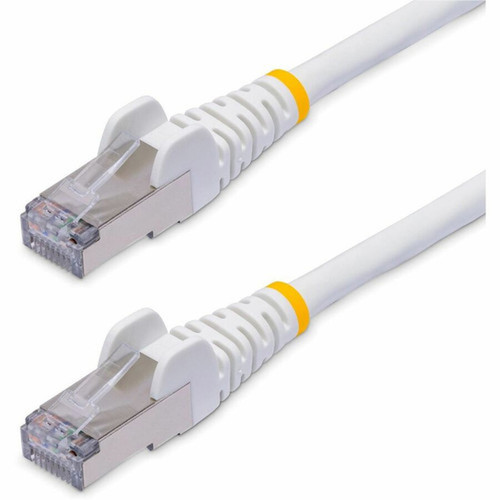

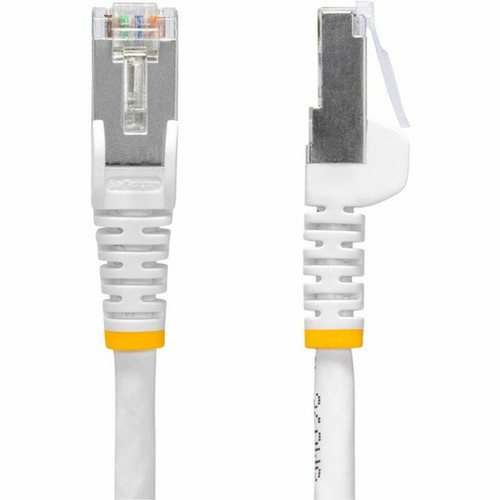

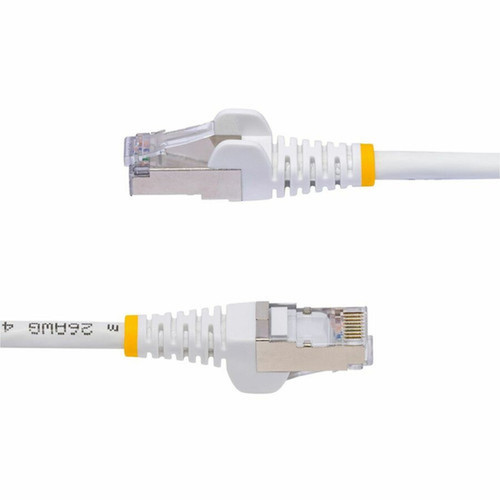

StarTech. com NLWH-50F-CAT8-PATCH StarTech 50ft CAT8 Ethernet Cable - S/FTP - 25G/40G - 2000MHz - 100W PoE++ - Snagless RJ45 - LSZH - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This CAT8 cable meets ANSI/TIA-568.2-D standards and is ETL verified for compliance. It supports Power over Ethernet++ (PoE++) up to 100W per IEEE 802.3bt Type 4 specifications, enabling simultaneous high-speed data and power delivery to compatible devices like IP cameras, access points, and PoE switches.
The cable construction includes four twisted pairs with eight conductors, aluminum mylar foil shielding with tinned copper braid, and strain relief features. With a 5.6mm (0.22in) outer diameter, it maintains a manageable profile while delivering enterprise-grade performance. Each cable is individually tested to guarantee CAT8 specifications.
This section brings together practical product details such as Cable Type, Cable Characteristic, Cable Length, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This CAT8 cable provides future-proof connectivity with significant advantages over previous cable categories. It offers up to four times the throughput of CAT6a cables while maintaining backward compatibility with CAT5e, CAT6, and CAT6a equipment.
Enhanced Performance
The 2000MHz frequency range and 40Gbps capability support emerging 25GBASE-T and 40GBASE-T network standards, ensuring your infrastructure can handle increasing data demands.
- 25G/40G speeds for high-density networks
- 2000MHz frequency for maximum throughput
- Backward compatible with CAT5e/6/6a
Robust Construction
Pure bare copper conductors with S/FTP shielding provide superior EMI protection and consistent performance. The gold-plated connectors ensure reliable connections with minimal signal loss.
- 26AWG pure bare copper wire
- Aluminum mylar foil with tinned copper braid
- Gold-plated RJ45 connectors
Safety & Reliability
The LSZH jacket emits low toxic fumes if combusted, making it safe for enclosed spaces and poorly ventilated areas. Strain relief and snag-resistant design enhance durability.
- LSZH jacket for safety in enclosed spaces
- Snagless connector design
- Individually tested for guaranteed performance
Deployment / Use Cases
This cable is ideal for enterprise network deployments requiring high-speed connectivity and power delivery. Its 50-foot length provides flexibility for connecting equipment in server rooms, data centers, and office environments where longer runs are necessary.
The combination of high bandwidth and PoE++ support makes it particularly valuable for connecting power-hungry network devices that also require substantial data throughput. This eliminates the need for separate power cables while maintaining network performance.
Data Center Applications
Connect switches, servers, and storage devices in high-density rack environments where 25G/40G connectivity is required for backbone connections or server-to-switch links.
PoE Device Connectivity
Power and connect IP cameras, wireless access points, VoIP phones, and other PoE++ devices up to 100W, simplifying installations by combining data and power in a single cable.
Highlights
- 50-foot CAT8 Ethernet patch cable for enterprise networks
- Supports 25G/40G speeds with 2000MHz frequency range
- 100W PoE++ compliant with IEEE 802.3bt Type 4
- S/FTP shielding with pure bare copper 26AWG conductors
- Snagless RJ45 connectors with gold plating
- LSZH jacket for safety in enclosed spaces
- Backward compatible with CAT5e, CAT6, and CAT6a equipment
- ETL verified to meet ANSI/TIA-568.2-D standards
- Individually tested for guaranteed CAT8 performance
- Lifetime warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | NLWH-50F-CAT8-PATCH |
| Brand Name | StarTech.com |
| Product Name | Cat.8 S/FTP Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 8 |
| Cable Characteristic | Patch Cable |
| Cable Length | 50 ft (15.24 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Jacket Type | LSZH |
| Device Supported | Network Device,Switch,Module,NAS,PoE Device,PoE Switch,Access Point,IP Camera,Security Camera |
| American Wire Gauge | 26 AWG |
| Data Transfer Rate | 40 Gbit/s |
| Number of Pairs | 4 |
| Number of Conductors | 8 |
| Features | PoE++,Strain Relief,Braided,EMI Protection,Wear Resistant,Flexible,Flame Retardant,Passive,Snag Resistant |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Bare Copper,Foil,Copper,Metal,Plastic |
| Shielding Material | Aluminum Mylar Foil,Tinned Copper Braid,Aluminum Mylar |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the maximum data speed this CAT8 cable supports?
This StarTech CAT8 cable supports data transfer rates up to 40 Gbit/s, which includes both 25GBASE-T and 40GBASE-T network standards. With a 2000MHz frequency range, it delivers significantly higher throughput than previous cable categories while maintaining backward compatibility with CAT5e, CAT6, and CAT6a equipment for flexible deployment in mixed environments.
Does this cable support Power over Ethernet (PoE)?
Yes, this cable supports Power over Ethernet++ (PoE++) up to 100W per IEEE 802.3bt Type 4 specifications. This enables simultaneous delivery of high-speed data and substantial power to compatible devices like IP cameras, wireless access points, and PoE switches, eliminating the need for separate power cables in many installations.
What type of shielding does this Ethernet cable have?
This cable features S/FTP (Shielded/Foiled Twisted Pair) construction with aluminum mylar foil and tinned copper braid shielding. This comprehensive shielding provides excellent electromagnetic interference (EMI) protection, ensuring consistent signal integrity and reliable performance in electrically noisy environments common in enterprise installations.
What does LSZH jacket mean and why is it important?
LSZH stands for Low Smoke Zero Halogen, a jacket material that emits minimal toxic fumes and smoke if combusted. This makes the cable safer for use in enclosed spaces, poorly ventilated areas, and plenum-rated installations where fire safety is a priority. The LSZH jacket also maintains flexibility for easy routing in tight spaces.
What devices are compatible with this CAT8 cable?
This cable is compatible with network devices, switches, NAS systems, PoE devices, access points, IP cameras, and security cameras. It supports both data and power delivery for PoE++ devices while providing high-speed connectivity for 25G/40G network equipment. The RJ45 connectors work with standard Ethernet ports found on most network hardware.
Is this cable tested and certified for performance?
Yes, each cable is individually tested to guarantee CAT8 performance specifications. It is ETL verified to meet ANSI/TIA-568.2-D standards for structured cabling. The gold-plated connectors are rated for over 750 insertions, and the cable carries a lifetime warranty, ensuring long-term reliability in demanding network environments.
