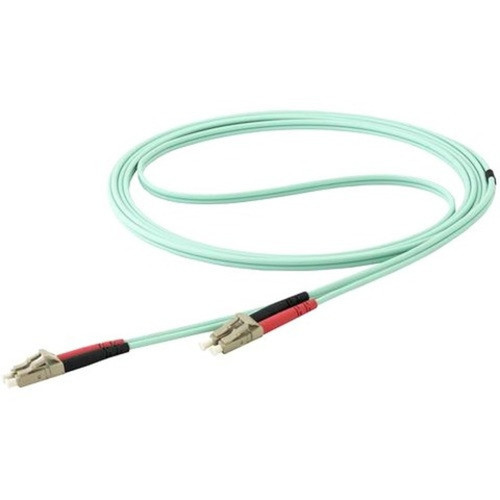

StarTech. com 450FBLCLC15 LC to LC OM4 Multimode Fiber Optic Patch Cable - 15m - 50ft 50/125µm - 100G - LSZH Aqua
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This fiber optic patch cable utilizes OM4-grade multimode fiber with a 50/125µm core/cladding diameter, engineered for minimal insertion loss and high signal integrity over distances up to 15 meters. The cable supports data rates up to 100 Gbit/s, making it suitable for 40G and 100G Ethernet, Fibre Channel, and other high-speed protocols.
The duplex construction features two separate fibers within a single jacket, each terminated with precision LC connectors. Both ends use LC connectors—End A with two male LC connectors and End B with two LC connectors—ensuring compatibility with standard LC fiber optic ports. The LSZH (Low Smoke Zero Halogen) jacket material is flame-retardant and corrosion-resistant, meeting safety standards for use in ventilation-limited areas.
Key Product Advantages
This cable delivers reliable performance with features that enhance network stability and safety. The OM4 multimode fiber ensures low insertion loss and high bandwidth, critical for maintaining signal quality in high-speed data environments.
High-Speed Compatibility
Supports data transfer rates up to 100 Gbit/s, ideal for 40G/100G Ethernet, Fibre Channel, and backbone connections.
- OM4 grade for extended reach
- Low insertion loss design
Durable Construction
LSZH jacket provides flame-retardant and halogen-free properties, reducing toxic smoke emission in case of fire.
- Corrosion-resistant materials
- Aqua color for easy identification
Precision Connectivity
LC connectors offer a small form factor with secure latching, ensuring stable connections in high-density patch panels.
- Duplex configuration
- Male connectors on End A
Deployment / Use Cases
This fiber optic patch cable is versatile for various networking scenarios where high-speed, reliable fiber connections are required. Its 15-meter length and duplex LC connectors make it a practical choice for structured cabling in controlled environments.
Common applications include connecting switches to servers in data centers, linking network equipment in enterprise racks, and extending fiber runs in telecommunications closets. The cable is also suitable for storage area networks (SANs), high-performance computing clusters, and multimedia streaming systems that demand high bandwidth and low latency.
Data Center Interconnects
Use for short-distance links between switches, routers, and servers within a data center, leveraging the 100G capability for backbone traffic.
Enterprise Network Patches
Ideal for patching fiber optic panels to active equipment in office buildings, campuses, or industrial facilities, with the LSZH jacket enhancing safety.
Highlights
- 15-meter (49.2-foot) LC to LC duplex fiber optic patch cable
- OM4 multimode fiber with 50/125µm core for high bandwidth
- Supports data transfer rates up to 100 Gbit/s
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
- Flame-retardant and corrosion-resistant construction
- Aqua color for easy visual identification
- Precision LC connectors on both ends for secure connections
- Ideal for data centers, enterprise networks, and high-speed applications
- Duplex configuration with two fibers in one jacket
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 450FBLCLC15 |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Cable Length | 49.2 ft (15 m) |
| Connector Type on First End | LC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | LC Network |
| Connector on Second End Details | 2 x LC Network |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| Data Transfer Rate | 100 Gbit/s |
| Features | Halogen Free,Flame Retardant,Corrosion Resistant |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Miscellaneous | |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the length of this fiber optic cable?
This cable is 15 meters long, which is equivalent to 49.2 feet. This length provides flexibility for connecting equipment within racks or between nearby cabinets in data centers and network rooms, reducing the need for additional splicing or extenders.
What type of connectors does this cable use?
The cable uses LC connectors on both ends. End A has two male LC connectors, and End B has two LC connectors, configured in a duplex arrangement. LC connectors are widely used in fiber optics for their small size and secure latching mechanism, making them suitable for high-density installations.
What is the data transfer rate supported by this cable?
This OM4 multimode fiber optic cable supports data transfer rates up to 100 Gbit/s. It is designed for high-speed applications such as 40G and 100G Ethernet, Fibre Channel, and other protocols that require reliable, low-loss fiber connections over short to medium distances.
What does LSZH jacket mean, and why is it important?
LSZH stands for Low Smoke Zero Halogen, a jacket material that is flame-retardant and emits minimal toxic smoke when exposed to fire. This is crucial for safety in enclosed spaces like data centers or ventilation-limited areas, as it reduces the risk of hazardous fumes and improves compliance with building codes.
Is this cable single-mode or multimode?
This is a multimode fiber optic cable, specifically OM4 grade with a 50/125µm core/cladding. Multimode fiber is typically used for shorter-distance, high-bandwidth applications within buildings or campuses, offering cost-effective performance for speeds up to 100 Gbit/s over distances like 15 meters.
What color is the cable, and does it affect performance?
The cable has an aqua-colored jacket, which is standard for OM4 multimode fiber to aid in visual identification. The color does not impact electrical performance but helps network technicians quickly distinguish cable types in complex cabling environments, improving organization and maintenance efficiency.
