StarTech. com RK15WALLOA 15U Wall Mount Network Rack - 19" Open Frame - Adjustable Depth 12-20" - 2-Post Heavy-Duty Steel
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This rack delivers robust physical specifications tailored for professional deployment. It offers a substantial 198.42 lb (90 kg) maximum weight capacity, securely supporting heavy switches, servers, and patch panels. The overall external dimensions are 30.40" height, 19.80" width, and 20.10" length, providing a compact footprint suitable for wall mounting in constrained spaces.
The unit is EIA/ECA-310 compatible, adhering to industry standards for rack spacing and hole patterns. It ships flat-packed with ISTA-6 certified packaging to minimize the risk of shipping damage and includes comprehensive assembly instructions for straightforward setup.
This section brings together practical product details such as Rack Type, Application/Usage, Features, Form Factor, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This rack combines durability, flexibility, and comprehensive support in a single package. The adjustable depth mechanism allows IT managers to customize the rack for specific equipment without needing multiple fixed-depth racks, simplifying inventory and future upgrades.
Heavy-Duty Load Support
Built with SPCC cold-rolled steel, the rack reliably holds up to 200 lbs of equipment, ensuring stability for dense configurations of servers, switches, and power distribution units.
- 198.42 lb maximum capacity
- Robust steel frame
- Secure mounting points
Complete Mounting Kit
Includes all necessary hardware for assembly and equipment installation: vertical rails, brackets, cage nuts, screws, washers, and bolts, eliminating the need for separate accessory purchases.
- 60 M6 cage nuts and screws
- Front and rear brackets
- Detailed user manual
Trusted Manufacturer Support
Backed by StarTech.com's 5-year warranty and free 24/5 multi-lingual technical support in North America, providing long-term reliability and assistance for deployment questions.
- 5-year limited warranty
- North America based support
- 30+ years of IT expertise
Deployment / Use Cases
This wall mount rack is ideal for environments where floor space is limited or where equipment needs to be securely mounted off the ground. Its 15U capacity suits small to medium-sized installations, providing enough space for core network and server hardware while maintaining an organized, professional appearance.
Common applications include mounting network switches like the Cisco 2960 series, patch panels for structured cabling, compact servers for branch offices, AV equipment in control rooms, or communication devices in telecom closets. The open frame design also facilitates easy cable management and ventilation, which is critical for maintaining system reliability in enclosed spaces.
Network Closet Installation
Perfect for consolidating switches, routers, and patch panels in a dedicated networking closet, keeping cables organized and equipment accessible for maintenance.
Small Server Room Setup
Supports a few rack-mounted servers and associated hardware in office server rooms or data centers, making efficient use of vertical wall space.
Physical Profile

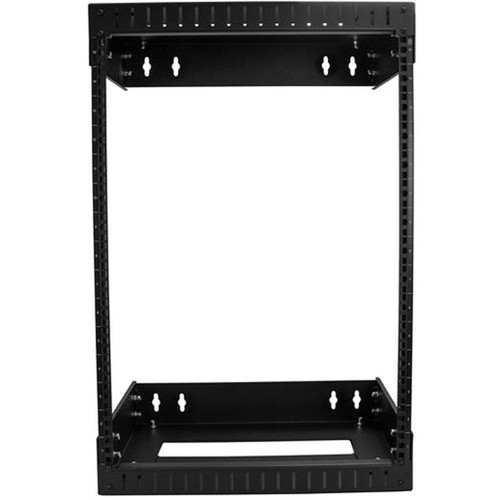

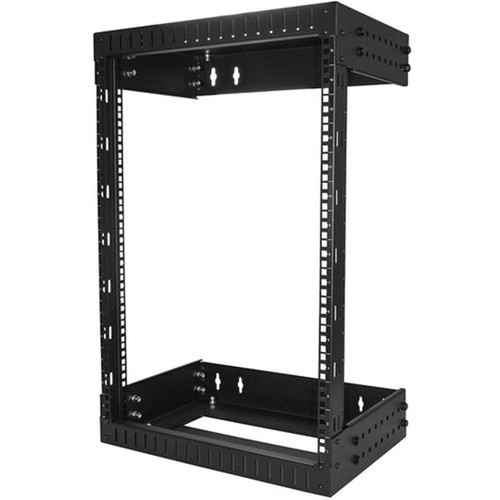

The rack features a sleek black finish that blends with most IT environments. Its wall-mountable form factor includes pre-drilled holes for secure attachment to studs or concrete walls, and the adjustable rails allow fine-tuning of the rack depth to match specific equipment profiles. The overall weight of 33.51 lb makes it manageable for two-person installation, and the open sides provide full access to installed devices for maintenance and upgrades.
- Width
- 19.80" (502.92 mm)
- Depth
- 19.90" (505.46 mm)
- Height
- 30.40" (772.16 mm)
- Weight
- 198.42 lb (90000 g)
- Length
- 20.10" (510.54 mm)
What's in the Box
The rack ships with all components required for assembly and equipment mounting:
Highlights
- 15U open frame wall mount rack with 19" standard width
- Adjustable mounting depth from 12 to 20 inches for equipment compatibility
- Heavy-duty steel construction supports up to 198.42 lb (90 kg) of equipment
- Includes complete mounting hardware: rails, brackets, cage nuts, screws, and washers
- EIA/ECA-310 compatible for industry-standard rack-mount devices
- Open design promotes optimal airflow around installed hardware
- Ships flat-packed with ISTA-6 certified packaging to prevent damage
- Backed by a 5-year warranty from StarTech.com with 24/5 technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RK15WALLOA |
| Brand Name | StarTech.com |
| Product Name | 15U Wall Mount Server Rack- Equipment Rack - 12 - 20 in. Depth |
| Product Condition | New |
| Packaged Quantity | 1 Each |
| Product Type | Rack Frame |
| Technical Information | |
| Rack Type | Open Frame |
| Application/Usage | Server,LAN Switch,Patch Panel,A/V Equipment,Computer |
| Features | Adjustable Mounting Rails |
| Rack Post Quantity | 2 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Maximum Weight Capacity | 198.42 lb (90000 g) |
| Height | 30.40" (772.16 mm) |
| Width | 19.80" (502.92 mm) |
| Length | 20.10" (510.54 mm) |
| Rack Height | 15U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 19.90" (505.46 mm) |
| Weight (Approximate) | 33.51 lb (15200 g) |
| Miscellaneous | |
| Package Contents | 15U Wall Mount Server Rack- Equipment Rack - 12 - 20 in. Depth 2 x Vertical Rails 2 x Front Horizontal Brackets 2 x Rear Horizontal Brackets 60 x M6 Cage Nuts 60 x M6 Screws 60 x Plastic Washers 16 x Assembly Screws 24 x Flat Washers 24 x Bolts 1 x User Manual |
| Assembly Required | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum weight capacity of this rack?
The StarTech.com RK15WALLOA supports a maximum weight capacity of 198.42 pounds (approximately 90 kilograms). This robust capacity allows it to securely hold multiple heavy devices such as servers, network switches, and power distribution units without compromising stability.
How deep can the mounting rails be adjusted?
The adjustable mounting rails on this rack can be set to accommodate equipment depths ranging from 12 inches to 20 inches. This flexibility ensures compatibility with a wide variety of standard 19" rack-mount devices, from shallow network switches to deeper servers or AV components.
What type of rack is this, and what are its dimensions?
This is a 15U open frame wall mount rack. Its external dimensions are 30.40" in height, 19.80" in width, and 20.10" in length. The rack itself has a standard 19" width and a depth of 19.90", with the adjustable rails allowing for the 12-20" equipment depth range.
Does the rack include all necessary mounting hardware?
Yes, the rack comes with a complete set of mounting hardware. This includes two vertical rails, front and rear horizontal brackets, 60 M6 cage nuts, 60 M6 screws, 60 plastic washers, assembly screws, flat washers, bolts, and a user manual. Everything needed for assembly and equipment installation is provided in the box.
Is this rack compatible with standard 19" equipment?
Absolutely. The rack is EIA/ECA-310 compatible, which is the industry standard for 19" rack equipment. It supports most common network switches, servers, patch panels, and AV gear that adhere to this standard, ensuring reliable mounting and alignment.
What warranty and support does StarTech.com offer for this rack?
StarTech.com backs this rack with a 5-year limited warranty. Additionally, they provide free 24/5 multi-lingual technical support based in North America. This support covers assistance with installation, compatibility questions, and any issues that may arise during the warranty period.
What performance, throughput, or capacity detail stands out?
The listed power specification is 198.42 lb (90000 g), which helps position the unit for the right load level and installation role.
