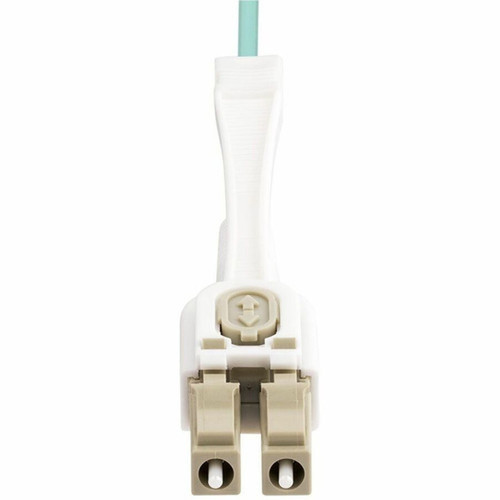

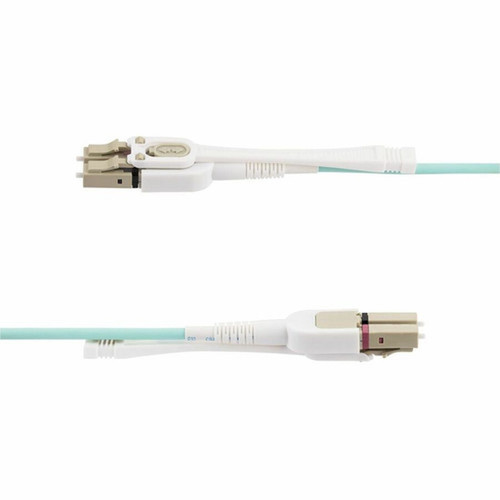

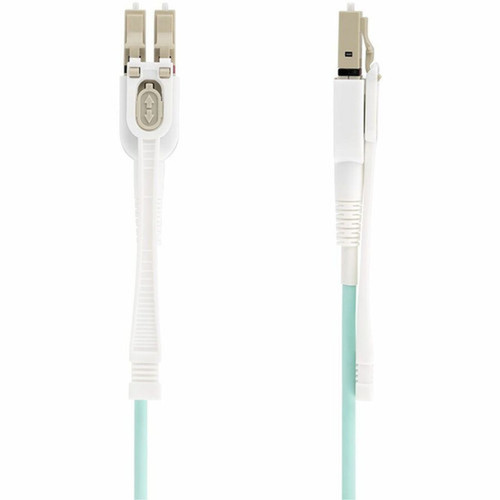

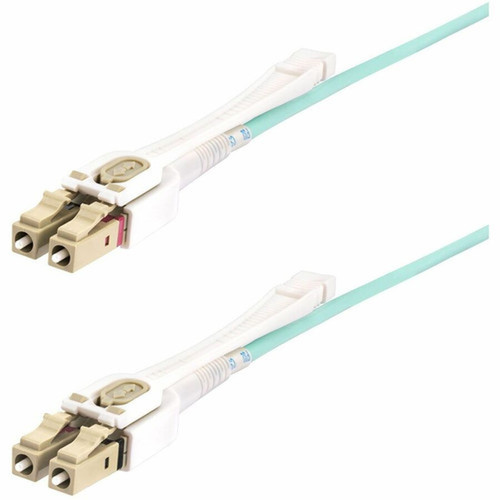

StarTech. com 450FBLCLC3PP LC to LC OM4 Multimode Fiber Optic Cable - 3m - 10ft - 100G - Push-Pull Tabs - LSZH - Aqua
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This OM4 cable utilizes 50/125µm multimode fiber with UPC-polished LC connectors that minimize return loss for optimal signal transmission. The cable supports data rates up to 100 Gbit/s and is backward compatible with OM3 infrastructure, ensuring seamless integration with existing 10G and 40G networks.
Technical performance includes modal bandwidth of 4700MHz/km at 850nm and attenuation below 2.4dB/km at 850nm (0.6dB/km at 1300nm), meeting or exceeding industry standards for high-speed data transmission. The 2.9mm cable diameter and flexible construction enable routing through tight spaces without compromising performance.
This section brings together practical product details such as Cable Type, Cable Characteristic, Fiber Optic Mode, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fiber optic cable combines practical installation features with robust performance characteristics for demanding networking environments. The push-pull tab design allows for easy insertion and removal in congested patch panels, while the retractable connector housings enable tool-less polarity swapping for simplified maintenance.
Enhanced Installation Flexibility
The bend-insensitive fiber core maintains signal integrity even with tight bends, supporting a loaded bend radius of 6cm and unloaded radius of 3cm. This flexibility facilitates routing through intricate cable management systems without performance degradation.
- Aramid-reinforced jacket for durability
- Molded strain relief for connector protection
- Suitable for high-density installations
Safety and Reliability
The LSZH (Low-Smoke Zero-Halogen) jacket emits minimal toxic fumes if combusted, making this cable safe for enclosed or poorly ventilated spaces. Each cable undergoes individual testing to ensure signal integrity and compliance with industry standards.
- RoHS 2, REACH, and WEEE compliant
- Flame retardant construction
- Individually tested for quality assurance
Deployment / Use Cases
This OM4 fiber optic cable is ideal for connecting network equipment in data centers, server rooms, and enterprise networking environments. Its 100G capability makes it suitable for high-bandwidth applications including storage area networks (SANs), backbone connections, and aggregation links.
The cable's compatibility with SFP+, QSFP+, and QSFP28 transceivers enables deployment with a wide range of networking hardware from switches and routers to servers and storage arrays. The aqua color coding helps with quick identification in complex cable infrastructures.
Data Center Interconnects
Connect switches, servers, and storage devices within racks or between adjacent cabinets. The push-pull tabs facilitate easy maintenance in high-density environments where space is limited.
- Switch-to-server connections
- SAN fabric interconnects
- Top-of-rack deployments
Network Infrastructure Upgrades
Upgrade existing OM3 installations to support higher bandwidth requirements while maintaining backward compatibility. The cable supports 10G, 40G, and 100G Ethernet standards for flexible deployment scenarios.
- 10/40/100G network support
- Backward compatible with OM3
- Future-proof infrastructure investment
Highlights
- OM4 multimode fiber optic cable supporting data rates up to 100 Gbit/s
- LC to LC duplex configuration with UPC-polished connectors for low return loss
- 3-meter (9.8-foot) length with bend-insensitive 50/125µm fiber construction
- Push-pull tab design for easy insertion and removal in high-density installations
- LSZH (Low-Smoke Zero-Halogen) jacket for enhanced safety in enclosed spaces
- Backward compatible with OM3 infrastructure and 10G/40G networks
- Compatible with SFP+, QSFP+, and QSFP28 transceivers and modules
- Aramid-reinforced jacket with molded strain relief for durability
- Aqua color coding for easy identification in complex cable infrastructures
- RoHS 2, REACH, and WEEE compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 450FBLCLC3PP |
| Brand Name | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Multi-mode |
| Fiber Type | Duplex |
| Fiber Category | OM4 |
| Cable Length | 9.8 ft (3 m) |
| Connector Type on First End | LC/UPC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC/UPC Network - Male |
| Connector Type on Second End | LC/UPC Network - Male |
| Connector Gender on Second End | Male |
| Jacket Type | LSZH |
| Device Supported | Network Device,Switch,Server,Module |
| Data Transfer Rate | 100 Gbit/s |
| Features | Bend Insensitive,Bendable,Molded,Strain Relief,UPC Polished Connector,Flame Retardant |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Aqua |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What types of network equipment is this fiber optic cable compatible with?
This OM4 cable is compatible with a wide range of networking equipment including switches, servers, storage arrays, and transceiver modules. It works with SFP+, QSFP+, and QSFP28 form factors, making it suitable for connecting network devices in data centers, server rooms, and enterprise networking environments. The cable supports connections between network devices, switches, servers, and various optical modules.
What are the advantages of the push-pull tab design on this cable?
The push-pull tab design provides easier access for precise insertion and removal of connectors in high-density installations where space is limited. This feature allows technicians to quickly connect or disconnect cables without needing to grip the connector body directly, reducing the risk of disturbing adjacent connections. The tabs also facilitate tool-less polarity swapping through retractable connector housings, simplifying maintenance and reconfiguration tasks.
How does the bend-insensitive fiber technology benefit installation?
The bend-insensitive fiber core maintains signal integrity even when the cable is routed through tight bends or confined spaces. This technology supports a loaded bend radius of 6cm and an unloaded radius of 3cm, allowing for more flexible cable management in intricate environments. The enhanced micro-bending resistance prevents signal degradation that can occur with traditional fiber when subjected to tight routing conditions, ensuring reliable performance in complex installations.
What safety features does the LSZH jacket provide?
The LSZH (Low-Smoke Zero-Halogen) jacket emits minimal toxic fumes and smoke if combusted, making this cable safer for use in enclosed or poorly ventilated spaces such as data centers, server rooms, and riser applications. This jacket material reduces the risk of hazardous gas emissions during fire situations, providing enhanced safety for personnel and equipment. The cable also features flame-retardant construction and complies with RoHS 2, REACH, and WEEE environmental standards.
What is the difference between UPC and PC polish on fiber connectors?
UPC (Ultra Physical Contact) polish provides improved return loss performance compared to standard PC (Physical Contact) polish. The UPC polish creates a more precise fiber endface with a slight curvature that reduces back reflection, resulting in better signal quality and lower insertion loss. This enhanced polish is particularly beneficial for high-speed applications like 100G networks where signal integrity is critical. The UPC connectors on this cable help maintain optimal optical performance in demanding networking environments.
Can this OM4 cable be used with existing OM3 infrastructure?
Yes, this OM4 cable is fully backward compatible with OM3 infrastructure and can be used in networks supporting 10G and 40G Ethernet standards. The cable maintains the same 50/125µm fiber geometry as OM3 cables while offering higher bandwidth capacity for future upgrades to 100G networks. This compatibility allows for seamless integration into existing installations while providing a path for bandwidth expansion as network requirements grow.
