StarTech. com 4K7012IC-EXTEND-HDMI HDMI Extender & Splitter Over CAT6 - 4K 60Hz - 1 x 2 Distribution Kit - Up to 230ft - 70m
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This HDMI over Ethernet extender utilizes advanced signal processing to maintain 4K Ultra HD resolution at 60Hz refresh rates across extended distances. The system supports 2-channel audio transmission alongside video, ensuring synchronized audio-video playback for presentations, digital signage, and multimedia applications.
The extender operates over standard CAT6 or CAT6a cabling, with the transmitter unit distributing power to both receivers through the Ethernet cables. This power-over-cable design simplifies installation by eliminating the need for separate power sources at each receiver location, reducing cable clutter and improving deployment flexibility in spaces with limited power access.
Key Product Advantages
This HDMI distribution kit offers several distinct advantages for professional AV deployments. The power-over-cable architecture means only the transmitter requires connection to the included universal power adapter, with both receivers drawing power through the CAT6/6a cables. This significantly reduces installation complexity and eliminates the need for multiple power outlets near display locations.
Simplified Installation
No drivers, software, or IP configuration required. The plug-and-play design works immediately with any source device and display combination.
- Compatible with all major operating systems
- Works with Intel, AMD, and Apple Silicon platforms
- No network configuration needed
Versatile Mounting
Includes mounting brackets for wall, ceiling, or under-table installation at both transmitter and receiver locations.
- Compact form factor for discreet placement
- Three mounting kits included
- Flexible deployment in tight spaces
Deployment / Use Cases
This HDMI extender and splitter is ideal for commercial environments where high-quality video distribution over distance is required. The 1x2 configuration allows a single source to drive two displays simultaneously, making it perfect for digital signage applications in retail stores, airports, or corporate lobbies where consistent messaging across multiple screens is essential.
In educational settings, the system enables instructors to share content from a central computer to multiple classroom displays without signal degradation. For corporate boardrooms and conference rooms, it provides reliable HDMI extension for presentations and video conferences, with the extended distance capability allowing for flexible room layouts and equipment placement.
Digital Signage
Drive multiple displays from a single media player or computer for consistent advertising, information displays, or wayfinding systems.
Education & Training
Extend instructor workstation signals to multiple classroom displays or projection systems without quality loss.
Physical Profile

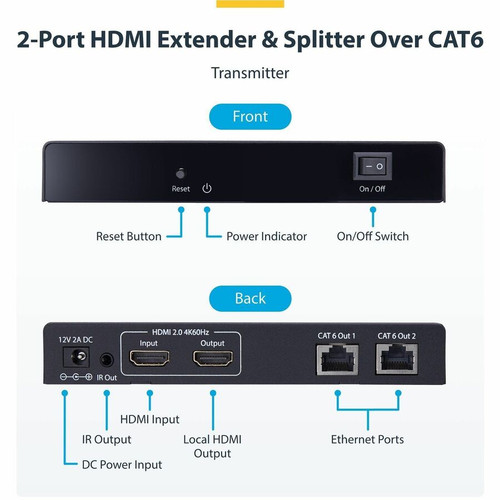

The extender system features a compact black design with dimensions of 6.10 inches in length, 2.80 inches in width, and 0.90 inches in height (154.94 x 71.12 x 22.86 mm). This slim profile allows for discreet installation behind displays, under tables, or in cable management channels. The black finish blends seamlessly with most professional AV equipment and environments.
- Width
- 2.80" (71.12 mm)
- Height
- 0.90" (22.86 mm)
- Length
- 6.10" (154.94 mm)
What's in the Box
The complete distribution kit includes all necessary components for immediate deployment.
Highlights
- Extends HDMI signals up to 230ft (70m) over CAT6/6a cabling
- Supports 4K 60Hz video with 2-channel audio transmission
- 1x2 distribution kit with one input and two outputs
- Power-over-cable design simplifies installation
- No drivers, software, or IP configuration required
- Works with any operating system and hardware platform
- Includes mounting brackets for versatile installation
- Compact black design for discreet placement
- 2-year limited warranty with lifetime technical support
- RoHS and WEEE compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 4K7012IC-EXTEND-HDMI |
| Brand Name | StarTech.com |
| Product Name | HDMI Extender |
| Product Type | HDMI Extender |
| Technical Information | |
| Maximum Operating Distance | 229.66 ft (70000 mm) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| HDMI | Yes |
| Number of HDMI Ports | 4 |
| Power Description | |
| Input Voltage | 240 V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 0.90" (22.86 mm) |
| Width | 2.80" (71.12 mm) |
| Length | 6.10" (154.94 mm) |
| Miscellaneous | |
| Package Contents | 1x HDMI Transmitter 2x HDMI Receiver 1x IR Blaster 2x IR Receiver 3x Mounting Kit 1x Universal Power Adapter (NA/UK/EU/ANZ) 1x Product Documentation |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance this HDMI extender supports?
The StarTech.com HDMI extender supports transmission distances up to 230 feet (70 meters) when using CAT6 or CAT6a cabling. This extended range allows for flexible placement of displays relative to the source device in large rooms, across multiple rooms, or in installations where the source needs to be located away from the displays.
Does this extender require separate power for each receiver unit?
No, this system uses a power-over-cable design where only the transmitter unit connects to the included power adapter. Both receivers draw power through the CAT6/6a cables from the transmitter, eliminating the need for separate power outlets at each display location. This simplifies installation and reduces cable clutter in environments with limited power access.
Is any software or driver installation required for this HDMI extender?
No software, drivers, or IP configuration is required for this HDMI extender. It functions as a plug-and-play solution that works immediately with any source device and display combination. The system is compatible with all major operating systems including Windows, macOS, and ChromeOS, and works with hardware platforms from Intel, AMD, and Apple Silicon.
What mounting options are included with this distribution kit?
The kit includes three mounting kits with brackets that support wall, ceiling, or under-table installation for both the transmitter and receiver units. This versatile mounting system allows for discreet installation in various environments, with the compact form factor enabling placement in tight spaces behind displays or within cable management channels.
What is included in the package with this HDMI extender?
The complete distribution kit includes one HDMI transmitter, two HDMI receivers, one IR blaster, two IR receivers, three mounting kits, one universal power adapter compatible with NA/UK/EU/ANZ outlets, and product documentation. This comprehensive package provides everything needed for immediate deployment in professional AV installations.
