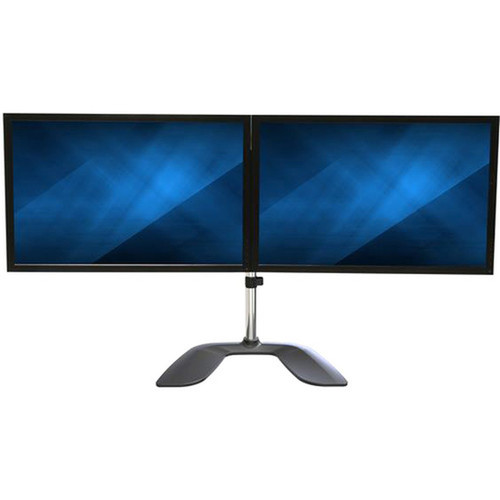

StarTech.com ARMDUALSS Dual Monitor Stand - Articulating - Ergonomic - for up to 32" VESA Displays - 35.27 lb Capacity - Black/Silver
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This dual monitor stand supports VESA 75x75 mm and 100x100 mm mounting patterns, making it compatible with a wide range of displays. The articulating arms provide a full 360° rotation, allowing monitors to be positioned back-to-back or in any orientation that suits your workflow. Height adjustment along the 16.7-inch pole offers 42.4 cm of vertical travel, accommodating different viewing preferences and desk configurations.
The stand's ergonomic features include +90°/-40° tilt and +/-90° swivel, enabling optimal viewing angles to reduce neck and eye strain. An articulation tension adjustment tool is included for fine-tuning the arm resistance, ensuring smooth movement without monitor sag. The base measures 11.8" x 20.5" (300 mm x 520 mm), providing a broad footprint for enhanced stability without requiring desk clamping or through-hole mounting.
Key Product Advantages
The ARMDUALSS stand combines heavy-duty construction with precise ergonomic adjustments, making it ideal for demanding office and professional environments. Its free-standing design eliminates the need for desk modifications, while the anti-slip base ensures stability on various surfaces.
Enhanced Workspace Flexibility
The articulating arms allow monitors to be positioned independently, supporting collaborative setups, presentations, or multi-tasking workflows. The 360° rotation enables portrait or landscape orientations as needed.
- Back-to-back monitor configurations
- Independent arm articulation
- Portrait and landscape orientation support
Durable and Stable Build
Constructed from steel and aluminum with a plastic finish, this stand offers a robust yet lightweight profile. The U-shaped base distributes weight evenly, preventing tipping even with larger displays.
- Steel and aluminum construction
- U-shaped stability base
- Anti-slip rubber padding
Deployment / Use Cases
This dual monitor stand is well-suited for office workstations, trading desks, design studios, and command centers where multiple large displays are required. Its ergonomic adjustments support prolonged use, reducing physical strain during extended computing sessions.
The free-standing form factor makes it ideal for shared workspaces, temporary setups, or environments where desk clamping is not feasible. The stand's compatibility with up to 32-inch displays accommodates high-resolution monitors used in graphic design, video editing, financial analysis, and system monitoring applications.
Office and Professional Environments
Provides stable dual-monitor support for productivity tasks, data analysis, and multi-window workflows. The cable management keeps desks clutter-free.
- Corporate workstations
- Trading and financial desks
- Design and editing stations
Collaborative and Presentation Spaces
The 360° rotation and articulating arms allow monitors to be easily shared or positioned for group viewing, making it useful in meeting rooms or training areas.
- Team collaboration setups
- Presentation and training rooms
- Customer service counters
Physical Profile
The stand features a dual-color design with black and silver accents, blending with modern office decor. Its compact base footprint minimizes desk space usage while providing ample stability. The stand height is 21.70 inches (551.18 mm), with a width of 4.60 inches (116.84 mm) for the center pole, allowing it to fit comfortably on standard depth desks.
- Width
- 4.60" (116.84 mm)
- Height
- Yes
- Weight
- 10.60 lb (4808.08 g)
What's in the Box
The package includes all necessary components for assembly and installation, along with tools for adjustment and mounting.
Highlights
- Supports two monitors up to 32 inches each with VESA 75x75/100x100 mm mounting
- Articulating arms offer tilt, swivel, and 360° rotation for ergonomic positioning
- Height adjustable along a 16.7-inch pole with micro-adjustment for precise alignment
- Free-standing U-shaped base with anti-slip rubber pads for desk protection
- Steel and aluminum construction with a 35.27 lb per arm load capacity
- Includes cable management clips to organize wires and maintain a tidy workspace
- Slide-and-click assembly design for quick and tool-free setup
- Comes with articulation tension adjustment tool for customized arm resistance
- 5-year limited warranty for long-term reliability assurance
- EU RoHS compliant with environmentally friendly materials
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ARMDUALSS |
| Brand Name | StarTech.com |
| Product Name | Dual-Monitor Stand - Articulating - Steel & Aluminum |
| Product Type | Monitor Stand |
| Technical Information | |
| Maximum Screen Size Supported | 32" |
| Maximum Load Capacity | 35.27 lb (16000 g) |
| Height Adjustable | Yes |
| Features | Articulating Arm,Tilt,Swivel,Rotate,Ergonomic |
| Physical Characteristics | |
| Mounting Pattern | 75 x 75,100 x 100 |
| Color Family | Dual Color |
| Product Color | Black,Silver |
| Product Material | Steel,Aluminum,Plastic |
| Form Factor | Desktop,Freestanding |
| Height | 21.70" (551.18 mm) |
| Width | 4.60" (116.84 mm) |
| Weight (Approximate) | 10.60 lb (4808.08 g) |
| Miscellaneous | |
| Package Contents | 2 x Swivel Arms 1 x Pole 1 x Base 1 x Shoulder 1 x Cable-Management Clip 2 x VESA Mounts 8 x M4 x 12 mm Screws 8 x M4 x 16 mm Screws 8 x M5 x 12 mm Screws 8 x M5 x 16 mm Screws 8 x M4 x 20 mm Screws 8 x M5 x 20 mm Screws 8 x Washers 16 x Spacers 1 x 3 mm Hex Key 1 x 4 mm Hex Key 1 x 6 mm Hex Key 1 x User Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum screen size and weight per arm that this stand supports?
The StarTech.com ARMDUALSS dual monitor stand supports screens up to 32 inches diagonally per arm, with a maximum load capacity of 35.27 pounds (16 kg) per arm. This capacity accommodates most modern office and professional displays within that size range, including many curved and flat-panel monitors.
Is this monitor stand compatible with VESA mounting patterns?
Yes, this stand is compatible with VESA 75x75 mm and 100x100 mm mounting patterns. It includes two VESA mounts and a comprehensive set of screws, washers, and spacers (M4 and M5 sizes in various lengths) to ensure secure attachment to monitors with these standard mounting interfaces.
What ergonomic adjustments does this dual monitor stand offer?
The stand provides height adjustment along a 16.7-inch pole, tilt from +90° to -40°, swivel of +/-90°, and full 360° rotation. These adjustments allow you to position monitors at optimal viewing angles, reduce glare, and align screens precisely for multi-monitor workflows, enhancing comfort during extended use.
Does this stand require drilling or clamping to the desk?
No, this is a free-standing monitor stand with a U-shaped base that sits on your desk surface. It uses anti-slip rubber pads to prevent movement and scratching, eliminating the need for drilling, clamping, or any permanent desk modifications. This makes it ideal for shared workspaces or temporary setups.
What is included in the package for assembly and installation?
The package includes two swivel arms, one pole, one base, one shoulder, one cable-management clip, two VESA mounts, screws (M4 and M5 in 12 mm, 16 mm, and 20 mm lengths), washers, spacers, three hex keys (3 mm, 4 mm, and 6 mm), and a user manual. All necessary hardware and tools are provided for complete assembly.
What warranty and environmental certifications come with this product?
The StarTech.com ARMDUALSS dual monitor stand comes with a 5-year limited warranty, ensuring long-term reliability and support. It is also EU RoHS compliant, meeting restrictions on hazardous substances, and follows REACH chemical regulations, making it an environmentally friendly choice for office and professional use.
