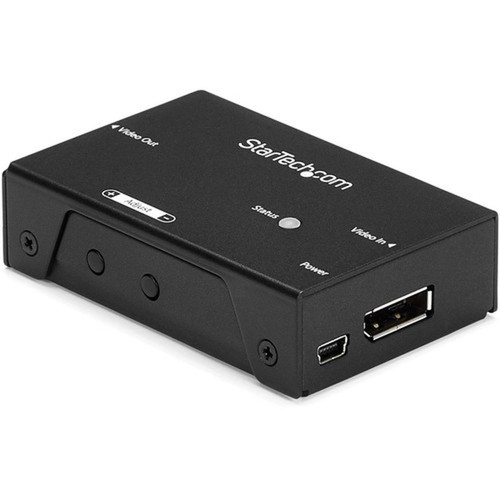

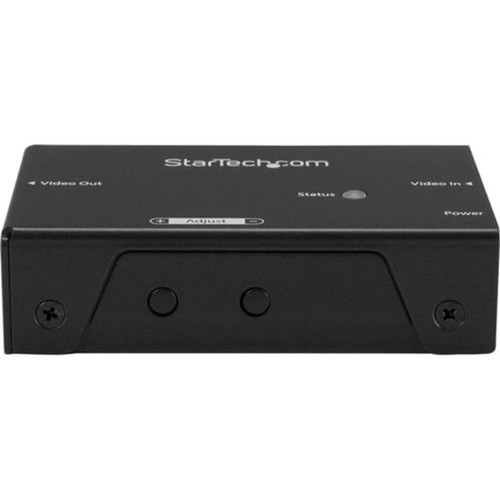

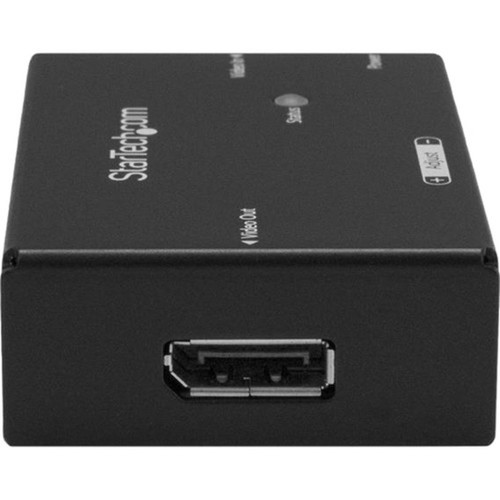

StarTech. com DPBOOST DisplayPort Signal Booster Extender - 4K 60Hz - Amplify Video Signal Up to 42 ft
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DisplayPort extender operates within a frequency range of 30 Hz to 60 Hz, supporting maximum video resolutions of 3840 × 2160 pixels. It features one DisplayPort input and one output, with USB power connectivity for easy integration into existing systems. The built-in equalization switch optimizes signal strength across varying distances, ensuring consistent performance.
The device is compatible with 7.1 surround sound audio, enhancing multimedia experiences. It accepts input voltages of 120 V AC or 230 V AC, providing flexibility for different regional power standards. Environmental certifications include RoHS, WEEE, and REACH compliance, reflecting a commitment to sustainable manufacturing.
This section brings together practical product details such as Minimum Frequency, Maximum Frequency, Maximum Video Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DPBOOST excels in extending high-definition video signals with minimal signal degradation, thanks to its advanced amplification technology. It maintains picture quality over extended cable runs, reducing the need for costly active cables or complex setups.
Enhanced Distance Coverage
Extends 4K signals up to 42 feet and supports 1080p resolutions up to 65 feet, offering versatility for various installation scenarios.
- Built-in equalization switch
- Optimized for long cable runs
Audio Support
Delivers 7.1 surround sound audio alongside video, ensuring immersive audio-visual experiences for gaming, movies, and presentations.
Compact Design
With dimensions of 3.10" × 2" × 0.80", the booster fits easily behind monitors or in tight spaces, and includes rubber feet for stable placement.
Deployment / Use Cases
The StarTech.com DPBOOST is ideal for environments where display sources are located far from monitors, such as in digital signage installations, conference rooms, or home theaters. It simplifies setups by allowing longer cable runs without signal boosters at intermediate points.
In professional settings, this extender supports multi-monitor workstations by ensuring reliable signal transmission across extended distances. For gaming setups, it maintains high refresh rates and resolution for an immersive experience. Its backward compatibility with 1080p resolutions makes it suitable for legacy systems, providing a cost-effective upgrade path.
Digital Signage
Extend video signals to displays in retail stores, airports, or corporate lobbies without quality loss.
Home Theater
Connect media players to projectors or TVs across rooms, supporting 4K HDR content and surround sound audio.
Physical Profile
The DPBOOST features a compact, lightweight design measuring 3.10 inches in length, 2 inches in width, and 0.80 inches in height, with a weight of approximately 5.40 ounces. Its small footprint allows for easy concealment behind equipment, and the included rubber feet prevent sliding on surfaces. The device's robust construction ensures durability in both stationary and mobile applications.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.80" (20.32 mm), 2" (50.80 mm), 5.40 oz (153.09 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2" (50.80 mm)
- Height
- 0.80" (20.32 mm)
- Weight
- 5.40 oz (153.09 g)
- Length
- 3.10" (78.74 mm)

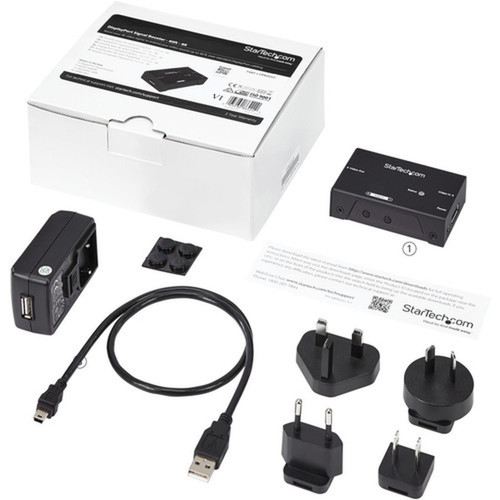

What's in the Box
The package includes all necessary components for immediate setup and installation.
Highlights
- Extends 4K 60Hz DisplayPort signals up to 42 feet
- Supports 7.1 surround sound audio transmission
- Backward compatible with 1080p resolutions up to 65 feet
- Compact form factor for discreet installation
- Includes mounting hardware and rubber feet
- Built-in equalization switch for signal optimization
- RoHS, WEEE, and REACH environmental compliance
- 2-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DPBOOST |
| Brand Name | StarTech.com |
| Product Name | DisplayPort Signal Booster - DP Extender - 4K 60Hz |
| Packaged Quantity | 1 Each |
| Product Type | Signal Amplifier |
| Technical Information | |
| Minimum Frequency | 30 Hz |
| Maximum Frequency | 60 Hz |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Interfaces/Ports | |
| DisplayPort | Yes |
| USB | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of DisplayPort Outputs | 1 |
| Media & Performance | |
| Maximum Operating Distance | 42 ft (12801.60 mm) |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Height | 0.80" (20.32 mm) |
| Width | 2" (50.80 mm) |
| Length | 3.10" (78.74 mm) |
| Weight (Approximate) | 5.40 oz (153.09 g) |
| Miscellaneous | |
| Package Contents | DisplayPort Signal Booster - DP Extender - 4K 60Hz 1 x Power Adapter 1 x Usb Power Cable 4 x Rubber Feet |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum resolution supported by the DPBOOST?
The DPBOOST supports a maximum video resolution of 3840 × 2160 pixels, commonly known as 4K. This ensures high-definition visuals for applications like gaming, video editing, and digital signage, with a refresh rate of up to 60 Hz for smooth motion.
How far can this extender transmit a 4K signal?
It can transmit 4K signals up to 42 feet (approximately 12.8 meters) without significant degradation. For 1080p resolutions, it supports distances up to 65 feet, making it versatile for various setup lengths.
Does the DPBOOST require external power?
Yes, the extender requires power via the included USB power cable and adapter. It accepts input voltages of 120 V AC or 230 V AC, accommodating different regional power standards for global compatibility.
Is this device compatible with audio signals?
Yes, the DPBOOST supports 7.1 surround sound audio alongside video signals. This allows for immersive audio experiences in home theaters, gaming setups, or professional presentations without separate audio cables.
What is included in the package?
The package includes the DisplayPort Signal Booster unit, one power adapter, one USB power cable, and four rubber feet. These components ensure easy installation and stable placement in various environments.
What warranty does StarTech.com offer for this product?
StarTech.com provides a 2-year limited warranty for the DPBOOST, covering defects in materials and workmanship. This warranty reflects the manufacturer's confidence in the product's durability and performance.
What resolution or display format is specified?
It features a display specification of 3840 × 2160, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
