StarTech.com DK30CH2DEP Triple 4K Monitor USB-C Docking Station - 100W PD - 2x DP + HDMI - 6x USB 5Gbps - Gigabit Ethernet - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This docking station leverages DisplayLink technology to enable triple 4K display support on laptops that natively limit external monitor connectivity. The video subsystem comprises two DisplayPort 1.2 and one HDMI 2.0 output, each capable of driving a 4K display at 60Hz. The USB 3.0 Type-C host interface operates at 5Gbps, carrying display, data, and power signals simultaneously.
Power delivery is managed through a 100W universal power adapter that charges compatible laptops while powering all connected peripherals. The dock's six USB 3.0 ports include four Type-A and two Type-C connectors, all operating at 5Gbps speeds. Network connectivity is provided through a dedicated Gigabit Ethernet port with hardware-based MAC address pass-through capability.
Relevant factors for this section include Connectivity Technology, Device Supported, Host Interface, Audio Line Out. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DK30CH2DEP solves critical workspace expansion challenges by delivering triple 4K monitor support through a single cable connection. This capability is particularly valuable for Apple MacBook Air and MacBook Pro models with base M-Series chips, which natively support only one external display. The dock's universal driver support ensures consistent performance across Windows, macOS, ChromeOS, and Ubuntu operating systems.
Enhanced Productivity
Triple 4K display support expands screen real estate for financial analysis, software development, video editing, and multi-tasking workflows.
- Simultaneous 4K output on three displays
- Maintains native laptop display functionality
- Supports extended and mirrored display modes
IT Management Features
Built-in tools simplify deployment and network management in enterprise environments.
- Network MAC Address Pass-Through for security compliance
- WiFi Auto Switching optimizes network performance
- USB Event Monitoring for device management
Deployment / Use Cases
This docking station excels in corporate and educational environments where users require expansive multi-monitor setups with consistent connectivity. Financial analysts can run multiple trading platforms and market data feeds across three 4K displays, while software developers benefit from extended code, documentation, and testing environments. The TAA compliance makes it suitable for government procurement and contractors requiring Trade Agreements Act certification.
Creative professionals working with video editing, 3D modeling, or graphic design applications gain substantial workspace expansion. The dock's universal compatibility allows IT departments to standardize on a single docking solution for mixed fleets of Windows laptops, MacBooks, Chromebooks, and Ubuntu workstations. Remote workers and home office users achieve professional-grade connectivity without complex cable management.
Enterprise IT Deployment
Standardize docking solutions across diverse laptop fleets while maintaining security compliance and management capabilities.
Creative & Development Workstations
Expand visual workspace for video editing timelines, code development environments, and design application toolbars.
Physical Profile

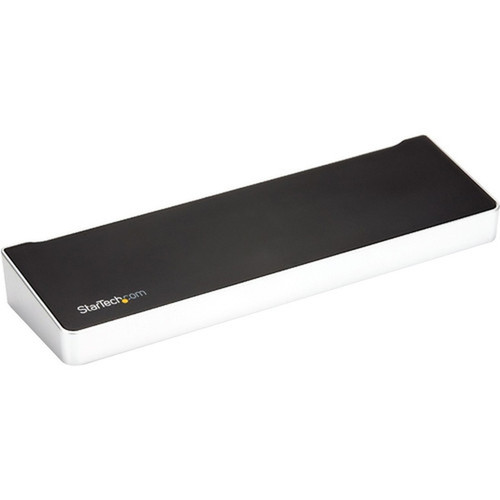

The docking station features a compact, low-profile design measuring 10.60" (269.24 mm) in depth, 3.20" (81.28 mm) in width, and 1.30" (33.02 mm) in height. Its dual-tone Black and Silver finish complements modern office aesthetics while the 13.60 oz (385.55 g) weight ensures stability on desks without excessive bulk. The included 1-meter USB-C cable provides flexible placement options relative to the laptop position.
- Width
- 3.20" (81.28 mm)
- Depth
- 10.60" (269.24 mm)
- Height
- 1.30" (33.02 mm)
- Weight
- 13.60 oz (385.55 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights

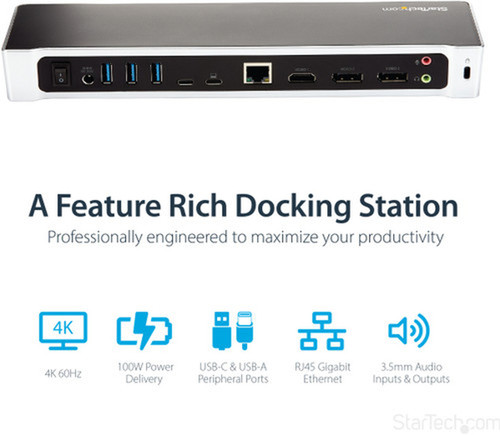

- Supports triple 4K monitors simultaneously through 2x DisplayPort and 1x HDMI outputs
- Delivers 100W Power Delivery to charge laptops while docking
- Includes 6 USB 3.0 ports (4x Type-A, 2x Type-C) operating at 5Gbps speeds
- Gigabit Ethernet port with MAC Address Pass-Through for network security
- Compatible with Windows, macOS, ChromeOS, and Ubuntu operating systems
- Enables triple display support on Apple M-Series MacBooks that natively limit to one external monitor
- TAA compliant for government and educational procurement
- Includes advanced IT tools: WiFi Auto Switching and USB Event Monitoring
- 3-year limited warranty with RoHS environmental compliance
- Compact design with Black and Silver finish, includes security K-Slot
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DK30CH2DEP |
| Brand Name | StarTech.com |
| Product Name | Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD |
| Packaged Quantity | 1 Each |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Device Supported | Notebook,Tablet PC |
| Interfaces/Ports | |
| Host Interface | USB 3.0 Type C |
| Audio Line Out | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB Type-C (24 pin) USB 3.0 (5Gbps) Female |
| Network (RJ-45) | Yes |
| Number of DisplayPort Outputs | 2 |
| DisplayPort | Yes |
| Headphone/Microphone Combo Port | Yes |
| Microphone | Yes |
| Number of HDMI Outputs | 1 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Software | |
| Operating System Supported | Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,ChromeOS 55+,Ubuntu 18.04 |
| Power Description | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 1.30" (33.02 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 10.60" (269.24 mm) |
| Weight (Approximate) | 13.60 oz (385.55 g) |
| Miscellaneous | |
| Package Contents | Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD 1 x USB-C Cable 1 x Universal Power Adapter (NA/JP, ANZ) 1 x Instruction Manual |
| Compatibility | Lenovo X1 Lenovo Thinkpad P Series Dell Latitude Notebooks Dell Precision Notebooks Dell XPS 15 Notebooks HP Spectre Notebooks HP Zbook Notebooks Apple MacBook Pro 16 |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many external monitors does this docking station support?
The StarTech.com DK30CH2DEP supports up to three external 4K monitors simultaneously. It provides two DisplayPort 1.2 outputs and one HDMI 2.0 output, each capable of driving a 4K display at 60Hz. This triple-display capability is particularly valuable for laptops with limited native external display support, such as Apple MacBooks with base M-Series processors.
What laptop charging power does this dock provide?
This docking station delivers 100W of Power Delivery through its USB-C host connection. This sufficient wattage charges most modern business laptops, including high-performance Windows workstations and Apple MacBook Pro models, while simultaneously powering all connected peripherals. The universal power adapter supports North American, Japanese, and Australian/New Zealand electrical standards.
Which operating systems are compatible with this docking station?
The dock is compatible with Windows 7 through Windows 11, macOS 10.12 Sierra and later, ChromeOS 55+, and Ubuntu 18.04+. DisplayLink drivers are required for Windows and macOS systems, which are included via the DisplayLink Update Utility. The universal compatibility makes this dock suitable for mixed-IT environments with diverse laptop fleets.
Can I connect this dock to a laptop with only USB-A ports?
Yes, you can connect to USB-A laptops using a USB-C to USB-A adapter (sold separately, such as StarTech.com USB315AC1M). However, when connecting via USB-A, Power Delivery charging is not available, and display support is limited to dual monitors instead of triple. For full functionality including 100W charging and triple display support, a native USB-C connection is required.
What IT management features does this dock include?
The dock includes several enterprise-grade management features: Network MAC Address Pass-Through maintains your laptop's MAC address for network security compliance, WiFi Auto Switching optimizes wireless network performance when Ethernet is connected, and USB Event Monitoring provides device connection tracking. These tools help IT departments maintain security and manage peripheral connectivity in corporate environments.
What certifications and compliance standards does this dock meet?
This docking station is TAA compliant for government procurement, meets USB-IF and VESA standards for interoperability, carries EU RoHS environmental certification, and complies with REACH and WEEE directives. It includes a 3-year limited warranty and is manufactured in Taiwan. These certifications ensure the product meets commercial, government, and environmental standards for professional deployment.
