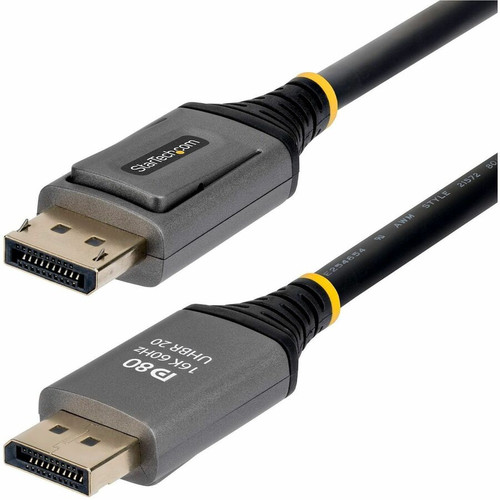

StarTech. com DP21V-2M-DP80-CABLE 2m DisplayPort 2. 1 Cable - VESA Certified DP80 - 80Gbps - 10K/8K 60Hz - 16K/8K 240Hz w/ DSC 1. 2a - HDR - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DisplayPort 2.1 cable operates at DP80 bandwidth (80 Gbps) and supports UHBR20 link rate, ensuring full uncompressed 10K (10240×4320) at 60Hz. With DSC 1.2a, it can achieve 16K (15360×8640) at 60Hz or 8K (7680×4320) at 240Hz. The cable also supports 4K at 240Hz and 8K at 120Hz without compression, depending on the source and display.
The cable carries 32-channel and 7.1 surround audio, and is compatible with Apple MacBook and MacBook Pro models via USB-C to DP adapters. It supports HDCP 2.3 for protected content, HDR10 for enhanced dynamic range, and MST for daisy-chaining multiple monitors. The passive design ensures broad compatibility without active electronics.
Key Product Advantages
The VESA certification guarantees the cable meets the DP80 specification, ensuring reliable performance at full bandwidth. The aluminum mylar foil shielding and braided construction provide EMI protection, maintaining signal integrity in electrically noisy environments. The latching connectors prevent accidental disconnection, and the Quick ID labels on each connector make it easy to identify the cable's capabilities at a glance.
Ultra-High Resolution Readiness
Delivers uncompressed 10K/8K 60Hz with 10-bit color and 4:4:4 chroma, supporting demanding professional video and design workflows.
Durable and Flexible Design
Flexible thermoplastic elastomer (TPE) jacket withstands tight bends, and the cable is built with strain relief at both ends to extend service life.
Deployment / Use Cases
This cable is suited for high-resolution AV installations, digital signage, medical imaging, and video production where uncompressed 10K/8K throughput is required. It can connect workstations to large-format displays, external GPU enclosures, or docking stations. The MST support allows daisy-chaining multiple monitors from a single DP port, simplifying cable management in multi-display setups.
For Apple MacBook Pro users (M-series Pro/Max), pairing this cable with a USB-C to DP adapter enables full DP80 bandwidth to external monitors. In enterprise environments, the VESA certification and compliance with RoHS and WEEE directives ensure it meets regulatory standards. The lifetime warranty and free 24/5 technical support provide long-term reliability.
Professional AV Workflows
Connect to 8K/10K monitors for color-critical video editing, 3D rendering, or broadcast applications.
Multi-Monitor Productivity
Use MST to drive multiple 4K displays from a single DP port, ideal for financial trading, data analysis, or software development.
Physical Profile
The cable has an outer diameter of 0.30" (7.62 mm) and weighs 7.90 oz (223.96 g). The black ABS connectors with nickel plating provide a professional appearance, and the flexible TPE jacket is rated VW-1 for flame retardancy. The cable is designed to maintain flexibility while protecting internal conductors, making it suitable for tight routing in racks or behind desks.
- Weight
- 7.90 oz (223.96 g)
- Length
- 6.6 ft (2 m)
Highlights
- VESA Certified DP80 (80Gbps) cable for guaranteed performance with UHBR20 support
- Supports uncompressed 10K/8K 60Hz, and up to 16K 60Hz / 8K 240Hz with DSC 1.2a
- Features latching DisplayPort connectors for a secure, stable connection
- Shielded with aluminum mylar foil for EMI protection, nickel-plated connectors
- Flexible TPE jacket rated VW-1, RoHS and WEEE compliant
- Supports HDR10, HDCP 2.3, MST, and VRR for versatile use

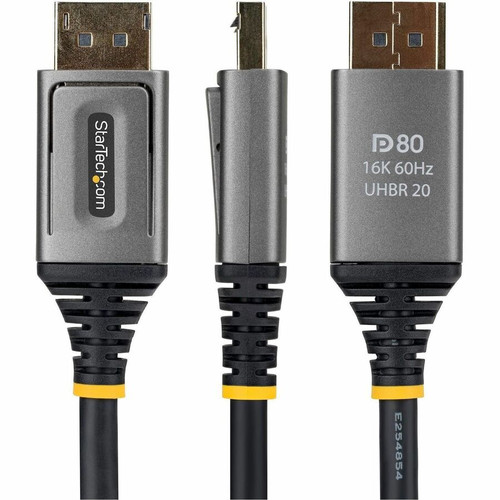

- Quick ID labels on connectors for easy spec identification
- Compatible with Apple MacBook and MacBook Pro via USB-C to DP adapters
- Lifetime warranty with 24/5 multilingual technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP21V-2M-DP80-CABLE |
| Brand Name | StarTech.com |
| Product Name | 2m DisplayPort 2.1 Cable |
| Packaged Quantity | 1 |
| Product Type | A/V Cable |
| Technical Information | |
| Cable Type | DisplayPort |
| Cable Length | 6.6 ft (2 m) |
| Outer Diameter | 0.30" (7.62 mm) |
| Connector Type on First End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1x Displayport 2.1 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1x Displayport 2.1 Digital Audio/Video - Male |
| Connector Plating | Nickel |
| Shielding | Yes |
| Jacket Type | VW-1 |
| Device Supported | Audio/Video Device,Monitor,Computer,Hub,Workstation,External GPU,Display,Notebook,MacBook,MacBook Pro |
| Data Transfer Rate | 80 Gbit/s |
| Supported Resolution | 10240 x 4320,7680 x 4320,4096 x 2160,15360 x 8640 |
| Features | Multi-Stream Transport (MST) Support,Variable Refresh Rate (VRR),Flexible,Strain Relief,Latching Connector,Display Stream Compression (DSC),HDCP 2.3,HDR10 Support,Display Stream Compression (DSC) 1.2a,Braided,EMI Protection,Durable,Passive |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Shielding Material | Aluminum Mylar Foil |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 7.90 oz (223.96 g) |
| Miscellaneous | |
| Brand Compatibility | Apple |
| Compatibility | Apple - MacBook / MacBook Pro |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum resolution and refresh rate supported by this cable?
This DisplayPort 2.1 cable supports uncompressed 10K (10240×4320) at 60Hz and 8K (7680×4320) at 60Hz. With Display Stream Compression 1.2a, it can achieve 16K (15360×8640) at 60Hz or 8K at 240Hz. It also supports 4K at 240Hz without compression.
Is this cable VESA certified?
Yes, the cable is VESA Certified for DP80 (80 Gbps) bandwidth with UHBR20 link rate support. This certification ensures it meets the DisplayPort 2.1 standard for guaranteed performance at high resolutions.
What type of shielding does this cable have?
The cable uses aluminum mylar foil shielding to protect against electromagnetic interference (EMI). It also features a braided design for added durability and signal integrity.
Does this cable support HDR and HDCP?
Yes, it supports HDR10 for enhanced color and contrast, as well as HDCP 2.3 for protected content playback. This makes it suitable for streaming 4K/8K video from services that require HDCP compliance.
Can I use this cable with an Apple MacBook Pro?
Yes, the cable works with Apple MacBook and MacBook Pro models that have USB-C ports when used with a USB-C to DisplayPort adapter. It is particularly optimized for M-series Pro/Max MacBooks to achieve high resolutions.
Does this cable support Multi-Stream Transport (MST) and Variable Refresh Rate (VRR)?
Yes, the cable supports MST, allowing you to daisy-chain multiple monitors from a single DisplayPort output. It also supports VRR, which is useful for gaming to reduce screen tearing.
