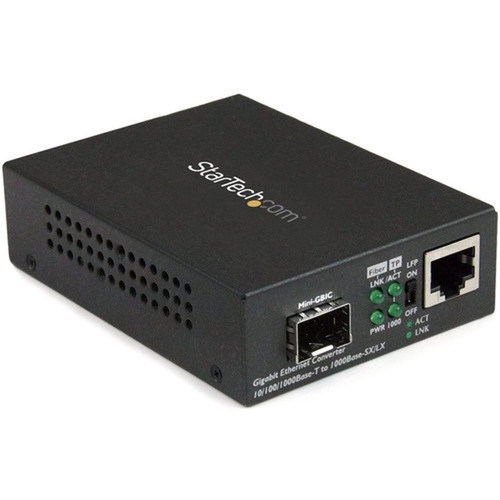

StarTech. com MCM1110SFP Gigabit Ethernet Fiber Media Converter - Open SFP Slot - 10/100/1000 Mbps - Desktop/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Gigabit Ethernet speeds, compatible with 10Base-T, 100Base-TX, and 1000Base-T over copper, and 1000Base-SX or 1000Base-LX over fiber. The single RJ45 port supports auto-negotiation to bridge different network speeds and devices seamlessly to a Gigabit fiber network.
The open SFP slot accommodates industry-standard SFP transceivers, providing flexibility for multi-mode or single-mode fiber connections based on distance requirements. Power is supplied via an included universal AC adapter (NA/EU/UK/AU), with a low power consumption of 10 watts.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), DVI, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MCM1110SFP delivers essential advantages for network extension and media conversion projects, combining flexibility, reliability, and ease of deployment.
Customizable Distance Extension
The open SFP slot allows selection of appropriate multi-mode or single-mode transceivers to match specific distance requirements, eliminating the need for fixed-distance converters.
- Supports MSA-compliant SFP transceivers
- Multi-mode and single-mode fiber compatibility
Advanced Networking Features
Built-in support for Link Fault Pass (LFP), Auto MDIX, IEEE 802.1q Tag VLAN pass-through, and 9K Jumbo Frames ensures compatibility with modern network infrastructures and reduces configuration complexity.
- Auto MDIX eliminates crossover cable needs
- VLAN pass-through maintains network segmentation
Flexible Installation Options
The compact desktop design includes wall-mounting capability, allowing installation in space-constrained environments such as wiring closets, equipment racks, or remote locations.
- Desktop or wall-mountable form factor
- Durable metal housing for protection
Deployment / Use Cases
This media converter is ideal for extending network segments beyond copper limitations, converting between media types, and integrating fiber backbone connections into existing copper-based networks.
Common deployment scenarios include connecting copper-based edge devices to fiber backbone networks, extending network reach in industrial environments where EMI resistance is critical, and bridging network segments in multi-building campuses where fiber provides distance and bandwidth advantages.
Network Extension Beyond 100 Meters
Convert copper Ethernet to fiber optic to overcome the 100-meter distance limitation of twisted pair cabling, enabling network extension across buildings or large facilities.
Fiber Backbone Integration
Connect copper-based switches, routers, or servers to fiber backbone networks, leveraging fiber's higher bandwidth and noise immunity for core network segments.
Physical Profile
The converter features a compact footprint measuring 1" (25.40 mm) in height, 2.80" (71.12 mm) in width, and 3.70" (93.98 mm) in depth, with a weight of approximately 6.50 oz (184.27 g). Its desktop design includes wall-mounting capability for flexible installation in wiring closets, equipment racks, or remote locations. The durable metal housing provides physical protection and heat dissipation for reliable operation.
- Width
- 2.80" (71.12 mm)
- Depth
- 3.70" (93.98 mm)
- Height
- 1" (25.40 mm)
- Weight
- 6.50 oz (184.27 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights

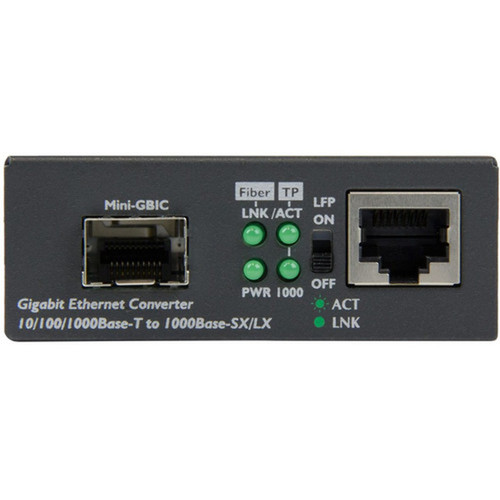

- Converts between RJ45 copper Ethernet and fiber optic connections
- Open SFP slot for customizable distance extension with MSA-compliant transceivers
- Supports 10/100/1000 Mbps speeds with auto-negotiation
- Compact desktop design with wall-mounting capability
- Durable metal housing for reliable operation
- Supports Link Fault Pass (LFP) and Auto MDIX
- IEEE 802.1q Tag VLAN pass-through and 9K Jumbo Frame support
- Universal power adapter included (NA/EU/UK/AU)
- Low power consumption at 10 watts
- 2-year limited warranty and TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MCM1110SFP |
| Brand Name | StarTech.com |
| Product Name | Gigabit Ethernet Fiber Media Converter with Open SFP Slot |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode,Single-mode |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10Base-T,1000Base-SX,1000Base-LX,100Base-TX,1000Base-T |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 10 W |
| Plug/Connector Type | Type N |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 2.80" (71.12 mm) |
| Depth | 3.70" (93.98 mm) |
| Weight (Approximate) | 6.50 oz (184.27 g) |
| Miscellaneous | |
| Package Contents | Gigabit Ethernet Fiber Media Converter with Open SFP Slot 1 x universal power adapter (NA/EU/UK/AU) |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What does this media converter do?
The StarTech.com MCM1110SFP converts between an RJ45 copper Ethernet connection and a fiber optic connection, allowing network extension beyond the 100-meter limit of copper cabling. It supports 10/100/1000 Mbps speeds and includes an open SFP slot for customizable distance extension using industry-standard transceivers.
What types of fiber does it support?
This converter supports both multi-mode and single-mode fiber through the open SFP slot. You can install virtually any MSA-compliant SFP transceiver to match your specific fiber type and distance requirements, providing flexibility for different network environments.
What networking features are included?
The converter includes Link Fault Pass (LFP) for network fault detection, Auto MDIX to eliminate crossover cable needs, IEEE 802.1q Tag VLAN pass-through to maintain network segmentation, and support for 9K Jumbo Frames to improve network efficiency with large data packets.
How is it powered and installed?

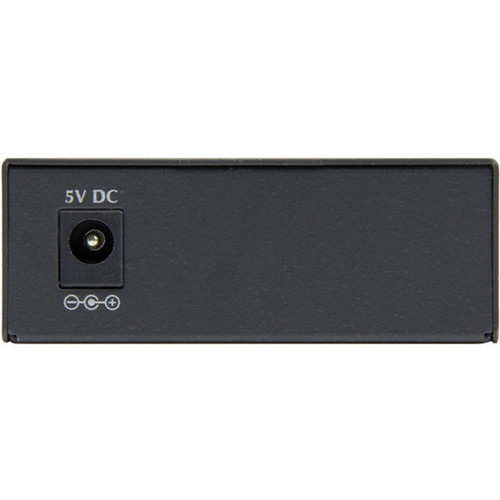

Power is supplied via an included universal AC adapter compatible with NA, EU, UK, and AU outlets, with a low power consumption of 10 watts. The compact unit can be installed as a desktop device or wall-mounted using its integrated mounting options, making it suitable for space-constrained locations.
What comes in the package?
The package includes the Gigabit Ethernet Fiber Media Converter with Open SFP Slot and one universal power adapter (NA/EU/UK/AU). No additional transceivers are included, allowing you to select the appropriate SFP module for your specific distance and fiber type requirements.
What certifications and warranty does it have?
This product is TAA compliant, meets EU RoHS environmental standards, and carries a 2-year limited warranty. It complies with Restriction of Hazardous Substances (RoHS) 2, REACH, and WEEE directives, and is manufactured in Taiwan with environmentally friendly materials.
