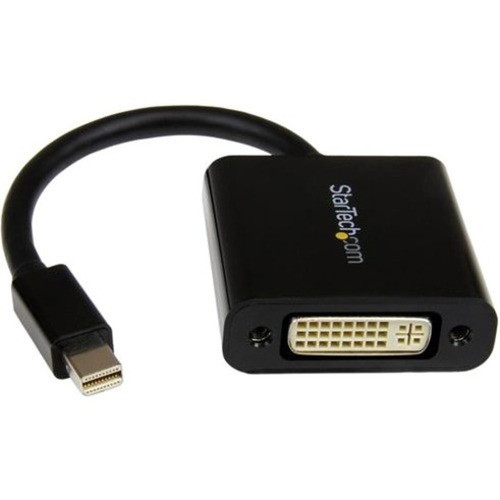

StarTech. com MDP2DVI3 Mini DisplayPort to DVI Adapter - Passive - 1080p/1920 x 1200 - mDP 1. 2 to DVI-D Single Link - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Technically, the MDP2DVI3 leverages a passive conversion mechanism, meaning it does not require external power or active signal processing. It complies with Mini DisplayPort 1.2 (HBR2) specifications and supports mDP++ sources, enabling compatibility with a wide range of devices including Thunderbolt 1 and 2 MacBooks, Microsoft Surface Pro models, desktops with AMD FirePro or NVIDIA Quadro graphics, laptops, mini-ITX systems, Intel NUC units, and docking stations.
The adapter incorporates Extended Display Identification Data (EDID) pass-through, which ensures proper communication between the source device and display for optimal resolution and refresh rate negotiation. This feature helps avoid compatibility issues and simplifies setup by automatically configuring supported video modes.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This adapter stands out for its reliability and ease of use in diverse computing environments. Its passive design eliminates the need for external power adapters or software installations, reducing setup complexity and potential points of failure. The screw-locking DVI connector enhances connection stability, which is particularly valuable in professional settings where cable integrity is critical.
Broad Host Compatibility
Works with Mini DisplayPort sources including MacBooks, Surface Pro, desktops, laptops, and docks, supporting both Thunderbolt and standard mDP outputs.
- Thunderbolt 1 & 2 MacBooks
- Microsoft Surface Pro 1-6
- AMD/NVIDIA Workstation GPUs
- Intel NUC & Mini-ITX Systems
Plug-and-Play Operation
Requires no drivers or software, functioning seamlessly with Windows, Ubuntu, macOS, and other operating systems that support standard display protocols.
- Windows Compatible
- Ubuntu Linux Ready
- macOS Native Support
Deployment / Use Cases
The MDP2DVI3 adapter is ideal for scenarios where users need to connect modern Mini DisplayPort-equipped devices to DVI monitors, projectors, or other display peripherals. Common deployments include office workstations where employees use laptops with mDP outputs to drive external DVI monitors for enhanced productivity, or educational and presentation environments where projectors with DVI inputs are still prevalent.
In home office setups, this adapter enables users to repurpose older DVI monitors as secondary displays for multitasking, extending screen real estate without investing in new hardware. It also serves IT professionals and system integrators who require reliable adapters for configuring mixed-interface display arrays in conference rooms, digital signage installations, or temporary event setups.
Physical Profile
The adapter features a sleek black housing that blends with most electronics. Its compact dongle design includes a short integrated cable, minimizing desk clutter while providing enough flexibility for connection. The approximate weight of 0.93 ounces (26.50 grams) underscores its portability, and the construction complies with environmental standards including EU RoHS, REACH, and WEEE directives.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.93 oz (26.50 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 0.93 oz (26.50 g)
Highlights
- Converts Mini DisplayPort 1.2 to DVI-D single link for 1080p/1920x1200 video.
- Passive design requires no external power or software drivers.
- Supports EDID pass-through for automatic display configuration.
- Compatible with Thunderbolt 1/2 MacBooks, Surface Pro, desktops, laptops, and docks.
- Features a screw-locking DVI connector for secure cable attachment.
- Works with Windows, Ubuntu, macOS, and other OS without installation.
- Compact 5-inch attached cable ideal for travel and tight spaces.
- Black finish and lightweight construction (0.93 oz) for discreet use.
- Tested with DVI cables up to 25 feet for extended reach.
- Environmentally certified with EU RoHS, REACH, and WEEE compliance.
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MDP2DVI3 |
| Brand Name | StarTech.com |
| Product Name | Mini DisplayPort to DVI Adapter |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Adapter Type | DVI/Mini DisplayPort |
| Connector Type on First End | Mini DisplayPort Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male |
| Connector Type on Second End | DVI Digital Video - Female |
| Connector on Second End Details | 1 x 29-pin DVI-I Digital Video - Female |
| Maximum Resolution Supported | 1920 x 1200 |
| Features | Passive,Extended Display Identification Data (EDID) |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 0.93 oz (26.50 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
User Manual
FAQ
What is the maximum resolution supported by this adapter?
The StarTech.com MDP2DVI3 adapter supports a maximum resolution of 1920 x 1200, which includes full 1080p (1920x1080) video at 60Hz. This makes it suitable for connecting DVI displays or projectors that require single-link DVI-D digital signals for high-definition content.
Does this adapter require external power or software installation?
No, this is a passive adapter that does not need external power sources or software drivers. It operates purely through hardware conversion, offering plug-and-play functionality with operating systems like Windows, Ubuntu, and macOS for immediate use upon connection.
Which devices are compatible with this Mini DisplayPort to DVI adapter?
The adapter is compatible with Mini DisplayPort sources including Thunderbolt 1 and 2 MacBooks, MacBook Air, Mac Mini, Microsoft Surface Pro models 1 through 6, desktops with AMD FirePro or NVIDIA Quadro graphics, various laptops, mini-ITX computers, Intel NUC systems, and docking stations that feature mDP++ support.
What is EDID pass-through and why is it important?
EDID (Extended Display Identification Data) pass-through allows the adapter to communicate display capabilities between the source device and the connected monitor. This ensures automatic configuration of optimal resolution and refresh rates, reducing manual setup and preventing compatibility issues such as incorrect display modes or blank screens.
Can I use this adapter with a DVI cable that has screw locks?
Yes, the adapter features a DVI female connector that supports screw-locking DVI cables. This design helps secure the cable connection to prevent accidental disconnection, which is especially useful in environments where cables might be bumped or moved, ensuring reliable video transmission.
Is this adapter suitable for use with projectors or only monitors?
This adapter is suitable for both DVI monitors and projectors. It can connect Mini DisplayPort sources to any display device with a DVI input, making it versatile for office presentations, home theater setups, or educational environments where projectors are commonly used with DVI interfaces.
What resolution or display format is specified?
It features a display specification of 1920 x 1200, giving you clear visuals for work and media use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
