StarTech. com MDP2HDMI Mini DisplayPort to HDMI Adapter - Passive mDP 1. 2 to HDMI 1. 4 Converter - 1080p 60Hz - 5" Cable - Gold-Plated
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter converts Mini DisplayPort 1.2 digital signals to HDMI 1.4 output, supporting resolutions up to 1920x1200 (1080p) at 60Hz refresh rates. The 20-pin male Mini DisplayPort connector interfaces with mDP++ compatible sources, while the 19-pin female HDMI connector accepts standard HDMI cables for display connectivity.
The passive design eliminates the need for external power, relying on the host device's DisplayPort signal for conversion. Content protection is maintained through HDCP 1.4 and DPCP compliance, ensuring secure playback of protected media across the connection.
This section brings together practical product details such as Adapter Type, Connector Type on First End, Connector on First End Details, Color Family, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The MDP2HDMI adapter delivers reliable video conversion with several practical advantages for business and professional users. The gold-plated connectors resist corrosion and maintain signal quality over repeated connections, while the passive design ensures broad compatibility without configuration complexity.
Universal Compatibility
Works with Thunderbolt 1 & 2 MacBooks, Microsoft Surface Pro 1-6, AMD/NVIDIA workstation graphics, Intel NUC systems, and various docks without requiring specific drivers.
- Supports mDP++ sources
- Cross-platform OS compatibility
- Tested with 50ft HDMI cables
Enhanced Productivity
Enables multi-monitor setups by connecting HDMI displays to Mini DisplayPort laptops and compact systems, expanding screen real estate for multitasking and workflow efficiency.
- Add secondary displays
- Extend desktop workspace
- Connect to projectors/TVs
Deployment / Use Cases
This adapter serves multiple practical applications in business and educational environments. For mobile professionals, it enables presentation connectivity by linking laptops to conference room displays or projectors during meetings. The compact design fits easily in laptop bags for travel between office locations.
In workstation configurations, the adapter allows users to add secondary HDMI monitors to systems with limited Mini DisplayPort outputs, creating expanded desktop environments for financial analysis, software development, or creative workflows. Educational institutions can use these adapters to connect classroom computers to larger displays for instructional purposes.
Mobile Presentation Setup
Connect MacBook or Surface devices to HDMI-equipped projectors and displays for business presentations, training sessions, or collaborative meetings.
Workstation Expansion
Add additional HDMI monitors to Mini DisplayPort-equipped desktops, Intel NUC systems, or docking stations to create multi-screen productivity environments.
Physical Profile

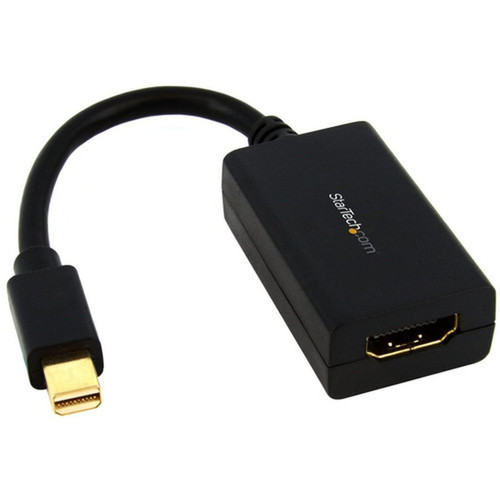

The adapter features a compact black housing with integrated 5-inch cable, measuring approximately 0.71 ounces (20 grams) for minimal bulk. The small form factor minimizes desk clutter when connected, while the lightweight construction reduces strain on laptop ports during mobile use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.71 oz (20 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 0.71 oz (20 g)
Highlights
- Converts Mini DisplayPort 1.2 to HDMI 1.4 for 1080p 60Hz video
- Supports 7.1 channel digital audio with HDCP 1.4 content protection
- Passive design requires no external power or software drivers
- Gold-plated connectors ensure reliable signal transmission
- Compatible with macOS, Windows, and Ubuntu operating systems
- Works with Thunderbolt MacBooks, Surface Pro, and workstation graphics
- Compact 5-inch attached cable for easy connection management
- 3-year limited warranty with RoHS and REACH environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MDP2HDMI |
| Brand Name | StarTech.com |
| Product Model | MDP2HDMI |
| Product Name | Mini DisplayPort to HDMI Video Adapter Converter |
| Packaged Quantity | 1 Each |
| Product Type | Video Adapter |
| Technical Information | |
| Adapter Type | HDMI/Mini DisplayPort |
| Connector Type on First End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 1.4 Digital Audio/Video - Female |
| Connector on Second End Details | 1 x 19-pin HDMI 1.4 Digital Audio/Video - Female |
| Connector Plating | Gold |
| Features | Passive,HDCP 1.4,DPCP |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 0.71 oz (20 g) |
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
Does this adapter require external power or software installation?
No, this is a passive adapter that requires no external power source or software installation. It operates as a plug-and-play device, drawing power from the host Mini DisplayPort connection and working immediately with compatible operating systems including macOS, Windows, and Ubuntu.
What devices are compatible with this Mini DisplayPort to HDMI adapter?
The adapter works with mDP++ compatible sources including Thunderbolt 1 and 2 MacBooks, MacBook Air, Mac Mini, Microsoft Surface Pro 1-6, desktops with AMD FirePro or NVIDIA Quadro graphics, laptops with Mini DisplayPort, mini ITX computers, Intel NUC systems, and various docking stations.
What audio capabilities does this adapter provide?
The adapter supports 7.1 channel digital audio transmission alongside video signals. This enables surround sound audio playback through HDMI-connected displays, soundbars, or audio systems when the source device provides multi-channel audio output.
How long is the attached cable and can I use longer HDMI cables?
The adapter includes a 5-inch (13 cm) attached cable. You can connect standard HDMI cables to the female HDMI port, with testing confirming compatibility with HDMI cables up to 50 feet (15 meters) in length while maintaining signal quality.
What is the warranty and environmental compliance for this product?
StarTech.com provides a 3-year limited warranty for this adapter. The product meets EU RoHS environmental standards and complies with Restriction of Hazardous Substances (RoHS) 2, REACH chemical regulations, and WEEE electronic waste directives.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
Mini DisplayPort 1.2 Digital Audio/Video - Male.
Does the display support VESA mounting or adjustment features?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
