Product Features
Technical Overview

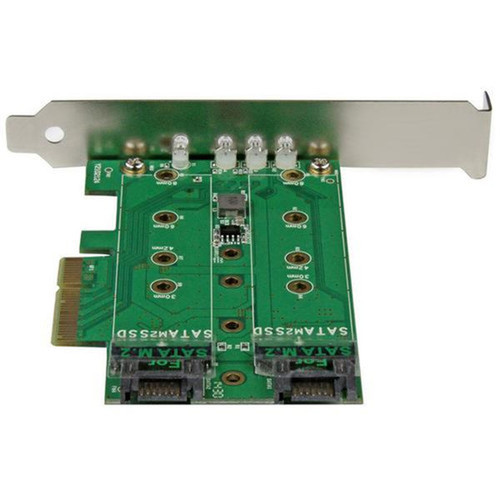

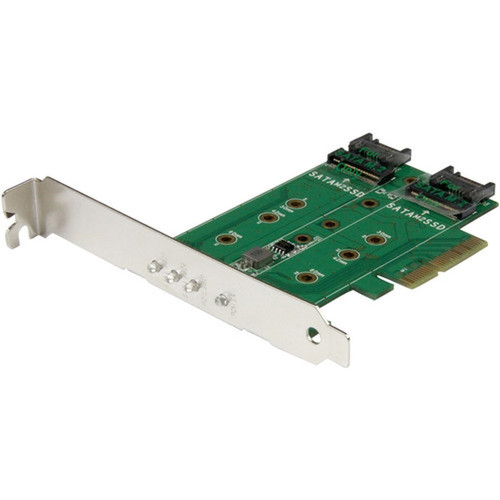

This M.2 adapter card provides dedicated PCIe 3.0 x4 lanes to the NVMe slot, delivering up to 40 Gbps bandwidth for high-speed NVMe SSDs. The two SATA III M.2 ports operate at 6 Gbps each, supporting standard M.2 SATA SSDs commonly found in laptops and desktops. The card requires a PCIe x4 or larger slot for full functionality and automatically detects drive types without requiring additional drivers in most modern operating systems.
The adapter supports multiple M.2 form factors including 2280, 2260, 2242, and 2230, accommodating drives from various manufacturers. Electrical isolation between ports ensures stable operation when mixing drive types and capacities. The steel construction provides durability while maintaining electromagnetic compatibility with system components.
Relevant factors for this section include Color Family, Product Color, Product Material, Package Contents. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This adapter delivers exceptional flexibility by supporting both NVMe and SATA M.2 drives on a single card, eliminating the need for multiple adapters in storage-dense systems. The inclusion of a low-profile bracket makes it suitable for small form factor builds and rack-mounted workstations where space is limited.
Mixed Interface Support
Run one high-performance NVMe drive alongside two SATA SSDs, optimizing for both speed and capacity in a single PCIe slot.
- NVMe for OS and applications
- SATA for data storage
- Independent channel operation
Comprehensive Mounting Solution
Includes all necessary hardware for secure drive installation across supported form factors.
- Standoffs for proper drive spacing
- Screws for multiple lengths
- Screwdriver included
Deployment / Use Cases
The PEXM2SAT32N1 adapter excels in professional environments where storage flexibility and data accessibility are critical. IT departments can use it to upgrade older systems with modern M.2 storage, create dedicated caching arrays, or build multi-drive storage pools without consuming multiple PCIe slots.
Data recovery specialists benefit from the adapter's ability to connect laptop M.2 drives to desktop systems for forensic analysis or data extraction. The pass-through SATA port enables connection of an additional 2.5" or 3.5" drive for bulk data transfers or backup operations during recovery procedures.
System Upgrades
Add M.2 storage to systems lacking native M.2 slots, extending the life of existing hardware with modern SSD performance.
Data Recovery Workstation
Connect failed laptop M.2 drives to a functional desktop system for data retrieval and drive diagnostics.
Physical Profile
The adapter card measures 4.70" in length and height with a slim 0.80" profile, fitting standard PCIe slots without interfering with adjacent components. The green steel construction provides structural rigidity while the low-profile bracket option reduces the installed height to 2.536" for compact chassis. At just 2.29 ounces, the card adds minimal weight to the system while the included mounting hardware ensures drives remain securely attached during transport or vibration.
- Width
- 0.80" (20.32 mm)
- Height
- 4.70" (119.38 mm)
- Weight
- 2.29 oz (65 g)
- Length
- 4.70" (119.38 mm)
What's in the Box
The adapter ships with all necessary components for installation and operation across various system configurations.
Highlights
- Supports up to three M.2 SSDs simultaneously with mixed NVMe and SATA interfaces
- PCIe 3.0 x4 interface delivers 40 Gbps bandwidth for NVMe drive performance
- Includes both standard and low-profile brackets for flexible chassis compatibility
- Supports multiple M.2 form factors: 2280, 2260, 2242, and 2230
- Power and activity LED indicators for drive status monitoring
- Pass-through SATA port enables additional drive connections for data transfer
- TAA compliant for government and commercial procurement requirements
- 2-year limited warranty with lifetime technical support
- Steel construction with green finish for durability and identification
- Comprehensive mounting kit included for secure drive installation
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEXM2SAT32N1 |
| Brand Name | StarTech.com |
| Product Name | 3-port M.2 NGFF SSD Adapter Card |
| Packaged Quantity | 1 Each |
| Product Type | M.2 NVMe to PCIe Adapter |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Green |
| Product Material | Steel |
| Height | 4.70" (119.38 mm) |
| Width | 0.80" (20.32 mm) |
| Length | 4.70" (119.38 mm) |
| Weight (Approximate) | 2.29 oz (65 g) |
| Miscellaneous | |
| Package Contents | 3-port M.2 NGFF SSD Adapter Card 1 x Low-Profile Bracket 3 x M.2 Mounting Screws 3 x M.2 Mounting Standoffs 3 x M.2 Mounting Nuts 1 x Screw Driver 1 x Quick Start Guide |
| Certifications & Standards | CE FCC |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of M.2 drives does this adapter support?
The adapter supports both NVMe PCIe and SATA III M.2 solid-state drives. It features one NVMe PCIe slot that utilizes PCIe 3.0 x4 lanes and two SATA III M.2 slots. This mixed interface design allows you to combine high-performance NVMe drives with cost-effective SATA SSDs in a single adapter card, providing flexibility for different storage needs within the same system.
What PCIe slot is required for this adapter?
The adapter requires a PCIe x4 slot or larger for proper operation. It will physically fit in any PCIe x4, x8, or x16 slot, but requires at least four PCIe lanes to deliver full bandwidth to the NVMe port. The card is backward compatible with PCIe 2.0 slots but will operate at reduced speeds. For optimal performance, install it in a PCIe 3.0 x4 or higher slot on your motherboard.
Does this adapter support M.2 drives of different lengths?
Yes, the adapter supports multiple M.2 form factors including 2280 (80mm), 2260 (60mm), 2242 (42mm), and 2230 (30mm) drives. The included mounting kit provides standoffs, screws, and nuts for securing drives of these various lengths. The adapter's mounting holes are spaced to accommodate all four standard sizes, making it compatible with most consumer and enterprise M.2 SSDs available on the market.
Can I use this adapter for data recovery from laptop drives?
Absolutely. This adapter is particularly useful for data recovery scenarios where a laptop with a functioning M.2 drive has failed. By installing the laptop's M.2 drive into the adapter and connecting it to a working desktop or workstation, you can access the drive's contents for data retrieval. The pass-through SATA port also allows connection of an additional drive for transferring recovered data or creating backups during the recovery process.
What comes in the package with this adapter?
The package includes the 3-port M.2 NGFF SSD adapter card, one low-profile bracket for small form factor systems, three M.2 mounting screws, three mounting standoffs, three mounting nuts, a screwdriver for installation, and a quick start guide. This comprehensive kit provides everything needed to install M.2 drives of various lengths and mount the adapter in both standard and low-profile chassis configurations.
Is this adapter compatible with small form factor systems?
Yes, the adapter includes a low-profile bracket that reduces the installed height to 2.536 inches, making it suitable for small form factor systems, compact workstations, and rack-mounted servers. The standard bracket is also included for traditional desktop cases. The adapter's slim 0.80-inch width ensures it won't interfere with adjacent PCIe slots or components in tightly packed systems.
