StarTech.com POEEXT1GAT Gigabit PoE+ Extender - 802.3at/af - 24W - 100m - 330 ft - Wall Mountable - Surge/ESD Protection
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PoE extender operates with a Gigabit Ethernet input and provides a Gigabit PoE+ output, maintaining full network speed while extending power. It accepts an IEEE 802.3at 30W input and converts it to a 24W output compliant with both 802.3at and 802.3af standards, with an output voltage range of 52V to 56V DC. The unit includes automatic detection for connected powered devices to prevent damage from incorrect installation.
Built with durability in mind, it incorporates 2kV ESD and surge protection directly into its design. The extender is certified to key IEEE networking standards including 802.3, 802.3u, and 802.3ab, ensuring broad compatibility and reliable performance in diverse network infrastructures.
Relevant factors for this section include Protection Type, Minimum Output Voltage, Maximum Output Voltage, Maximum Output Power. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The POEEXT1GAT extender simplifies network expansion by eliminating distance limitations for PoE devices, reducing infrastructure costs associated with additional power outlets or midspan injectors. Its robust construction and protective features ensure long-term operation in demanding settings.
Extended Reach and Flexibility

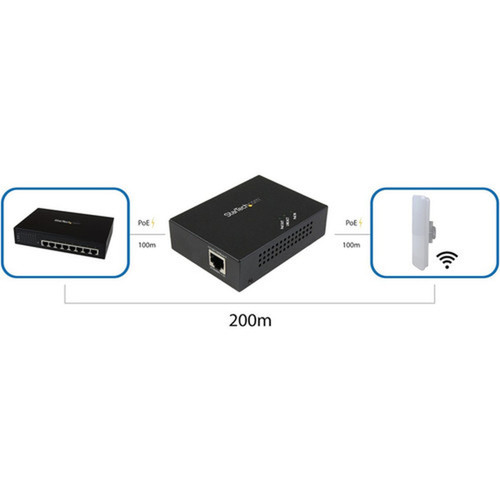

Each unit extends PoE power and data by 100 meters. Up to four extenders can be daisy-chained for a total reach of 500 meters, providing exceptional flexibility for large-scale deployments like warehouses, campuses, or outdoor installations.
- 100 m per unit extension
- 500 m maximum daisy-chained range
- No external power required
Robust Protection and Reliability
Integrated 2kV surge and ESD protection shields both the extender and connected devices from electrical transients, enhancing network uptime and equipment longevity in environments prone to power fluctuations.
- 2kV surge/ESD protection
- Rugged metal housing
- Automatic PD detection
Simplified Deployment
With true plug-and-play functionality, the extender requires no software, configuration, or external power adapter. Its compact, wall-mountable design allows for discreet installation in tight spaces, closets, or directly near endpoint devices.
- Zero-configuration setup
- Wall-mountable form factor
- Compact dimensions: 3.70" x 2.72" x 0.98"
Deployment / Use Cases
This extender is ideal for scenarios where network equipment must be placed beyond the standard 100-meter Ethernet limit or where local power outlets are unavailable. It is commonly deployed to support wireless networks, security systems, and digital signage in expansive or architecturally challenging environments.
In retail or office settings, it enables the placement of Wi-Fi access points in optimal locations for coverage without being constrained by power availability. For surveillance, it allows IP cameras to be installed at perimeter fences, parking lots, or building exteriors where running AC power would be costly or impractical.
Wireless Network Expansion
Extend PoE to Wi-Fi access points or mesh nodes in large buildings, warehouses, or outdoor areas to eliminate coverage dead zones and maintain strong signal strength throughout the facility.
Security and Surveillance
Power IP cameras, intercoms, or access control systems over long distances, enabling comprehensive monitoring of perimeters, parking areas, or remote structures without additional electrical work.
Physical Profile

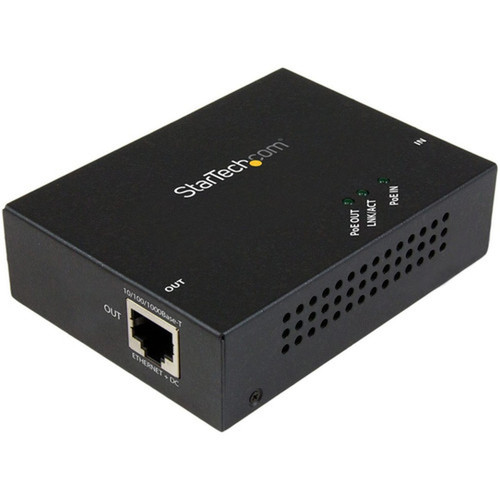

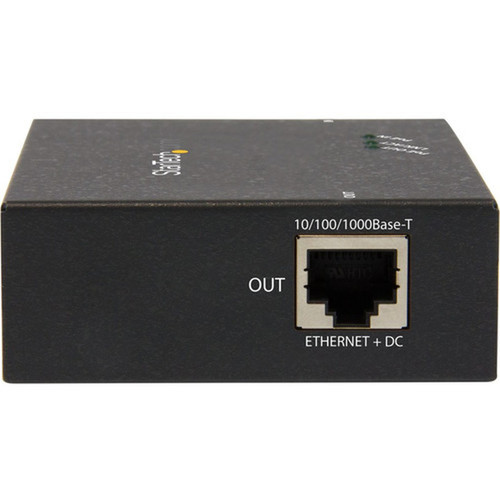

The extender features a compact, all-black metal enclosure measuring 3.70 inches in length, 2.72 inches in width, and 0.98 inches in height (94 mm x 69 mm x 25 mm), with a weight of approximately 6.81 ounces (193 g). Its wall-mountable design includes integrated mounting points for secure installation in network closets, on walls, or alongside other infrastructure, ensuring a tidy and professional appearance while maximizing space efficiency.
- Width
- 2.72" (69 mm)
- Height
- 0.98" (25 mm)
- Weight
- 6.81 oz (193 g)
- Length
- 3.70" (94 mm)
What's in the Box
The package includes everything needed for immediate deployment of the extender.
Highlights
- Extends PoE power and Gigabit data up to 100 m (330 ft) per unit
- Supports IEEE 802.3at (PoE+) and 802.3af standards with 24W output
- Daisy-chain up to four units for a total range of 500 m (1640 ft)
- Integrated 2kV surge and ESD protection for enhanced reliability
- Plug-and-play operation with no external power adapter required
- Compact, wall-mountable metal housing for durable installation
- Automatic detection of connected PDs to prevent installation errors
- Compatible with Wi-Fi access points, IP phones, cameras, and kiosks
- Certified to IEEE 802.3, 802.3u, and 802.3ab standards
- Backed by a 2-year limited warranty and TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | POEEXT1GAT |
| Brand Name | StarTech.com |
| Product Name | 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft) |
| Packaged Quantity | 1 Each |
| Product Type | PoE Extender |
| Technical Information | |
| Protection Type | Surge Protection,ESD Protection |
| Power Description | |
| Minimum Output Voltage | 52 V DC |
| Maximum Output Voltage | 56 V DC |
| Maximum Output Power | 24 W |
| Interfaces/Ports | |
| Input Ports | 1 x Gigabit Ethernet |
| Output Ports | 1 x Gigabit PoE+ |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Wall Mountable |
| Height | 0.98" (25 mm) |
| Width | 2.72" (69 mm) |
| Length | 3.70" (94 mm) |
| Weight (Approximate) | 6.81 oz (193 g) |
| Miscellaneous | |
| Package Contents | 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft) 1 x Instruction Manual |
| Compatibility | Compatible Products: Wi-Fi Access Points IP Phones Surveillance Cameras Kiosks |
| Certifications & Standards | IEEE 802.3af IEEE 802.3at IEEE 802.3 IEEE 802.3u IEEE 802.3ab |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum distance I can extend PoE using this extender?
Each POEEXT1GAT extender adds 100 meters (330 feet) of reach for both power and data. You can connect up to four units in a daisy chain for a total extension of 500 meters (1640 feet) from the original PoE source, though power output decreases slightly with each additional unit in the chain.
Does this extender support both PoE and PoE+ standards?
Yes, it fully supports both IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards. It accepts a 30W PoE+ input and delivers a 24W output that is compatible with devices requiring either standard, ensuring broad interoperability with existing network equipment.
Can I use this extender outdoors or in harsh environments?
While the extender has a rugged metal housing and surge/ESD protection, it is not rated as waterproof or for direct outdoor exposure. It is suitable for indoor use or protected outdoor installations like under eaves or in enclosures where it is shielded from direct moisture and extreme weather conditions.
What types of devices are compatible with this PoE extender?
It is designed to power a wide range of PoE-powered devices (PDs), including wireless access points, IP phones, surveillance cameras, and digital kiosks. The automatic detection feature ensures compatibility and safe operation with any IEEE 802.3af/at compliant device without manual configuration.
Is an external power supply required for the extender to function?
No external power adapter is needed. The extender operates entirely from the PoE power it receives from the upstream switch or injector, making it a true plug-and-play device. This simplifies installation and reduces clutter, as no additional electrical outlets are necessary at the extension point.
What protection features does the extender include for connected equipment?
The extender incorporates 2kV surge protection and ESD (electrostatic discharge) protection to safeguard both itself and any connected PoE devices from voltage spikes and transient electrical events. This enhances reliability and longevity, particularly in environments with unstable power or where equipment is susceptible to static discharge.
