StarTech.com POEINJ1G 1-Port Gigabit PoE+ Injector - 30W 802.3at/af - Wall-Mountable - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This PoE injector operates with input voltages of 120V AC or 230V AC, converting to a 48V DC output with maximum current of 750mA. It features one 10/100/1000Base-T input port for connecting to your network switch or router, and one 10/100/1000Base-T output port for connecting to the powered device.
The injector complies with multiple IEEE standards including 802.3ab for Gigabit Ethernet, 802.3u for Fast Ethernet, and 802.3 for 10Base-T connectivity, ensuring broad compatibility with existing network infrastructure. Environmental certifications include CE, FCC, and RoHS compliance for reduced hazardous substances.
Relevant factors for this section include Input Voltage, Maximum Output Voltage, Maximum Input Current, Input Ports. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This PoE injector simplifies network deployment by eliminating the need for separate power cables and outlets near powered devices. Its compact design and wall-mount capability allow for discreet installation in tight spaces, while the universal power adapter with multiple regional cords supports deployment in various geographical locations.
Simplified Installation
Delivers both data and power over a single Ethernet cable, reducing cable clutter and eliminating the need for electrical outlets at device locations.
- Single-cable solution for data and power
- Reduces installation complexity
- Minimizes cable management requirements
Universal Compatibility
Supports both PoE and PoE+ standards for compatibility with a wide range of network devices, from basic IP phones to power-hungry access points.
- Backward compatible with 802.3af devices
- Supports high-power 802.3at devices
- Works with Gigabit, Fast Ethernet, and 10Base-T networks
Deployment / Use Cases
The POEINJ1G is ideal for extending PoE capabilities to network switches that lack built-in PoE functionality or for adding power to specific devices in environments where running separate power lines is impractical. Its compact form factor makes it suitable for installation in network closets, ceiling spaces, or wall-mounted near the target device.
Common deployment scenarios include powering wireless access points in offices or warehouses, connecting IP security cameras in surveillance systems, enabling VoIP phones in conference rooms, and supporting IoT devices in smart building applications. The included universal power adapter with NA, UK, and EU cords facilitates international deployments without requiring separate power adapters.
Wireless Network Expansion
Power wireless access points in locations without convenient electrical outlets, enabling optimal placement for coverage without power constraints.
Security System Integration
Provide power to IP cameras in surveillance installations where running separate power cables would be costly or disruptive to building infrastructure.
Physical Profile

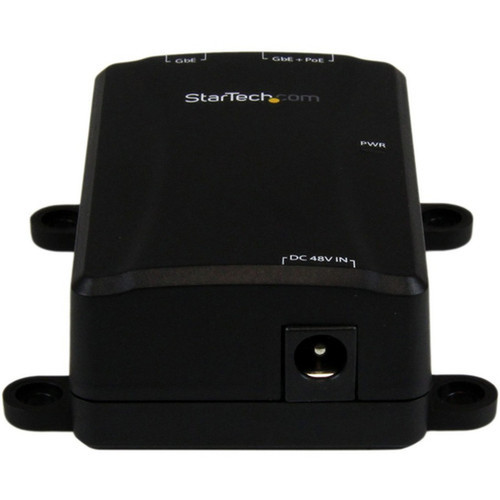

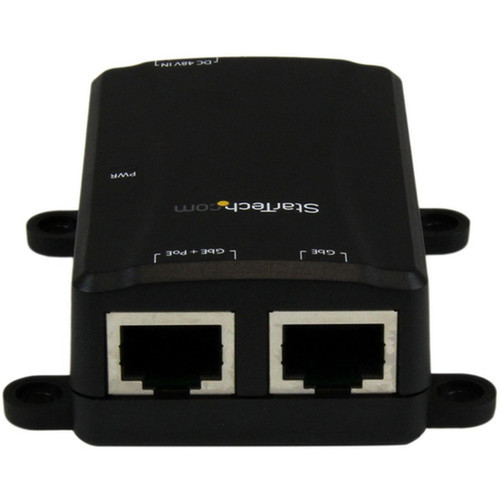

Measuring just 2.80" × 2.50" × 1" (71.12 × 63.50 × 25.40 mm) and weighing approximately 1.80 oz (51.03 g), this injector features a compact black enclosure designed for discreet installation. The wall-mountable design includes four mounting screws for secure attachment to walls, ceilings, or inside network cabinets. The small footprint minimizes space requirements while the black finish blends with most networking equipment.
- Width
- 2.50" (63.50 mm)
- Height
- 1" (25.40 mm)
- Weight
- 1.80 oz (51.03 g)
- Length
- 2.80" (71.12 mm)
What's in the Box
The package includes everything needed for immediate deployment of the PoE injector in various installation scenarios.
Highlights
- Delivers up to 30W power over Ethernet with IEEE 802.3at PoE+ compliance
- Supports Gigabit Ethernet (10/100/1000Base-T) on both input and output ports
- Compact wall-mountable design for flexible installation in tight spaces
- Includes universal power adapter with NA, UK, and EU power cords for international use
- Backward compatible with IEEE 802.3af PoE standard for broader device support
- RoHS compliant with reduced hazardous substances for environmental responsibility
- 2-year limited warranty for reliable long-term operation
- CE and FCC certified for regulatory compliance in multiple regions
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | POEINJ1G |
| Brand Name | StarTech.com |
| Product Name | 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-Mountable |
| Packaged Quantity | 1 Each |
| Product Type | PoE Injector |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Output Voltage | 48 V DC |
| Maximum Input Current | 750 mA |
| Maximum Output Current | 750 mA |
| Maximum Output Power | 30 W |
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mount Type | Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 2.50" (63.50 mm) |
| Length | 2.80" (71.12 mm) |
| Weight (Approximate) | 1.80 oz (51.03 g) |
| Miscellaneous | |
| Package Contents | POE+ Injector 4 x Mounting Screws 1 x Universal Power Adapter 3 x Power Cords (NA/UK/EU) 1 x Instruction Manual |
| Certifications & Standards | IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T CE FCC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum power output of this PoE injector?
The StarTech.com POEINJ1G provides a maximum output power of 30 watts at 48 volts DC, making it compliant with the IEEE 802.3at PoE+ standard. This power level supports most power-hungry devices like wireless access points, pan-tilt-zoom cameras, and some small network switches that require higher power delivery than basic PoE can provide.
Does this injector support Gigabit Ethernet speeds?
Yes, this injector maintains full Gigabit Ethernet (1000Base-T) throughput on both its input and output ports while delivering power. It's also backward compatible with Fast Ethernet (100Base-TX) and 10Base-T networks, ensuring it works with virtually any Ethernet infrastructure without compromising data transfer speeds.
What PoE standards does this injector support?
This injector supports both IEEE 802.3at PoE+ and IEEE 802.3af PoE standards. The 802.3at PoE+ capability allows it to deliver up to 30W for higher-power devices, while maintaining backward compatibility with 802.3af devices that require up to 15.4W. This dual-standard support ensures compatibility with a wide range of powered network equipment.
Can this PoE injector be wall-mounted?
Yes, the injector features a wall-mountable design with four mounting screws included in the package. The compact dimensions of 2.80" × 2.50" × 1" allow for installation in tight spaces such as network closets, ceiling voids, or directly adjacent to the powered device. The black finish provides a discreet appearance that blends with most networking environments.
What power cords are included with the injector?
The package includes three regional power cords for North America (NA), United Kingdom (UK), and European Union (EU) connections, along with a universal power adapter that accepts all three cord types. This comprehensive inclusion eliminates the need for separate power adapters when deploying the injector in different geographical locations or when relocating equipment between regions.
What devices can be powered by this PoE injector?
This injector can power any IEEE 802.3af or 802.3at compliant device, including wireless access points, IP cameras, VoIP phones, network switches, and various IoT devices. The 30W output capacity supports most business-grade access points, pan-tilt-zoom security cameras, and small network switches that require PoE+ level power delivery for full functionality.
