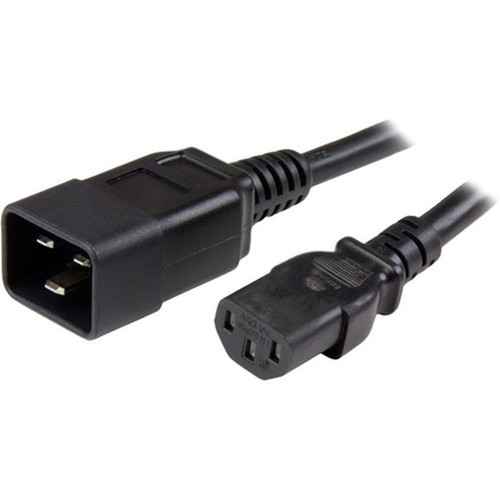

StarTech.com PXTC13C20143 Heavy Duty 14 AWG Power Extension Cord - 3ft - 1m IEC C13 to C20 - 15A 125V - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This power extension cord utilizes IEC 60320 C13 female and C20 male connectors, creating a standardized interface for extending power connections between equipment and power distribution units. The 14 AWG copper conductors provide optimal current carrying capacity with minimal resistance, while the SJT PVC jacket offers flexibility and protection in indoor environments.
The cable operates within a temperature range of 37°F to 140°F (3°C to 60°C) and features a 0.36-inch outer diameter for manageable routing. Each connector incorporates fully molded strain relief to prevent cable damage at connection points, extending the cable's service life in frequently accessed installations.
Relevant factors for this section include First End Connector Type, First End Connector Detail, Second End Connector Type, Voltage Rating. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This heavy-duty extension cord combines industrial-grade construction with IT-focused design to deliver superior performance in business environments. The robust 14 AWG wiring ensures minimal power loss over the 3-foot length, while the standardized IEC connectors guarantee compatibility with a wide range of enterprise equipment.
Professional-Grade Safety
UL 62 and UL 817 certifications confirm compliance with North American safety standards, while the VW-1 fire rating provides additional protection in demanding installations.
- UL Listed for safety compliance
- VW-1 fire resistant construction
- Fully molded strain relief
Durability & Reliability
Built with 100% copper conductors and reinforced connectors, this cable withstands repeated connection cycles and maintains performance in temperature-controlled data centers and office environments.
- 14 AWG heavy gauge wiring
- Temperature range: 37°F to 140°F
- SJT PVC jacket for flexibility
Deployment / Use Cases
This IEC C13 to C20 extension cord serves multiple roles in business IT infrastructure, from basic workstation setups to complex server installations. Its 3-foot length provides just enough reach to accommodate equipment placement flexibility without creating cable management challenges.
In server room deployments, the cable connects rack-mounted servers to PDUs when standard power cords fall short. For workstation configurations, it extends monitor and computer power connections to reach distant outlets. The heavy 14 AWG construction makes it particularly suitable for equipment drawing higher currents, such as gaming PCs, workstations with multiple peripherals, or small business servers.
Server Room Applications
Extend connections between servers and PDUs in rack-mounted environments where equipment depth varies or outlets are spaced for optimal airflow management.
Workstation & Office Setup
Provide additional reach for desktop computers, monitors, and printers when wall outlets are inconveniently located relative to equipment placement.
Physical Profile
The black SJT PVC jacket provides a professional appearance that blends with most office and data center environments. At 3 feet (0.91 meters) in length and weighing just 8 ounces (226.80 grams), this cable offers sufficient extension without creating excessive cable bulk. The 0.36-inch outer diameter allows for clean routing through cable management systems, while the standardized IEC connectors ensure secure mating with compatible equipment.
- Weight
- 8 oz (226.80 g)
- Length
- 3 ft (0.91 m)
Highlights
- Heavy duty 14 AWG power extension cord with IEC C13 to C20 connectors
- Rated for 15A 125V operation with 100% copper conductors
- 3-foot (0.91m) length provides flexible equipment placement
- UL listed (UL62 & UL817) with VW-1 fire rating for safety
- Fully molded strain relief protects connection points
- Compatible with servers, PDUs, desktop computers, monitors, and printers
- Black SJT PVC jacket for professional appearance
- Lifetime warranty with 24/5 multilingual technical support
- RoHS and WEEE compliant for environmental responsibility
- Available in multiple lengths for different deployment needs
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PXTC13C20143 |
| Brand Name | StarTech.com |
| Product Model | PXTC13C20143 |
| Product Name | 3 ft Heavy Duty 14 AWG Computer Power Cord - C13 to C20 |
| Packaged Quantity | 1 Each |
| Product Type | Standard Power Cord |
| Technical Information | |
| First End Connector Type | IEC 60320 C13 |
| First End Connector Detail | 1 x 3-pin IEC 60320 C13 Female |
| Second End Connector Type | IEC 60320 C20 |
| Second End Connector Detail | 1 x 3-pin IEC 60320 C20 Male |
| Device Supported | Desktop Computer,Server,PDU,Monitor,Printer |
| Power Description | |
| Voltage Rating | 125 V AC |
| Current Rating | 15 A |
| Physical Characteristics | |
| Cord Length | 3 ft (0.91 m) |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What devices are compatible with this IEC C13 to C20 extension cord?
This extension cord connects devices with IEC C13 power inlets (like most desktop computers, monitors, and printers) to power sources with IEC C20 outlets (commonly found on PDUs and some servers). It's specifically designed for servers, PDUs, desktop computers, monitors, and printers in business IT environments.
What is the maximum current and voltage rating for this power cord?
The StarTech.com PXTC13C20143 is rated for 15 amps at 125 volts AC. This 14 AWG heavy-duty construction can safely handle up to 1,875 watts of power, making it suitable for equipment with higher power demands like workstations and servers.
How does the 14 AWG gauge benefit this extension cord?
The 14 AWG (American Wire Gauge) represents a thicker conductor than standard 16 or 18 AWG power cords. This heavier gauge reduces electrical resistance, minimizes voltage drop over the 3-foot length, and allows the cable to safely carry the full 15A rating without overheating, ensuring stable power delivery to connected equipment.
What safety certifications does this power extension cord have?
This cable is UL listed under standards UL62 (for flexible cord) and UL817 (for cord sets and power-supply cords). It also carries a VW-1 vertical wire flame test rating, indicating resistance to flame propagation. These certifications ensure the cord meets North American safety requirements for electrical components.
What is included with the StarTech.com PXTC13C20143 power cord?
The product ships as a single extension cord with IEC C13 female and IEC C20 male connectors. The package includes the 3-foot heavy-duty cable itself, with no additional accessories or adapters included. Documentation is available through the manufacturer's brochure link provided with the product.
What warranty and support comes with this extension cord?
StarTech.com backs this power extension cord with a lifetime limited warranty, covering defects in materials and workmanship for the product's usable life. Additionally, purchasers receive free lifetime 24/5 multilingual technical assistance, providing support during business hours across multiple time zones.
