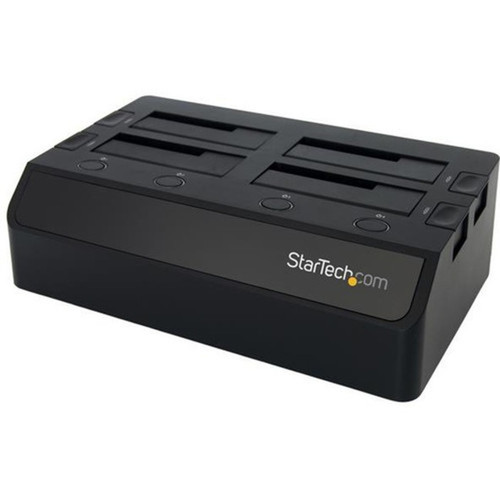

StarTech.com SDOCK4U33 4-Bay USB 3.0 to SATA Hard Drive Docking Station - 2.5/3.5" SATA III (6Gbps) SSD/HDD Dock with Top-Loading Design
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for maximum compatibility and performance, the SDOCK4U33 supports the complete SATA revision spectrum from SATA I (1.5Gbps) through SATA III (6Gbps), ensuring backward compatibility with older drives while maximizing throughput with modern SSDs. The USB 3.0 host interface delivers up to 5Gbps theoretical bandwidth, with UASP (USB Attached SCSI Protocol) support reducing CPU overhead and improving transfer speeds compared to standard USB mass storage protocols.
Each of the four drive bays features independent SATA/600 controllers that maintain separate data paths, preventing performance bottlenecks when accessing multiple drives simultaneously. The dock's intelligent power management supplies adequate current to both 2.5" drives (typically 5V) and 3.5" drives (typically 12V) without manual switching, automatically detecting drive requirements through the SATA power connector interface.
Relevant factors for this section include Number of Hard Drives Supported, Number of Solid State Drive Supported, Controller Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The quad-bay design represents a significant productivity advantage over single-bay docks, allowing professionals to work with multiple drives simultaneously for comparison, cloning, or batch operations. The top-loading mechanical design with individual drive doors provides both physical protection and clear visual identification of which bays are occupied, while maintaining a compact footprint that conserves desk space.
Enhanced Cooling System
Dual 40mm cooling fans actively ventilate the drive chamber, maintaining optimal operating temperatures during extended read/write sessions. This thermal management extends drive lifespan and prevents thermal throttling that can slow data transfer rates, particularly important when working with multiple high-performance SSDs simultaneously.
Universal Drive Compatibility
The dock accommodates both 2.5" and 3.5" form factors without adapters or brackets, supporting everything from laptop hard drives to enterprise-class SSDs. This versatility makes it ideal for IT departments managing mixed drive inventories or data recovery services handling diverse client media.
Professional Build Quality
Constructed with durable materials and backed by a 2-year warranty with lifetime technical support, the SDOCK4U33 meets the reliability demands of commercial and institutional environments. The dock complies with EU RoHS, REACH, and WEEE environmental standards, reflecting StarTech.com's commitment to responsible manufacturing practices.
Deployment / Use Cases
IT departments and managed service providers deploy the SDOCK4U33 for rapid drive imaging and deployment across multiple workstations. The simultaneous four-drive capability allows technicians to clone master images to multiple destination drives in parallel, dramatically reducing setup time for new computer deployments or standardized workstation refreshes.
Data recovery specialists utilize the dock's independent bay architecture to read multiple client drives concurrently, comparing directory structures or recovering files from several sources simultaneously. Media production teams employ the SDOCK4U33 for transferring large video files between drives or creating redundant backups of critical footage during field operations. The dock also serves forensic investigators who need to create bit-for-bit copies of evidence drives while maintaining chain-of-custody through isolated bay access.
Drive Testing & Diagnostics
Run extended SMART tests, surface scans, or performance benchmarks on up to four drives simultaneously, identifying failing drives before deployment or diagnosing performance issues in existing storage arrays.
Archival & Backup Rotation
Maintain a rotating set of backup drives for offsite storage, with the dock enabling quick verification of backup integrity before drives leave the premises and facilitating rapid restoration when retrieving archived data.
Physical Profile
The SDOCK4U33 measures 11.20" wide × 6.70" deep × 3.30" high (284.48 × 170.18 × 83.82 mm), with a weight of approximately 2.20 lb (1000 g) including internal components. This compact footprint fits comfortably on most desks or workbenches while providing stable support for four drives during operation. The black plastic enclosure features a textured finish that resists fingerprints and minor abrasions, maintaining a professional appearance in office environments. The top-loading orientation places drive connectors at the optimal angle for easy insertion and removal, with drive doors that protect unused bays from dust accumulation.
- Width
- 6.70" (170.18 mm)
- Depth
- 11.20" (284.48 mm)
- Height
- 3.30" (83.82 mm)
- Weight
- 2.20 lb (1000 g)
What's in the Box
The package includes all components necessary for immediate operation with a wide range of computing environments.
Highlights
- Simultaneously supports four 2.5" or 3.5" SATA HDDs or SSDs
- USB 3.0 Type B host interface with UASP support for improved performance
- Top-loading design with individual drive doors for easy access
- Backward compatible with SATA I, II, and III drives (1.5/3.0/6.0 Gbps)
- Dual 40mm cooling fans maintain optimal drive temperatures
- Universal power adapter supports NA, EU, UK, and AUS electrical standards
- Hot-swap capable for drive changes without powering down the dock
- 2-year warranty with lifetime 24/5 multilingual technical support
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SDOCK4U33 |
| Brand Name | StarTech.com |
| Product Name | USB 3.0 4-Bay 2.5/3.5" SATA SSD/HDD Dock |
| Packaged Quantity | 1 Each |
| Product Type | Drive Dock |
| Technical Information | |
| Number of Hard Drives Supported | 4 |
| Number of Solid State Drive Supported | 4 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 2.5"/3.5" Bays | 4 |
| Network & Communication | |
| Wireless LAN | No |
| UASP Support | Yes |
| Interfaces/Ports | |
| Drive Interface | SATA/600 |
| Host Interface | USB 3.0 Type B |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic |
| Cooling Fan | Yes |
| Form Factor | External |
| Height | 3.30" (83.82 mm) |
| Width | 6.70" (170.18 mm) |
| Depth | 11.20" (284.48 mm) |
| Weight (Approximate) | 2.20 lb (1000 g) |
| Miscellaneous | |
| Package Contents | USB 3.0 4-Bay 2.5/3.5" SATA SSD/HDD Dock 1 x USB 3.0 Cable 1 x Universal Power Adapter (NA/EU/UK/AUS) 1 x Instruction Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | This Quad-bay Hard Drive Dock Is Backed For 2 Years, Including Free Lifetime 24/5 Multilingual Technical Assistance |
User Manual
FAQ
How many drives can I use simultaneously with this docking station?
The SDOCK4U33 supports up to four drives operating simultaneously across its four independent bays. Each bay contains its own SATA/600 controller with dedicated power regulation, allowing you to read from or write to all four drives at the same time without performance degradation. This simultaneous access capability is ideal for comparing drive contents, cloning multiple drives in parallel, or running diagnostics on several drives concurrently.
What types of drives are compatible with this USB dock?
The dock is compatible with both 2.5-inch and 3.5-inch SATA hard disk drives (HDDs) and solid-state drives (SSDs) that use standard SATA data and power connectors. It supports the complete SATA specification from SATA I (1.5Gbps) through SATA III (6Gbps), ensuring compatibility with drives manufactured over the past 15+ years. The dock automatically detects drive form factors and provides appropriate power without requiring manual switches or adapters.
Does this docking station support UASP, and what are the benefits?
Yes, the SDOCK4U33 fully supports USB Attached SCSI Protocol (UASP) when connected to a host computer with UASP-compatible USB 3.0 controllers. UASP reduces CPU utilization by up to 80% compared to standard USB mass storage protocol, decreases latency, and can improve sequential transfer speeds by 20-30% with compatible drives. This performance enhancement is particularly noticeable when transferring large files or working with multiple drives simultaneously.
What cooling features does this drive dock include?
The dock incorporates two 40mm cooling fans that actively ventilate the drive chamber, maintaining optimal operating temperatures during extended use. This active cooling prevents thermal throttling that can slow drive performance, extends drive lifespan by reducing heat-related wear, and ensures reliable operation even when all four bays are occupied with high-performance SSDs or 7200 RPM hard drives generating significant heat.
Can I hot-swap drives without turning off the docking station?
Yes, the SDOCK4U33 supports hot-swapping, allowing you to insert or remove drives without powering down the dock or disconnecting it from your computer. Each bay operates independently, so you can change one drive while others continue operating. For safe removal, use your operating system's "eject" or "safely remove hardware" function before physically removing a drive to prevent data corruption.
What warranty and support does StarTech.com provide for this product?
StarTech.com backs the SDOCK4U33 with a 2-year limited warranty covering defects in materials and workmanship. Additionally, the product includes free lifetime 24/5 multilingual technical assistance, available 24 hours a day, 5 days a week via phone, email, or online chat. This support covers setup assistance, compatibility questions, troubleshooting, and general product usage guidance throughout the dock's service life.
