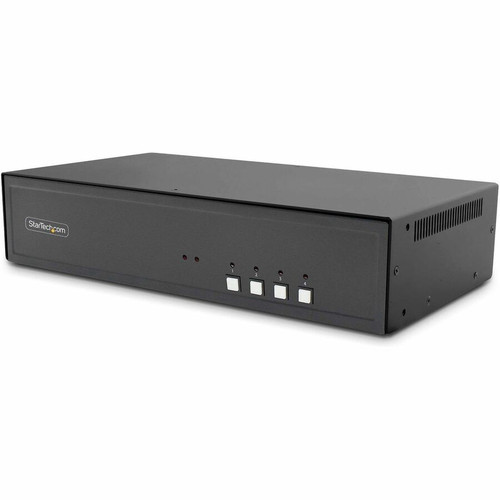

StarTech. com CK4-PM204C Secure Quad-Monitor KVM Switch - 2x DP to 4x HDMI - 4K 30Hz - NIAP 4. 0 - Metal Housing - CAC - Made in USA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Video Conversion & Performance

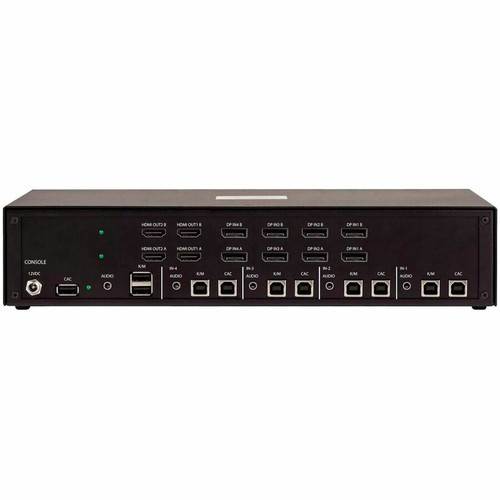

This KVM switch converts two DisplayPort inputs to four HDMI outputs, supporting 4K resolution at 30Hz refresh rates. The 3840 x 2160 maximum resolution ensures clear visual output across all connected monitors while maintaining secure analog signal transmission between isolated systems.
- 2x DisplayPort computer inputs
- 4x HDMI monitor outputs
- 4K resolution at 30Hz
- 3840 x 2160 maximum video resolution
Connectivity Architecture
With 11 USB ports total, the switch provides comprehensive peripheral connectivity while maintaining complete system isolation. The USB 2.0 standard ensures compatibility with keyboards, mice, and other input devices without introducing potential security vulnerabilities through higher-speed data transfer capabilities.
- 11 total USB ports
- USB 2.0 standard
- Wired connectivity technology
- Analog KVM technology
Key Product Advantages
This secure KVM switch provides distinct advantages for organizations requiring both multi-system control and absolute data security. The combination of NIAP certification, tamper protection, and CAC integration creates a comprehensive security solution that exceeds standard KVM functionality.
NIAP PSD 4.0 Certified Security
The NIAP PSD 4.0 certification ensures the switch prevents all data transfer or leakage between connected systems. With no internal memory or storage that could retain or share information, this KVM maintains complete isolation while providing control functionality.
- Prevents data transfer between systems
- No internal memory or storage
- Complete system isolation
- Certified for sensitive/classified data
Tamper Protection System
Anti-tamper switches detect physical intrusion attempts and immediately disable all KVM functionality while triggering visual and audible alerts. The tamper-evident seal provides clear visual indication if the unit has been previously opened, ensuring physical security integrity.
- Anti-tamper switches
- Intrusion detection
- Visual and audible alerts
- Tamper-evident seal
Common Access Card Integration
The dedicated and configurable CAC port passes smart card signals through the KVM to connected systems, enabling secure login without attaching individual card readers to each machine. This centralized approach simplifies secure access management in multi-system environments.
- Dedicated CAC port
- Passes smart card signals
- Centralized secure login
- Configurable for access management
Deployment / Use Cases
The CK4-PM204C Secure KVM Switch is engineered for deployment in environments where both multi-system control and stringent security requirements coexist. Its specific feature set addresses the needs of organizations managing sensitive data across multiple computing platforms.
Government and military installations benefit from the NIAP certification and tamper protection when handling classified information. Financial institutions and healthcare organizations can use the switch to maintain compliance while managing multiple secure workstations from centralized control points.
Secure Control Room Operations
In security operations centers and monitoring facilities, this KVM allows operators to control multiple DisplayPort systems from a single console while maintaining mandatory isolation between networks handling different security classification levels.
- Security operations centers
- Network isolation maintenance
- Multi-system console control
- Classification level separation
Compliance-Driven IT Environments
Organizations subject to regulatory compliance requirements for data isolation can deploy this switch to demonstrate physical separation between systems while maintaining operational efficiency through centralized control of keyboards, mice, and monitors.
- Regulatory compliance environments
- Physical separation demonstration
- Centralized control efficiency
- Data isolation verification
Physical Profile
The desktop form factor measures 12.75 inches in length, 6.70 inches in width, and 2.70 inches in height, providing a substantial footprint that accommodates the extensive port array and security features. The 4.19-pound weight reflects the robust metal housing construction designed for durability in enterprise environments.
The metal housing not only provides physical protection but also contributes to the tamper-resistant design. The desktop placement allows for easy access to all ports and indicators while maintaining a professional appearance in control room and secure workspace settings.
- Width
- 6.70" (170.18 mm)
- Height
- 2.70" (68.58 mm)
- Weight
- 4.19 lb (1900 g)
- Length
- 12.75" (323.80 mm)
What's in the Box
The package includes all components necessary for immediate deployment of the secure KVM switch in your environment.
Highlights
- Controls four DisplayPort computers from one keyboard/mouse to four HDMI monitors
- NIAP PSD 4.0 certified for complete data isolation in high-security environments
- Dedicated Common Access Card port for secure smart card login management
- Tamper protection system with anti-tamper switches and evident seals
- 4K resolution at 30Hz across all connected HDMI monitors
- Metal housing construction for durability and physical security
- Made in the USA with TAA compliance for government procurement
- 11 USB ports with USB 2.0 standard for peripheral connectivity
- Desktop form factor measuring 12.75" x 6.70" x 2.70"
- 3-year limited warranty with RoHS and WEEE environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | CK4-PM204C |
| Brand Name | StarTech.com |
| Product Name | Secure KVM Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| KVM Technology | Analog |
| Connectivity Technology | Wired |
| Number of Computers Supported | 4 |
| Features | LED Indicator,Intrusion Detection,Anti-tamper Switch,Tamper Resistant |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| USB Standard | USB 2.0 |
| USB 2.0 | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 11 |
| Number of HDMI Ports | 4 |
| Number of DisplayPorts | 8 |
| Power Description | |
| Input Voltage Range | 12VDC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 2.70" (68.58 mm) |
| Width | 6.70" (170.18 mm) |
| Length | 12.75" (323.80 mm) |
| Weight (Approximate) | 4.19 lb (1900 g) |
| Miscellaneous | |
| Package Contents | Secure KVM Switch 1x Universal Power Adapter 1x Product Documentation |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does NIAP PSD 4.0 certification mean for this KVM switch?
NIAP PSD 4.0 certification means this KVM switch has been independently tested and validated to prevent all data transfer or leakage between connected systems. It ensures complete isolation with no internal memory or storage that could retain or share information, making it suitable for handling sensitive or classified data in government, military, and high-security enterprise environments.
How many computers and monitors can I connect to this KVM switch?
The CK4-PM204C supports up to four DisplayPort computers as inputs and connects them to four HDMI monitors as outputs. This configuration allows you to control all four computer systems from a single keyboard and mouse while viewing each on its own dedicated monitor, maintaining complete physical separation between the connected devices.
What is the purpose of the Common Access Card (CAC) port on this switch?
The dedicated CAC port passes smart card authentication signals through the KVM to connected systems, enabling secure login without requiring individual card readers on each computer. This allows IT professionals to manage secure access centrally while maintaining the security benefits of smart card authentication across multiple systems in high-security environments.
How does the tamper protection system work on this secure KVM?
The tamper protection system uses anti-tamper switches that detect physical intrusion attempts. If someone tries to open the unit, the switches immediately disable all KVM functionality and trigger both visual and audible alerts. Additionally, a tamper-evident seal provides clear visual indication if the KVM has been previously opened, ensuring physical security integrity is maintained.
What video resolution and refresh rate does this KVM switch support?
This secure KVM switch supports 4K resolution at 30Hz refresh rates, with a maximum video resolution of 3840 x 2160 pixels. The DisplayPort to HDMI conversion maintains this resolution across all four connected monitors, providing clear visual output while preserving the secure analog signal transmission between isolated computer systems.
What power requirements does this KVM switch have and what's included?
The switch requires 12VDC input power and comes with a universal power adapter in the package. The desktop form factor measures 12.75" x 6.70" x 2.70" and weighs 4.19 pounds, with metal housing construction for durability. The package includes the secure KVM switch itself, the universal power adapter, and product documentation for installation and configuration.
