Product Features
Technical Overview

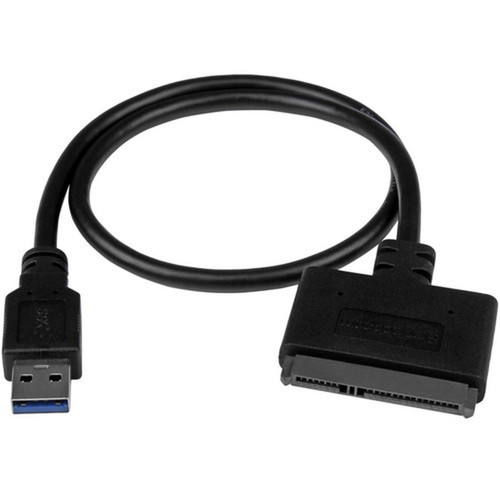

This adapter features a 22-pin SATA 3.0/power connector on one end and a 9-pin USB 3.2 (Gen 2) Type A male connector on the other. The integrated design combines data and power delivery through a single USB connection, eliminating the need for separate power adapters when used with 2.5" drives.
The implementation of USB Attached SCSI Protocol (UASP) support enhances performance by reducing latency and CPU utilization compared to traditional USB Bulk-Only Transfer (BOT). This results in faster file transfers and improved system responsiveness during drive operations.
This section brings together practical product details such as Connector on First End Details, Connector on Second End Details, Color Family, Product Color, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This adapter delivers immediate access to 2.5" SATA drives without requiring internal installation or complex setup procedures. The cable format provides exceptional portability while maintaining full functionality across different computing environments.
Instant Drive Access

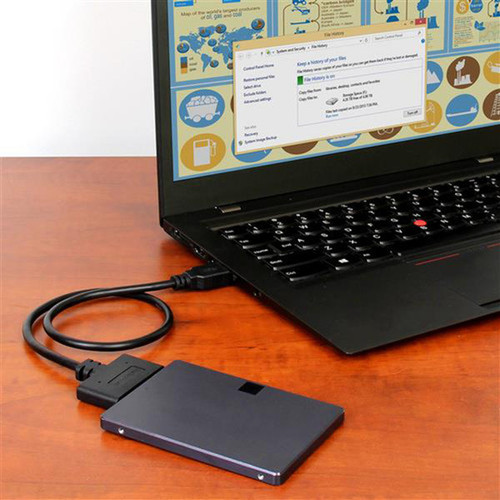

Connect any 2.5" SATA SSD or HDD directly to your computer's USB port for immediate file access, data recovery, or drive testing applications.
- No drive enclosure required
- Compatible with SATA I, II, and III
- Works with both SSDs and HDDs
Enhanced Performance
USB 3.1 Gen 2 with UASP support delivers faster data transfer speeds compared to standard USB 3.0 implementations, reducing wait times during file operations.
- 10Gbps maximum throughput
- Reduced CPU utilization
- Lower latency for improved responsiveness
Deployment / Use Cases
The USB312SAT3CB adapter serves multiple practical applications in IT environments, data recovery scenarios, and everyday computing tasks. Its compact design and USB-powered operation make it particularly valuable for mobile technicians and users who need to access drives across different systems.
Common deployment scenarios include temporary external storage expansion, drive cloning and migration, data recovery from failed systems, drive testing and diagnostics, and quick file transfers between systems. The adapter's compatibility with both SSDs and HDDs ensures it remains useful across various storage technologies.
IT Support and Diagnostics
Technicians can quickly connect customer drives to diagnostic systems without opening computer cases or installing drives internally.
Data Migration and Backup
Transfer files between old and new drives or create temporary backups without requiring network transfers or additional hardware.
Physical Profile
The adapter features a black plastic construction that provides durability while maintaining a lightweight profile at just 1.10 ounces. The cable-style design offers flexibility in positioning and storage, easily fitting into laptop bags or toolkits for on-the-go use. The compact form factor ensures minimal desk space consumption when in use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.10 oz (31.18 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.10 oz (31.18 g)
What's in the Box
The package includes everything needed to begin using the adapter immediately with your 2.5" SATA drives.
Highlights
- Connects 2.5" SATA SSD/HDD drives directly to USB ports
- USB 3.1 Gen 2 (10Gbps) with UASP support for fast transfers
- Compatible with SATA I, II, and III drives up to 6Gbps
- USB-powered operation requires no external power adapter
- Plug-and-play functionality with no drivers needed
- Compact cable design for maximum portability
- Black plastic construction with durable build quality
- Includes quick start guide for immediate setup
- Backed by 2-year limited warranty
- EU RoHS compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USB312SAT3CB |
| Brand Name | StarTech.com |
| Product Name | USB 3.1 (10Gbps) Adapter Cable for 2.5" SATA SSD/HDD Drives |
| Packaged Quantity | 1 Each |
| Product Type | Data Transfer Adapter |
| Technical Information | |
| Connector on First End Details | 1 x 22-pin SATA 3.0/Power |

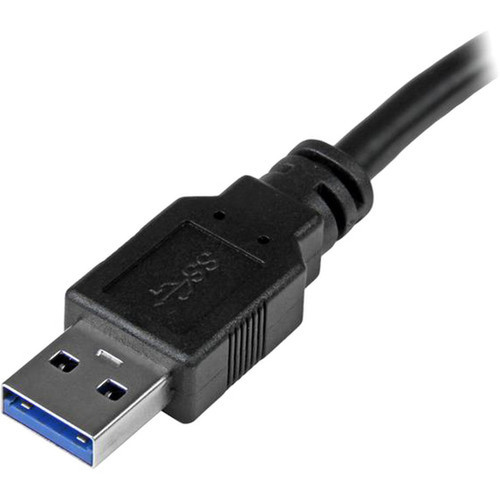

| Connector on Second End Details | 1 x 9-pin USB 3.2 (Gen 2) Type A - Male |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic |
| Weight (Approximate) | 1.10 oz (31.18 g) |
| Miscellaneous | |
| Package Contents | USB 3.1 Gen 2 (10Gbps) Adapter Cable for 2.5" SATA SSD/HDD Drives 1 x Quick Start Guide |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What types of drives are compatible with this USB to SATA adapter?
The USB312SAT3CB adapter is specifically designed for 2.5" SATA SSD and HDD drives. It supports SATA I, II, and III interfaces with data transfer rates up to 6Gbps from the drive side. The adapter does not support 3.5" drives, which require additional power. For 3.5" drive compatibility, StarTech.com offers the USB312SAT3 model.
What is the maximum data transfer speed this adapter supports?
This adapter supports USB 3.1 Gen 2 with a maximum theoretical throughput of 10Gbps when connected to compatible host systems. The actual transfer speed will depend on both the connected drive's capabilities and the host computer's USB controller. The adapter also implements UASP (USB Attached SCSI Protocol) to reduce latency and improve performance compared to standard USB transfer protocols.
Does this adapter require external power or drivers to work?
No external power adapter is required for 2.5" drives, as the adapter draws power directly from the USB port. The adapter is plug-and-play and does not require additional driver installation on most modern operating systems, including Windows, macOS, and Linux distributions with USB 3.x support. The quick start guide provides basic setup instructions.
What is UASP and how does it benefit data transfer?
UASP (USB Attached SCSI Protocol) is an advanced transfer protocol that improves performance over traditional USB Bulk-Only Transfer (BOT). UASP reduces latency by allowing multiple commands to be processed simultaneously rather than sequentially, decreases CPU utilization during transfers, and can increase real-world transfer speeds by up to 70% compared to BOT implementations with compatible host systems.
What warranty coverage does this product include?
StarTech.com provides a 2-year limited warranty for the USB312SAT3CB adapter. This warranty covers defects in materials and workmanship under normal use. The product also complies with EU RoHS (Restriction of Hazardous Substances) regulations, REACH chemical regulations, and WEEE (Waste Electrical and Electronic Equipment) directives for environmental safety.
How portable is this adapter for mobile use?
Weighing just 1.10 ounces (31.18 grams) with a flexible cable design, this adapter is highly portable and easily fits in laptop bags, toolkits, or even pockets. The USB-powered operation means no separate power brick is needed, making it ideal for technicians, IT professionals, or users who need to access drives across different locations. The black plastic construction provides durability for regular mobile use.
What refresh rate or brightness details are available?
Display-oriented products are best judged through screen, connectivity, and installation specifications. Those facts help buyers confirm visual fit, mounting flexibility, and deployment suitability more clearly than generic summary text.
What input or connectivity options are listed?
1 x 9-pin USB 3.2 (Gen 2) Type A - Male.
