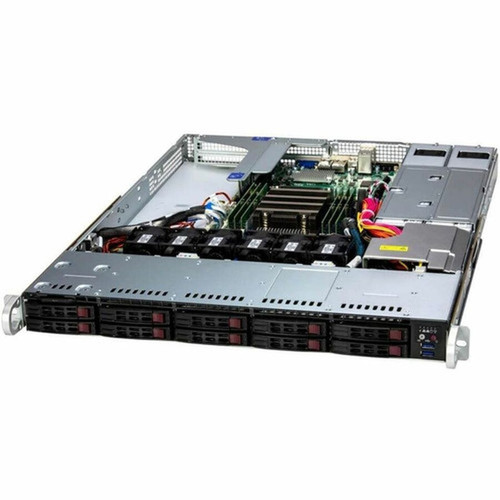

Supermicro A Plus Series Rackmount Barebone System Socket LGA-4844 Single Processor Ready Rack-mountable Support Server Chip AMD X AS-1115SV-WTNRT
SKU:
AS-1115SV-WTNRT
(No reviews)
Write a Review
Write a Review
Supermicro
Supermicro A Plus Series Rackmount Barebone System Socket LGA-4844 Single Processor Ready Rack-mountable Support Server Chip AMD X AS-1115SV-WTNRT
MSRP:
$3,158.95
$2,895.26
$2,816.95
Save:
$342.00 (11.81%)
Warranty Information:
3 Year
Condition:
New
Width:
43.69
(cm)
Height:
4.32
(cm)
Depth:
59.69
(cm)
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
[custom-highlights][/custom-highlights]
Additional-pdf1
Additional-pdf2
- A+ Server AS -1115SV-WTNRT Barebone System
- 1 x Super H13SVW-NT Motherboard
- 1 x 1U Chassis
- 1 x 1U 10-port backplane, 10x SAS3/SATA3/NVME5 for X13 CloudDC
- 1 x 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
- 1 x MCIO X8/STR+pTab to SlimSAS X4/STR+pTab,27CM,32AWG,RoHS
- 1 x (MCIO x8 to 2 SlimSAS x4), STR, 43cm, 85Ohm, RoHS,RoHS
- 1 x FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
- 2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
- 6 x 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
- 1 x Universal Thermal sensor kit with 80cm I2C cable
- 1 x Front control board with two USB 3.0 for SC116/SC119X
- 2 x 1U redundant 800/860W Titanium AC power supply 54.5x40x322mm
- 1 x SC113 Redundant Power Distributor Cover
- 1 x 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
- 1 x 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoHS
- 1 x License key for enabling OOB BIOS management
- 1 x 1U Passive CPU Heat Sink for AMD Socket SP6 Processors
- 1 x Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
- 10 x Black gen 3rd hot-swap 2.5inch HDD tray
- 1 x 1U WIO rear window to support top-load riser bracket for SC815B,SC116B
- 1 x 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
- 1 x Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
- 1 x Outer rail set, quick-release type, 25.6
- 1 x Inner rail set, front, short, quick-release type
- 1 x Inner rail set, extension, long (quick) for 1U 17.2W chassis
- 1 x Air block for 1U WIO SC116B with X13SEW
- 24 x Plastic pin for 40x28, 40x56 fan
- 1 x Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116
- 2 x Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Number of Processors Supported: 1
Processor Socket: Socket SP6 LGA-4844
Processor Supported: EPYC
64-bit Processing: Yes
Chipset Manufacturer: AMD
Maximum Memory Supported: 576 GB
Memory Technology: DDR5 SDRAM
Memory Standard: DDR5-4800/PC5-38400
Total Number of Memory Slots: 6
Controller Type: NVMe,Serial ATA
Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet
Number of Total Expansion Bays: 10
Total Number of Expansion Slots: 3
Number of PCI Express x16 Slots: 3
Number of M.2 Interfaces: 2
Total Number of USB Ports: 6
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 3
Number of VGA Ports: 1
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 860 W
Thermal Design Power: 225 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.20" (436.88 mm)
Depth: 23.50" (596.90 mm)
Weight (Approximate): 21 lb (9525.44 g)
Package Contents:
Limited Warranty: 3 Year
- Compatible EPYC processor enables fast and efficient execution of computational tasks
- With DDR5 SDRAM memory technology, experience faster data transfer rates and enhanced overall system performance
- Rack-mountable server barebone system offers easy installation and convenient access for streamlined maintenance
- NVMe interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Gigabit Ethernet is highly efficient for large file transfers, making it ideal for backups and heavy data workflows
- Featuring 6 USB ports to connect USB-compatible devices for enhanced flexibility and convenience
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | AS1115SVWTNRT |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | A+ Server |
| Product Model | 1115SV-WTNRT |
| Product Name | A+ Server AS -1115SV-WTNRT Barebone System |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket SP6 LGA-4844 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 576 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 6 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Total Number of Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 860 W |
| Thermal Design Power | 225 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 23.50" (596.90 mm) |
| Weight (Approximate) | 21 lb (9525.44 g) |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Supermicro Bezel Panel - Black - 1U Rack Height |
| SKU | MCP-210-11601-0B |
| Sale Price | $25.71 |
| Product | Supermicro Mounting Rail for Chassis - 1 |
| SKU | MCP-290-00102-0N |
| Sale Price | $79.76 |
| Product | Supermicro RSC-W-66G5 Riser Card - 2.0 x PCI Express 5.0 x16 - PCI Express 5.0 - Left Side - 1U Chasis |
| SKU | RSC-W-66G5 |
| Sale Price | $84.30 |
| Product | Supermicro Mounting Bracket for Mounting Rail, Rack |
| SKU | MCp-290-00016-0N |
| Sale Price | $20.37 |
| Product | Supermicro Standard Power Cord - For Server Chassis - 120 V AC - 6 ft (1.83 m) Cord Length - NEMA 5-15P / IEC 60320 C13 - United States - 1 |
| SKU | CBL-PWCD-0160-IS |
| Sale Price | $16.82 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
