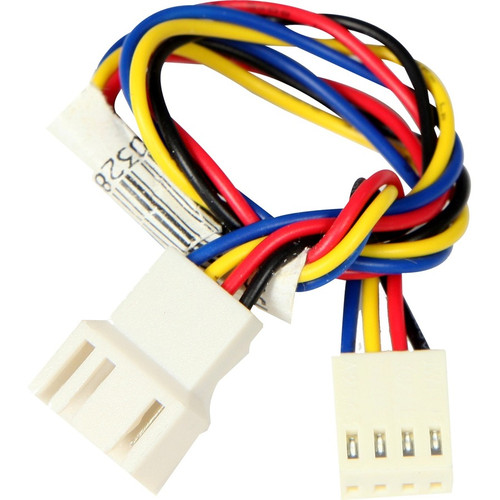

Supermicro CBL-0296L Fan Power Cable - 9" Cord Length - 4-Pin Male to Female - CPU Fan Extension
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This power extension cord features a 4-pin male connector on one end and a 4-pin female connector on the other, supporting the full pinout necessary for CPU fan operation including power, ground, tachometer, and PWM control lines. The 9-inch cord length provides adequate reach for typical chassis layouts while minimizing excess cable clutter.
The cable is specifically validated for compatibility with listed Supermicro systems, ensuring electrical and mechanical compatibility with motherboard fan headers and fan connectors. Its construction meets the power delivery requirements for standard CPU cooling fans, maintaining stable voltage and signal integrity across the extension.
This section brings together practical product details such as First End Connector Detail, Second End Connector Detail, Device Supported, Cord Length, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This cable addresses common installation challenges in server and workstation builds where fan placement may require additional reach beyond standard cable lengths. By providing a verified compatible extension, it eliminates guesswork and ensures reliable cooling system operation.
Verified Compatibility
Tested and validated for specific Supermicro systems including SYS-1025W-URB, 1015B-3, 1015B-3B, and 1025C-3B models, ensuring proper fit and function.
- Eliminates compatibility concerns
- Maintains system warranty compliance
Full Signal Support
Carries all four pins required for complete fan functionality: 12V power, ground, tachometer feedback, and PWM speed control signals.
- Preserves fan speed control
- Maintains system monitoring capabilities
Optimized Length
The 9-inch cord provides sufficient extension for most chassis layouts while preventing excessive cable slack that can impede airflow or interfere with components.
- Clean cable management
- Maintains optimal airflow paths
Deployment / Use Cases
This cable is primarily deployed in Supermicro server and workstation environments where CPU fan placement requires additional reach beyond the standard fan cable length. Common scenarios include larger chassis configurations, custom cooling solutions, or replacement scenarios where the original fan cable is damaged or insufficient.
IT professionals and system integrators utilize this cable when building, upgrading, or maintaining Supermicro systems to ensure proper cooling system connectivity. It serves as a reliable solution for extending fan power without resorting to improvised wiring that could compromise system stability or void warranties.
Server Builds and Upgrades
Essential for system integrators assembling Supermicro servers where fan placement may not align directly with motherboard headers, requiring controlled extension for optimal cable routing.
- Custom server configurations
- Cooling system upgrades
Maintenance and Repair
Provides a direct replacement for damaged or missing fan cables in supported Supermicro systems, restoring proper cooling functionality with OEM-compatible components.
- Field service repairs
- Component replacement
Highlights
- 9-inch power extension cable for CPU fan connections
- 4-pin male to 4-pin female connector configuration
- Supports full PWM fan control and monitoring signals
- Compatible with Supermicro SYS-1025W-URB systems
- Also works with 1015B-3, 1015B-3B, and 1025C-3B models
- Maintains proper voltage delivery for fan operation
- Enables flexible fan placement in chassis layouts
- Provides reliable extension without signal degradation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CBL-0296L |
| Brand Name | Supermicro |
| Product Name | Fan Power Cable |
| Packaged Quantity | 1 |
| Product Type | Power Extension Cord |
| Technical Information | |
| First End Connector Detail | 1 x 4-pin Male |
| Second End Connector Detail | 1 x 4-pin Female |
| Device Supported | CPU Fan |
| Physical Characteristics | |
| Cord Length | 9" |
| Miscellaneous | |
| Compatibility | Super Micro Computer Systems: SYS-1025W-URB 1015B-3 1015B-3B 1025C-3B |
FAQ
What systems is this fan power cable compatible with?
This cable is specifically validated for Super Micro Computer Systems including the SYS-1025W-URB, 1015B-3, 1015B-3B, and 1025C-3B models. It is designed to work with the fan headers and connectors on these systems, ensuring proper electrical and mechanical compatibility for CPU fan extensions.
What type of connectors does this cable have?
The cable features a 4-pin male connector on one end and a 4-pin female connector on the other end. This configuration allows it to extend between a motherboard fan header (male end) and a CPU fan connector (female end), maintaining the standard fan interface with all four pins for power, ground, tachometer, and PWM control.
How long is the cord on this fan power cable?
The cord measures 9 inches in length, providing sufficient extension for typical server and workstation chassis layouts. This length allows for flexible fan placement while minimizing excess cable that could impede airflow or complicate cable management within the system enclosure.
Does this cable support PWM fan speed control?
Yes, the cable supports full PWM (Pulse Width Modulation) fan control. All four pins are connected through the extension, maintaining the power, ground, tachometer feedback, and PWM control signals necessary for motherboard-based fan speed regulation and monitoring in compatible systems.
What is the primary use case for this power cable?
The primary use is extending CPU fan connections in Supermicro server and workstation systems where the standard fan cable length is insufficient. This occurs in larger chassis configurations, custom cooling setups, or when replacing damaged original cables, providing a validated extension solution that maintains proper fan operation.
Is this cable a standard accessory or replacement part?
This cable functions as both a system building accessory and a replacement component. It can be used in new system builds where additional fan reach is needed, or as a direct replacement for damaged or missing fan cables in supported Supermicro systems, restoring proper cooling connectivity with OEM-compatible specifications.
