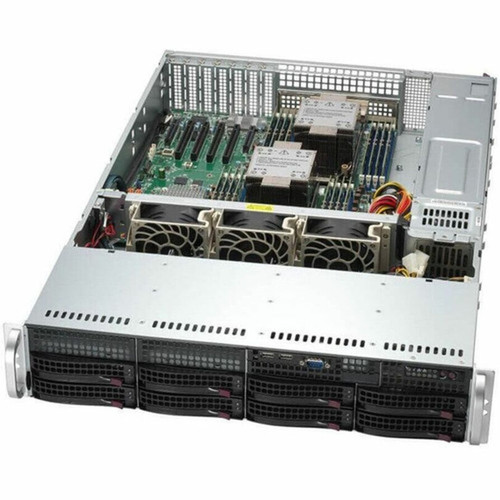

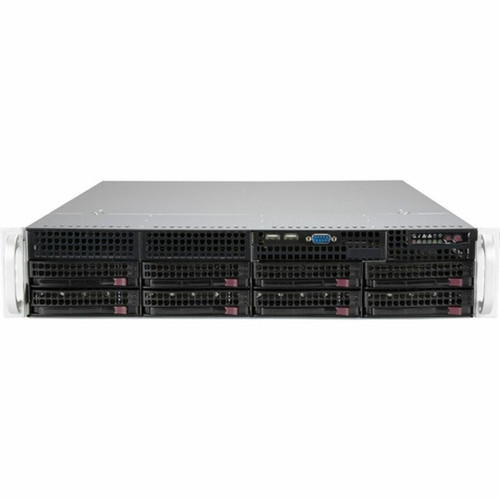

Supermicro Rack SuperServer Barebone Chassis Socket LGA-4677 Dual Processor Support Intel Ready Rack-mountable Server System X SYS-621P-TR

Number of Processors Supported: 2

Processor Socket: Socket LGA-4677

Processor Supported: Xeon Gold,Xeon Silver,Xeon Bronze,Xeon Platinum

64-bit Processing: Yes

Chipset Manufacturer: Intel

Chipset Model: C741

Maximum Memory Supported: 4 TB

Memory Technology: DDR5 SDRAM

Memory Standard: DDR5-5600/PC5-44800

Total Number of Memory Slots: 16

Controller Type: NVMe,Serial ATA/600

Ethernet Technology: Gigabit Ethernet

Number of Total Expansion Bays: 8

Number of 3.5" Bays: 8

Total Number of Expansion Slots: 6

Number of PCI Express x8 Slots: 2

Number of PCI Express x16 Slots: 4

Number of M.2 Interfaces: 2

Total Number of USB Ports: 6

Number of USB 3.0 Ports: 4

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 1

Number of VGA Ports: 1

Input Voltage: 120 V AC,230 V AC

Number of Power Supplies Installed: 2

Maximum Power Supply Wattage: 1.20 kW

Thermal Design Power: 300 W

Color Family: Black

Product Color: Black

Form Factor: Rack-mountable

Rack Height: 2U

Height: 3.50" (88.90 mm)

Width: 17.20" (436.88 mm)

Depth: 25.50" (647.70 mm)

Weight (Approximate): 36.38 lb (16501.69 g)

Package Contents:

• Mainstream SuperServer SYS-621P-TR
• 1 x Super X13DEI Motherboard
• 1 x 2U Chassis
• 1 x 8-Port Hybrid Backplane for 4xSAS4/SATA3 and 4xHybrid Device
• 1 x I2C,1x4F,PH2.5 to PH1.25,48cm,26AWG,RoHS
• 1 x Slimline x8 (STR) to 2x Slimline x4 (STR),60/60CM,100 O
• 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
• 2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
• 3 x PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,20CM,22AWG,5A/PIN,RoHS
• 1 x Black USB/COM port tray for SC825, 836
• 1 x Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
• 8 x Black gen 5.5 hot-swap 3.5" HDD tray
• 2 x Black fixed 3.5 HDD tray or FDD dummy tray
• 1 x 826B/216B rear dummy cover for 2 X 2.5
• 1 x STD I/O shield for X13 server MB with venting holes
• 1 x 621P-TR(T) Quick Reference Guide
• 1 x License key for enabling OOB BIOS management
• 2 x 2U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
• 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
• 1 x SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
• 3 x 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
• 1 x Front control board Dual color LED(FP836-D)forSC823M,825,825
• 1 x 216B/826B LP rear window,RoHS/REACH,PBF
• 1 x Black DVD dummy cover for SC825, 836
• 1 x Rail set, quick/quick, default for 2,3U 17.2"W
• 1 x Threaded rail adapter default for round hole rack
• 1 x SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 1 Year

Additional Warranty Information:

Supermicro provides a three-year warranty for labor and one-year warranty for parts.
