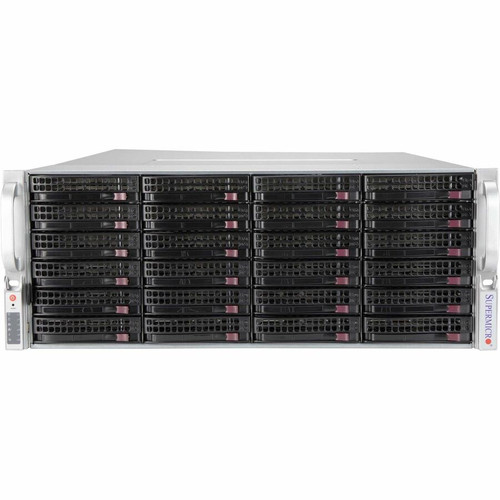

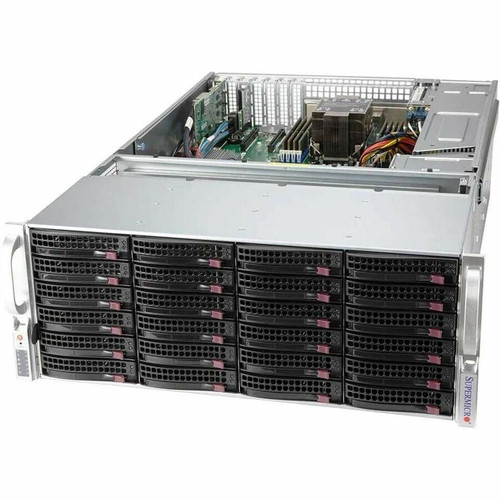

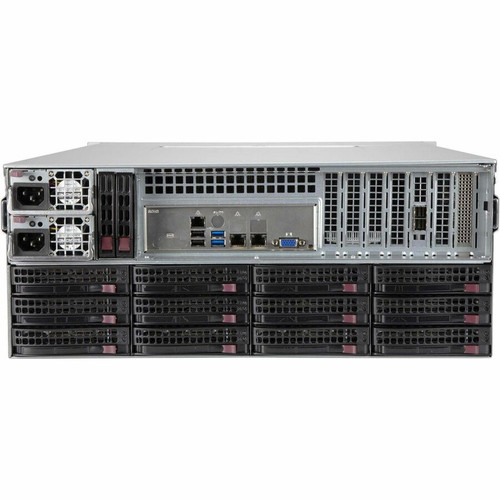

Supermicro SSG-540P-E1CTR36L Server Barebone System - 4U Rack-mountable - Socket LGA-4189 - 1 x Processor Support - Intel C621A Chip - (SSG-540P-E1CTR36L)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- UP Storage SuperServer SSG-540P-E1CTR36L
- 1 x Super X12SPI-TF Motherboard
- 1 x 4U Chassis
- 1 x 8C5:C29 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R
- 1 x 8-port Mini SAS HD Int-to-Ext Cable Adapter W/LP Bracket
- 1 x12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
- 1 x 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
- 4 x 9" 4 PIN FAN PWS EXTENSION CORD, PBF
- 1 x 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1
- 1 x Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
- 4 x Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s
- Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI]
- 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
- 2 x US POWER CORD 16AWG, PB FREE
- 7 x PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,37CM,22AWG,5A/pin,RoHS
- 1 x Standard I/O Shield for X12SPi with EMI Gasket
- 1 x 540P-E1CTR36L/H Quick Reference Guide
- 1 x License key for enabling OOB BIOS management
- 1 x 2U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
- 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
- 1 x 24pin standard output with 5V high current 100Amp power distributor board for SC847
- 7 x 80x80x38 mm, 13.5K RPM, Optional Middle Cooling Fan for 2U Ultra Series Servers (Hot-swappable Version of FAN-0162L4)
- 1 x Chassis transfer board for SC826
- 36 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x SC847B LP MB Tray assembly,HF,RoHS/REACH
- 1 x Rail set, quick/quick, default for 4U 17.2" W
- 1 x set Rail screw bag
- 1 x SC84
Limited Warranty: 1 Year
Additional Warranty Information: Supermicro provides a three-year warranty for labor and one-year warranty for parts.
Number of Processors Supported: 1
Processor Socket: Socket LGA-4189
Processor Supported: Xeon Gold,Xeon Silver,Xeon Bronze,Xeon Platinum
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C621A
Maximum Memory Supported: 2 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Total Number of Memory Slots: 8
Intel Optane Memory Ready: Yes
Controller Type: NVMe,Serial ATA/600,12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Ethernet Technology: 10 Gigabit Ethernet
Number of Total Expansion Bays: 36
Number of 3.5" Bays: 36
Total Number of Expansion Slots: 4
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 2
Number of M.2 Interfaces: 1
Total Number of USB Ports: 9
Number of USB 3.2 Gen 1 Ports: 3
Number of Onboard USB 2.0 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 3
Number of VGA Ports: 1
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 1.20 kW
Thermal Design Power: 270 W
Color Family: Black
Product Color: Black
Form Factor: Rack-mountable
Rack Height: 4U
Height: 7" (177.80 mm)
Width: 17.20" (436.88 mm)
Depth: 27.50" (698.50 mm)
Weight (Approximate): 66.50 lb (30163.89 g)
Package Contents:
- Compatible Xeon Gold processor enables fast and efficient execution of computational tasks
- With NVMe interface, experience high-speed data transfer and robust reliability for optimized system performance
- Rack-mountable server barebone system maximizes space utilization while providing easy access to essential components
- Can connect up to 9 USB peripherals for versatile and productive device integration
- 10 Gigabit Ethernet optimizes network performance, ensuring rapid data transfer for enterprise and high-speed environments
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SSG-540P-E1CTR36L |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | SSG-540P-E1CTR36L |
| Product Name | UP Storage SuperServer SSG-540P-E1CTR36L |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket LGA-4189 |
| Processor Supported | Xeon Gold,Xeon Silver,Xeon Bronze,Xeon Platinum |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 8 |
| Intel Optane Memory Ready | Yes |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600,12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 36 |
| Number of 3.5" Bays | 36 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Number of M.2 Interfaces | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of Onboard USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1.20 kW |
| Thermal Design Power | 270 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 7" (177.80 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 27.50" (698.50 mm) |
| Weight (Approximate) | 66.50 lb (30163.89 g) |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Supermicro provides a three-year warranty for labor and one-year warranty for parts. |
